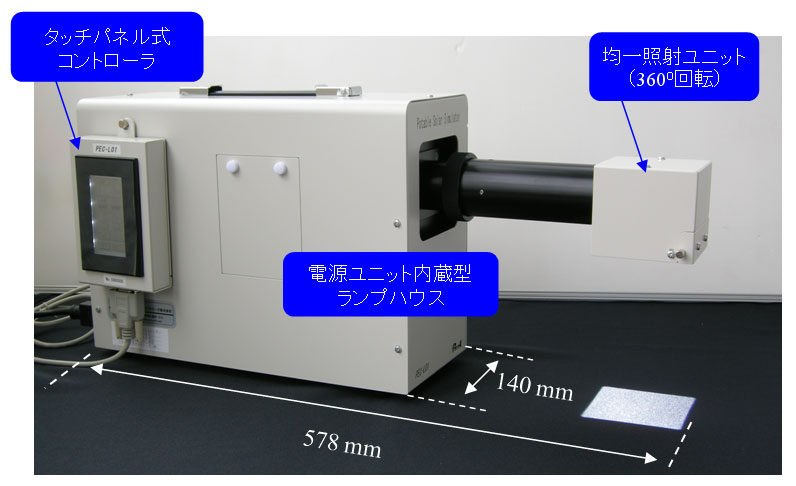

Portable Solar Simulator PEC-L01

Features

- A Light weight,Compact,Handy type solar simulator is achieved by a unique optical arrangement.
- Effective Illumination area: 40×40(mm)
- Spectral match: ≤ ±25% (JIS C 8912 Class A)
- Uniformity: ≤ ±2% (JIS C 8912 Class A)
- Temporal Stability: ≤ ±1% (JIS C 8912 Class A)
- Irradiance: 100 mW/cm2

- Small foot-print Lamp House with considering Usability and Safety
- Easily set a input power voltage 100-120V and 200-240V by a switch
- Easily change a setting of  the equipment, such as a lamp current, shutter timer by the touch panel controller.
- An Illumination head is freely rotatable in 360°
- Optical Filters can be set in the illumination head by a very easily way.
- A double shell housing provides lower surf ace temperatures than 45°C.
- A thermostat controller avoiding heat is equipped.
- A main body consists of  a lamp unit and a power unit in a one-body.
