- PEC-S20 is equipment for measuring action spectra or incident photon-to-current efficiency of solar cells, especially for dye-sensitized solar cells with an active area of less than 1 cm2 .

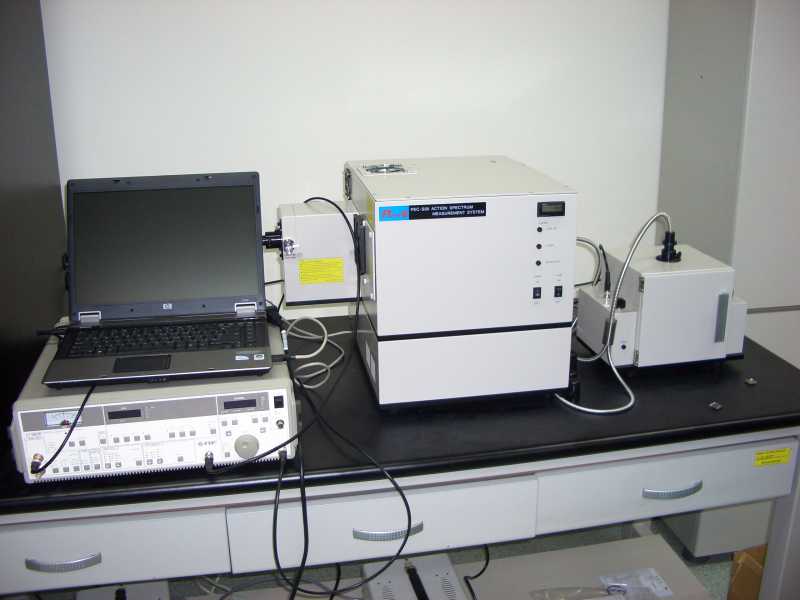

- All-in-one type main body needs only a very setting area (D 60 cm and W 80 cm), which means that it is possible to be set on a usual laboratory desk.
- PEC-S20 has a 150-W XE lamp as a light source. Monochromatic lights from a monochromator are irradiated to a sample through an optical fiber with an irradiation area of 3 mm in diameter.
- The irradiance at 480 nm is higher than 2 mW. This comparably high irradiance is suitable for measuring IPCE spectra of dye-sensitized solar cells.
- The software, PEC-Pro, can show a corrected spectrum on real-time when measuring. The photocurrent density of solar cells under the standard solar spectrum (AM1.5G – 100 mW cm-2) is automatically calculated from IPCE spectra and showed.
Main unit | |
Dimension | W355 x D408 x H441 mm |
Measurement mode | DC mode (default) |
Certifiable wavelength range | 400 nm - 800 nm (default) |
Available wavelength range | 300 nm - 1000 nm |
Intensity of monochromatic light | ca. 2 mW at 480 nm (default) |
Wavelength purity | ca. 30 nm (default) |
Light source | 150 W XE lamp (ozone less type) |
Monochromator | |
Optics system | Conversion to spectral sensitivity, quantum efficiency and Jsc, spectral calculation |
Focal length | 100 mm |
Focal ratio | F=3.0 |
Diffraction grating | 600 lines/mm, Blaze Wavelength 500nm (default) |
Incident slit | W2×H3.5 mm, fixed slit |
Optical fiber | |
Fiber type | bundled fiber (SUS) |
Fiber length | 1 m |
Exit diameter | ID 3 mm, ED 5 mm |
Folder | detachable folder |
Sample chamber | |
Dimension | W300×H218×D200 mm |
IV amp | selectable (x1, x10, x100, x1k) |
Output voltage | 10 V |
Calibrated reference photodiode | |
Si photodiode | S1337-1010BQ (with calibrated spectral sensitivity data) |
Software for operation and analysis | |
Software | PEC-PRO |
Wavelength control | step scanning |
Filter control | auto |
Interface | USB |
Data analyzing | conversion to spectral sensitivity, quantum efficiency and Jsc, spectral calculation |
