B-395 Pro Encapsulator

B-395 Pro Encapsulator

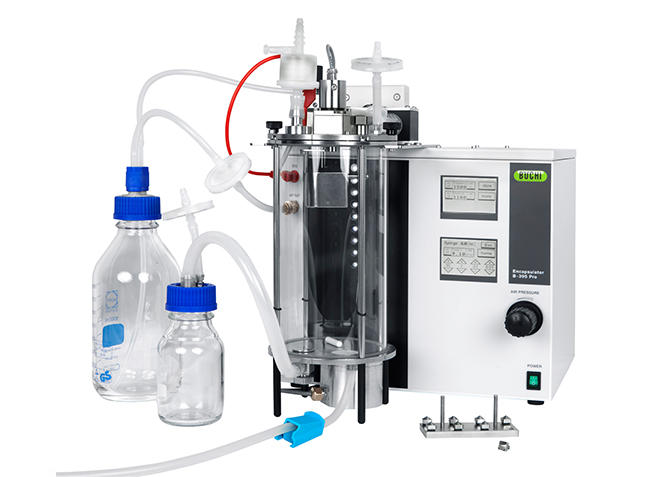

A quality product for the sterile encapsulation of cells, biological and active ingredients for laboratory-scale research and development work. The highly advanced technology enables particle production for numerous biotechnology and medical processes and other fields that require sterile conditions.
Pricing & Availability Download Catalogue Buchi
Brand: Buchi
Contact Us for better pricing. Warranty Details

Aseptic

  • Sterile encapsulation of cells, microorganisms and active ingredients
  • Aseptic introduction and removal of fluids and products to and from the reaction vessel
  • Possibility of integration in a GMP-compliant production process

Reliable

  • Efficient, reproducible encapsulation process under low-impact process conditions
  • Exceptionally tight particle size distribution
  • High encapsulation efficiency and yield

User-friendly

  • Intuitive to operate and easy to maintain
  • Quick and easy process optimization thanks to visualization of droplet formation
  • The BUCHI application database and BUCHI application support help you get the most out of working with the Encapsulator B-395 Pro

Syringe pump

Easily calibrated syringe pump for low-loss feed of small sample quantities using sterile syringes of various volumes.

Material certificates

The reaction vessel for the Encapsulator B-395 Pro is available with material certificates for GMP documentation

Concentric nozzle system

Concentric nozzle system for creating core-shell capsules (dia. 200 – 2000 µm).

Air dripping nozzle

Nozzle system with airstream dispersal and minimized dead space, tailor-made for low-impact encapsulation of cell agglomerates.



Specification :
Power consumption max. 150 W
Connection voltage 100 - 240 VAC
Frequency 50/60 Hz
Nozzle diameter of single nozzles 0.08, 0.12, 0.15, 0.20, 0.30, 0.45, 0.75 and 1.00 mm
Nozzle diameter of shell nozzles 0.20, 0.30, 0.40, 0.50, 0.60, 0.70 and 0.90 mm
Droplet size range 0.15 - 2.00 mm
Vibration frequency 40 - 6,000 Hz
Electrode tension 250 - 2,500 V
Syringe pump rate 0.01 - 50 mL/min
Pump rate by air pressure 0.5 - 200 mL/min
Maximal allowed air pressure in the system 1.5 bar
Reactor gross volume 4.5 L
Reactor working volume 2 L
Pollution degree 2
Dimensions (W x H x D) 32 × 38 × 48 cm
Weight 11 kg
