Laboratory Essentials
Hotplate Stirrer

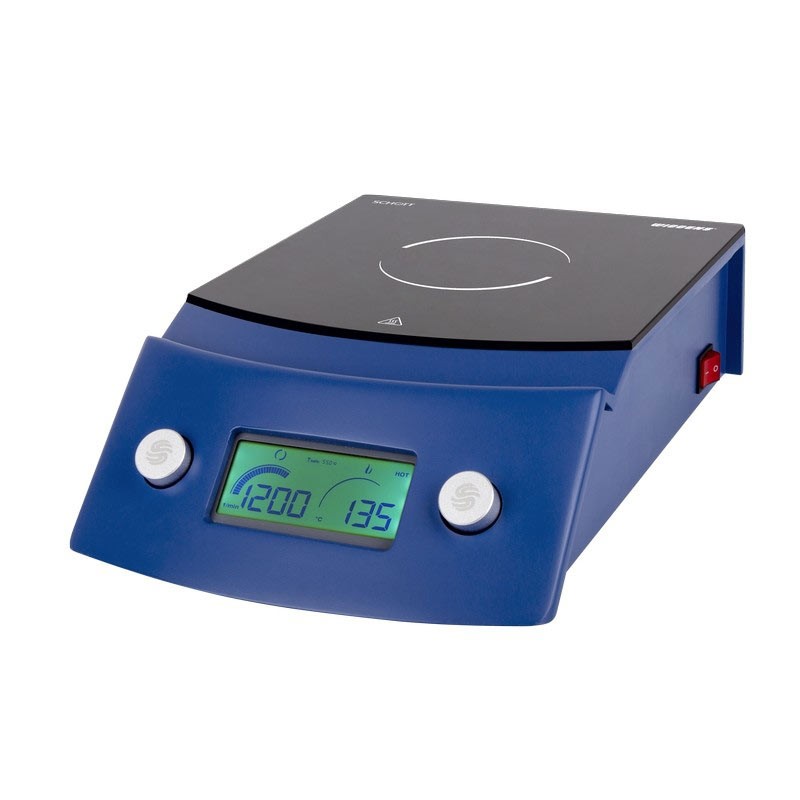

WH390 Digital Infrared Hot Plates / Stirrers
Max. Hot Plate Temperature 550°C Speed Range :100~1500rpm
Brand: Wiggens
Contact Us for better pricing.
Warranty Details
Stirring, heating and controlling using the WH390
- Corrosion-resistant Ceramic Glass top plate
- Excellent transmittance of the infrared light
- The top plate can resist up to 700°C thermal shocks
- Hermetically sealed, corrosion-resistant, solid casing
- Fast heating and excellent temperature stability
- External control by the connection of a Pt100 temperature sensor
- A high-temperature indicator warns the user and prevents burning injuries
Specification :
| Maximum temperature setting [°C] | 550 |
| Maximum temperature setting with E-sensor [°C] | 300 |
| Safety temperature [°C ] | 50~600 adjustable |
| High temperature protection [°C] | 10~50 adjustable |
| Temperature stability with E-sensor [°C ] | ±1 |
| Heat output [W] | 1800 |
| External temperature sensor | Pt100 |
| PID parameter | 3 sets |
| Speed setting range [rpm] | 100~1500 |
| Stirring quantity max [L / H2O] | 30L |
| Temperature and Speed display | LCD display |
| Time setting | 1~1999min / continuous |
| Top plate material | Ceramic glass |
| Top plate dimensions [mm] | 280×280 |
| Heating zone [mm] | Ø190 |
| Dimensions W x D x H [mm] | 450X290X120 |
| Weight [kg] | 4.1 |
