Laboratory Essentials
Filtration Manifold
V300A Filtration Collocation
Basic Filtration Design

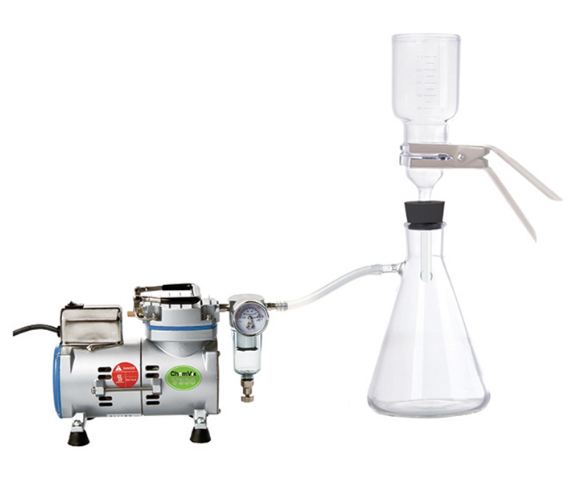

The ChemVak V300A is an economic set designed for basic vacuum filtration purposes. The set entails an oil-free piston pump, a VF6 filtration glass set, filter membranes, and a high-pressure resistant silicon tube.
Environmental Friendly and Maintenance Free
The ChemVak V series uses the piston-movement technique for vacuum creation, and thus does not need any oil for lubrication. Therefore, oil change and pollution both are not an issue.
Low Noise, Low Vibration
The ChemVak vacuum pumps use direct motor transmission, so that no belt is needed. In addition, other devices to lower noise and vibration can be provided in order to guarantee a silent operation.
Air Supply Filtration Applicable
All ChemVak vacuum pumps employ a filter element at the inlet, which can filter out dust and moisture. Thus, the inlet can be kept uncontaminated, which enhances the longevity of the vacuum pump.
V300A Product Application
Water quality measurement
Normal liquids filtration
| Flow Rate of the Pump (L/min) | 17 |
| Ultimate Vacuum (mbar) | 150 |
| Filtration Glass Set | VF6 |
| Suction Bottle Capacity (mL) | 1000 |
| Filter Diameter (mm) | 47/50 |
| Filter Flask Capacity (mL) (Filter Flask Material) | 300(Glass Filter Cup) |
| Effective Filtration Area (cm2) | 9.6 |
| Outlet (mm) | 8 |
