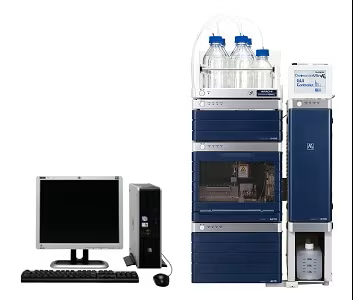

Ultra-High Performance Liquid Chromatograph ChromasterUltra Rs

High Resolution

The newly developed LaChromUltra II column is the longest UHPLC column at 250 mm in length. When used together with the reduced volume system ChromasterUltra Rs, it produces an exceptional high-separation performance. The combination of this column and the ChromasterUltra Rs enables system pressure tolerance of 140 MPa with 50,000 or more theoretical plates per column.

High Sensitivity

A total-reflection capillary flow cell is incorporated into the diode array detector to answer to the increasing need for high-sensitivity analysis of hazardous substances, genotoxic impurities, etc. A high-sensitivity flow cell with an optical path length of 65 mm is also available. In addition to the capability of high-sensitivity analysis, carryover is reduced through the use of a double-corkscrew mixer.

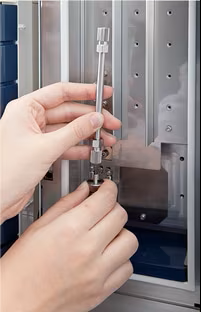

High-sensitivity total-reflection capillary flow cell

The diode array detector (DAD) exhibits low noise and low drift, achieved through the use of a new optical system providing optimal conditions for high-sensitivity analysis. The optional high-sensitivity flow cell (optical path length of 65 mm) further enhances sensitivity; about a tenfold increase is obtained compared with our previous model (LaChromUltra), thus enabling high-sensitivity applications including impurities from side reactions, genotoxic impurities, etc.

The acquisition of impurity profiles during all stages of synthesis and in raw materials used in medicines and chemicals, intermediate byproducts, and finished drugs are examples of useful applications.

Double-corkscrew mixer

The binary pump is equipped with the latest design in microfluidic double-corkscrew mixers.
An efficient mixing is attained even for a low volume, resulting in a baseline that is extremely stable during gradient analysis, enabling higher-sensitivity analysis.
