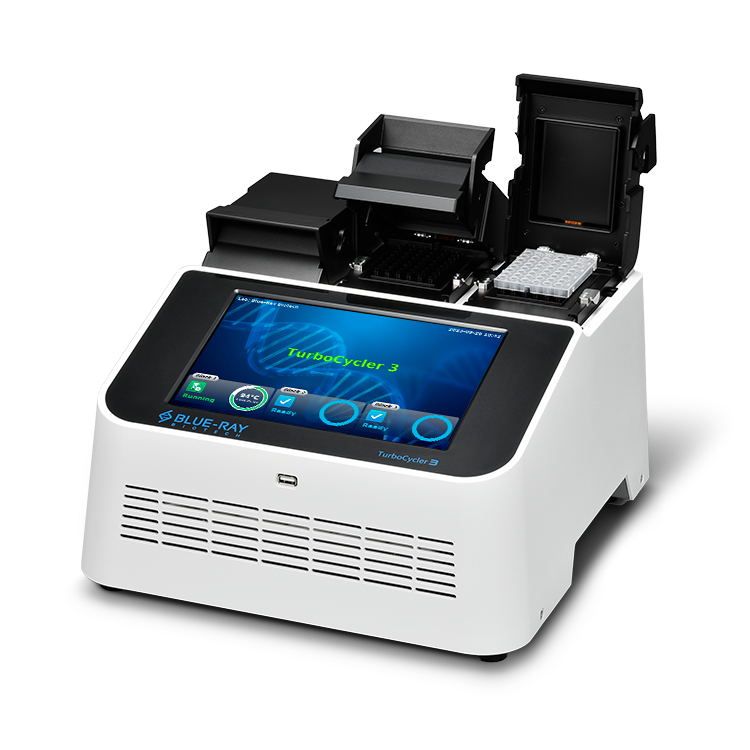

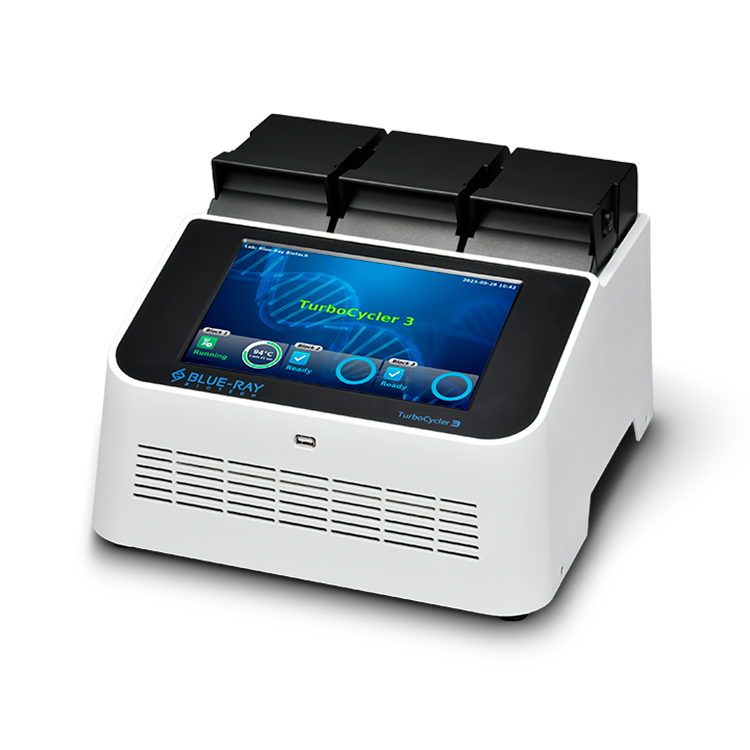

TurboCycler 3 stands out as the ultimate high-throughput PCR thermal cycler in its class. It has unrivaled flexibility and the capacity to run three distinct PCR protocols at the same time while handling 3 x 48 samples. Fast gradient optimization and advanced ramp rate control are perfectly tailored to meet specific assay requirements. These features unite to turbocharge your productivity and efficiency.
Triple-Block Flexibility
Three distinct PCR protocols can be run at the same time, perfect for multi-user environments and diverse experiments with low samples.
High-Throughput Efficiency
Maximize throughput with up to 3 x 48 x 0.1/0.2 ml samples.
Fast Gradient Optimization
PCR conditions across the three independent blocks are easily adjusted and range from 30 to 100 °C with a maximum span of 30 °C.
Advanced Ramp Rate Control
Ramp rate can be adjusted from 0.1 to 5.0 °C/sec, to accommodate different assays including CRISPR-related experiments.
Intuitive Operation
Effortless programming on a large 10.1” color touch screen with a user-friendly interface.
Continuous Reliability: Zero Downtime
Each of the three independent block modules can be independently calibrated to ensure uninterrupted operation during maintenance.
Specification :
Sample Block 3 x 48 Well, Gradient Block
Compatible with 0.2 ml or 0.1 ml PCR tube, strip, non-skirted, and semi-skirted 48-well plate
Block Temperature Range
4.0 - 100 °C
Max. Heating / Cooling Rate
5.0 °C/sec / 3.0 °C/sec
Temperature Accuracy
+/- 0.3 °C
Temperature Uniformity
+/- 0.4 °C
Adjustable Ramp Rate
Yes, 0.1 - 5.0 °C/sec
Gradient Direction
Vertical across the block
Gradient Temperature Range
30 - 100 °C
Gradient Temperature Difference
Max. span 30 °C
Heater Lid Temperature Setting Range
35 - 120 °C or off
Heater Lid Temperature Accuracy
+/- 1.0 °C
Display
10.1” color LCD with capacitive touch panel
Data Port
1 USB Type-A front port for USB flash drive
Auto restart after Power Outage
Yes
Footprint Dimensions (H x W x D
240 mm x 340 mm x 340 mm
Weight
13 kg
Power Supply
AC 100 - 240 V, 50/60 Hz, 1000 W
Certification
CE
Software
Save and transfer to another TurboCycler via USB flash drive
Stored Program No.
> 4000 sets
Registered User Folder No.
100 sets, Password Protected Folder
Run Status Report
Yes, HTML output and transfer via USB flash drive
Real-time Temp. Profile Export
Yes, CSV output and transfer via USB flash drive
Tools
Tm calculator, Copy number convertor, Master mix preparation wizard
