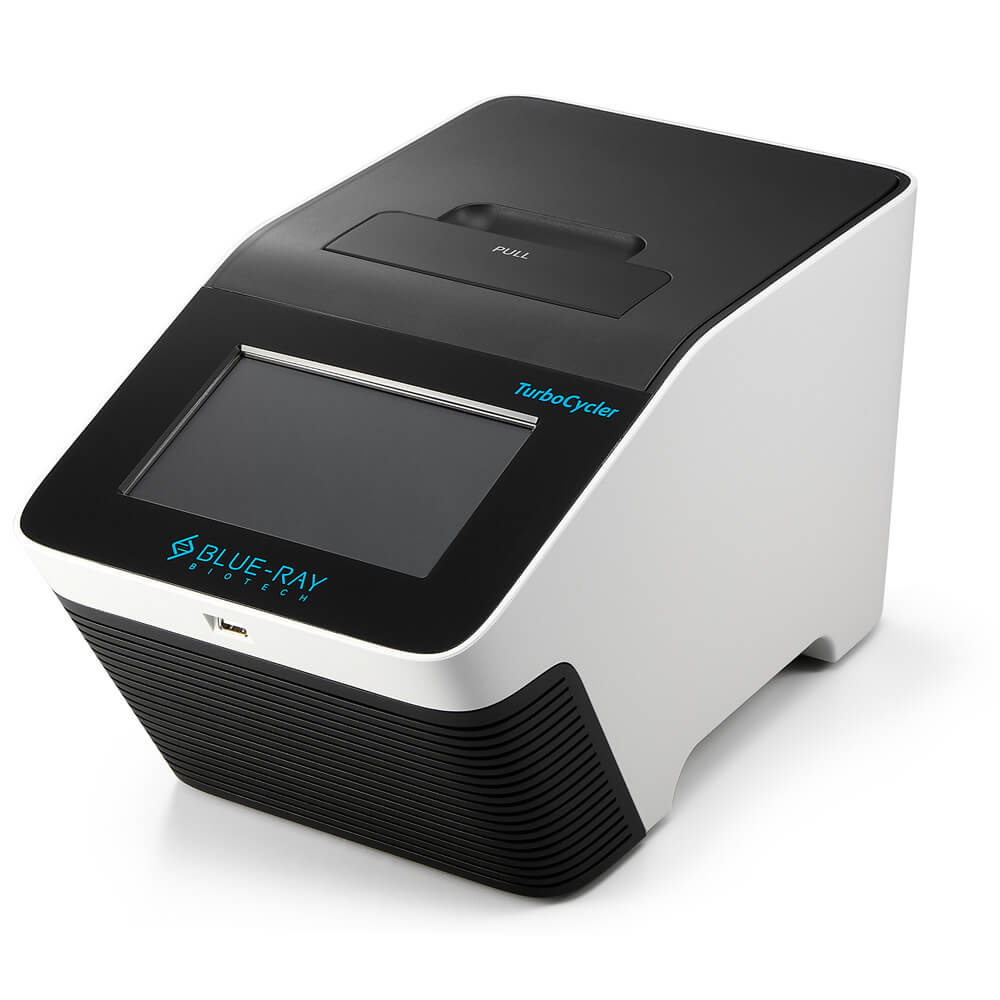

TurboCycler - Thermal Cycler
The TurboCycler is an intuitive, rapid and precise thermal Cycler for PCR. With 7”capacitive touchscreen and easy-to-use software, it’s equipped for enhancing PCR efficiency. The optional Wi-Fi module enables you to monitor the working status anytime, anywhere.
Intuitive
High transparency, sensitive capacitive touchscreen, enables easy operation even with laboratory gloves on.
Easy to understand, graphic-rich user interface, just plug, power on and go!
User-friendly spinning wheel interface for temperature, time and cycle number adjustment.
Built-in tools for Tm calculation, copy number conversion and mastermix preparation.
The optional WiFi module allows you to monitor your experiment remotely.
Performance
Fast heating rate up to 5.5 °C/sec and excellent temperature accuracy and uniformity.
12-segment gradient across the block for fast experiment optimization.
Reliable
Proven Peltier technologies for trouble-free heating / cooling performance.
By using the multi-probe temperature acquisition system (TAS) in the production and the QC process, we can assure the block ramping accuracy and temperature
Stylish
With ergonomic design for friendly operation.
Compact
Front and back venting allows for side-by-side placement of TurboCycler, save your precious bench top space.
| Sample Block | - |
| 96 well, Gradient Block | Compatible with regular profile or low profile 0.2 ml PCR tube, strip, none-skirted, semi-skirted and full-skirted 96-well plate |
| Block Temperature | - |
| Block Temperature Range | 4.0 to 99.9 °C |
| Max. Heating Rate ( °C/sec.) | 5.5 |
| Max. Cooling Rate ( °C/sec.) | 3.3 |
| Temperature Accuracy | +/- 0.3 °C |
| Temperature Uniformity Across Block | +/- 0.3 °C |
| Adjustable Ramping and Cooling Rate | Yes, low /high |
| Gradient Temperature | - |
| Gradient Direction | Horizontal across the block |
| Gradient Temperature | Range 30 ~ 99 °C |
| Gradient Temperature | Difference Max. span 24 °C |
| Software | - |
| Portability of Protocols | Save and transfer to computer or additional cycler via USBflash drive |
| Stored Program No. | > 500 sets |
| Registered User Folder No. | 100 sets |
| User Folder Password Protection | Yes |
| Run Status Report | Yes, TXT output and transfer via USB flash drive |
| Real-time Temp. Profile Export | Yes, CSV output and transfer via USB flash drive |
| Tools | TM calculator, Copy number calculator, Mastermix preparation calculator |
| General | - |
| Display | 7” color LCD with touch panel |
| Data Ports | 1 USB A front port for USB flash drive |
| Heated Lid | Yes, fixed 105 °C, 120 °C and off |
| Auto Restart after Power Outage | Yes |
| Remote Motoring via WiFi | Optional |
| Footprint Dimensions | (H x W x D) 225 mm x 245 mm x 415 mm |
| Weight | 10 kg |
| Power Supply | VAC 100-240, 50/60 Hz, 700 W |
| Standard | CE IVD, RoHS |
