Thin Film Evaporation

Thin Film Evaporator

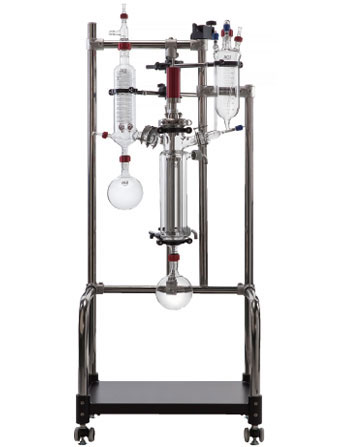

Thin Film Evaporator

Highly suitable for liquids that are sensitive to heat, viscous or having high molecular weight. Thin Film Evaporator allows for distillation, separation, concentration etc.
Pricing & Availability Download Catalogue Asahi
Brand: Asahi
Contact Us for better pricing. Warranty Details

Features:

  • Minimum Thermal Decomposition. Suitable for lab-scale processes in a variety of industries such as chemical, food, pharmaceuticals, cosmetics, and aromatics etc.
  • High Evaporation Efficiency.

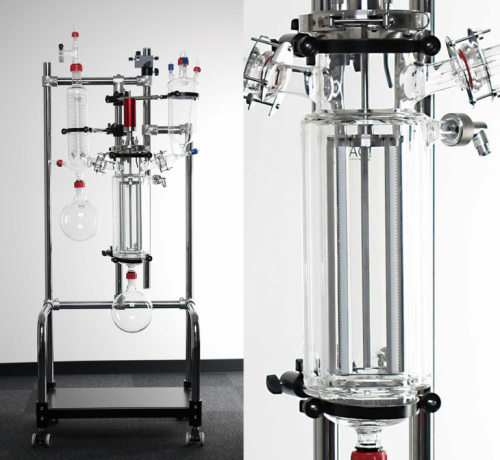

  • Uniform Rotating Wiper System. The thin film is formed by the centrifugal force for shorter residence time.
  • Uniform Thin Film. The uniform liquid film is created on the heating surface via the use of glass tube.
  • Process Visibility. The main body of the evaporator is made of Borosilicate glass 3.3.
  • Greaseless Valve and Joints. No contamination and easy installation.
  • Grease-less Magnetic Sealed Bearing. Gas & vacuum tight consistent torque throughout entire temperature range. Easy cleaning and maintenance.
  • Maximum Jacket Temperature. Temperature range up to +230 Deg C. It is also upgradable up to + 300 Deg C when changed wiper, gasket and o-rings.
  • Easy connection to auxiliary equipments.The system can be easily connected to overhead stirrer, thermostat and vacuum pump.



Specification :
Evaporation Surface Area 0.05 m² (DN60), 0.1 m² (DN100)
Max. Temperature +200 °C (Jacket), +300 °C (Jacket) is also available. [PTFE Wiper : +200 °C, PBI* Wiper : +300 °C]
Operating Pressure Atmospheric pressure to +0.1 mbar
Operating Jacket Pressure Up to +0.5 bar G (+0.05 MPa)
Feed rate 0.1 to 1.5 kg/h (DN60), 0.3 to 3.0 kg/h (DN100)
Max. viscosity at operating temperature 1,000 mPa•s (Custom-made)
Max. Rotation Speed 400 rpm
Stirrer Seal Magnetic Stirrer
Notes: All parts that come into contact with fluid are either Borosilicate 3.3, glass, PTFE or SS316. * PBI = Polybenzimidazole. * This system does not include overhead stirrer, circulator and chiller.
