Planetary Mixer

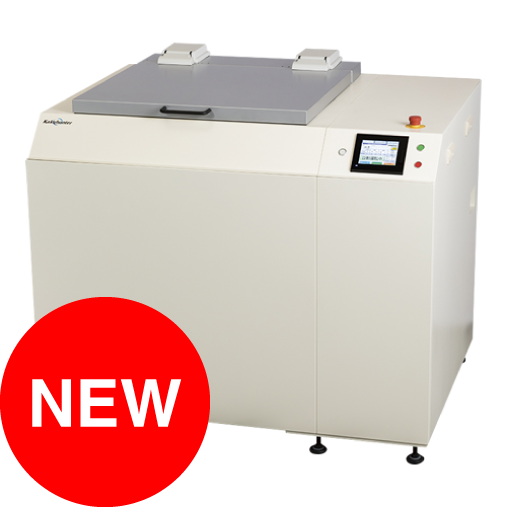

SK-4000T/SK-4000TV Planetary Centrifugal Mixer
Planetary Centrifugal Mixer for Mass Production.
Brand: Kakuhunter
Contact Us for better pricing.
Warranty Details
New released mass production model 10kg for non vacuum or vacuum type up to customer's requirement.
- Revolution/Rotation individually speed can be controlled. (Rotation: 0-1.0 times speed changeable)
- Max 10kg gross weight (5Kg x 2) throughput mass production model.
- Customize model which 4,000ml standard container as well as specific container can be correspond.
For more info kindly visit http://www.kakuhunter.com/en/
Specification :
| Type | SK-4000T Standard type |
| Type | SK-4000TV Vacuum equipped type |
| Container | 4000ml HDPE container or SUS container |
| Max capacity | 5kg(Including container) x 2 cups |
| Revolution speed | 120 - 600 rpm, 9 levels |
| Rotation speed | 0 -1.0 times against Rev speed, 10 levels |
| Setup time | 10 -300 sec (10 decimal sec) |
| Step mode | 1- 5 Step |
| Memory Channel | Fixed CH: 10CH User settable CH: 90CH |
| Power source | Three phase 200 -240V, 50/60Hz |
| Electric consumption | Max 15KVA |
| Outer dimension | SK-4000T = W1,330×D1,010×H1,120 mm |
| Outer dimension | SK-4000TV = W1,330×D1,010×H1,120 mm (Vacuum pump excluded) |
| Weight | Approx. 700kg |
