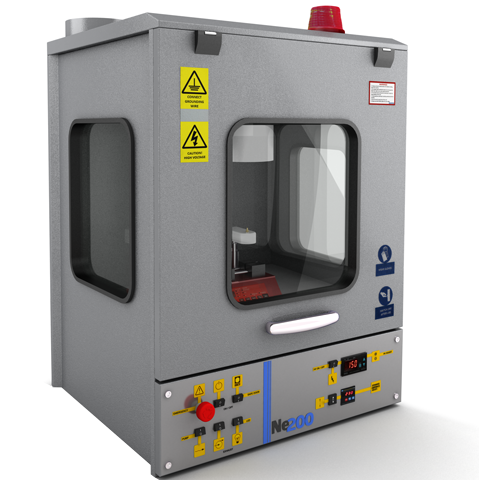

Single-Nozzle Electrospinning System NE200
Advanced single-nozzle electrospinning system for material research.
Brand: Inovenso
Contact Us for better pricing.
Warranty Details
The NE200 lab scale electrospinning unit is the basic electrospinning unit for universities and R&D companies. It is aimed at simple nanofiber production for basic or beginner research.
Optional Accessories for Ne200
• Changeable collectors
• Co-Axial nozzle system
• Heat controlled chamber
• Humidity controlled chamber
• Camera integrated chamber
• Atmosphere controlled tube
• Heating collector
• Vacuum holder collector
Specification :
| General Description | |
| Model | NE200 |
| Description | Single nozzle electrospinning unit |
| Spinning Type | Bottom-up spinning |
| Construction | |
| Chassis | Electrostatic Painted(RAL7031+RAL7024) Sheet Metal |
| Feeding Area Material | PE 1000(High Density, Chemical resistant) |
| Collector Material | 7000 Series Aluminium Alloy |
| Windows | 4 mm Transparent Glass |
| Total Weight | <110kg(3880 oz) |
| Dimensions | 560mm (22.0”) x 540mm (21.3”) x 900mm (35.4”) |
| High Voltage Power Supplier | |
| Voltage Range | 0- 40 kV |
| Voltage Precision | 100V |
| Voltage Display | LED Screen |
| Max Current | 0.75 mA |
| High Precision Micro Pump | |
| Flow Rate | 0.01-1000ml/h |
| Flow Rate Precision | 0.01ml/h |
| Flow Rate and Volume Display | LED |
| Available Syringes | Standard 1, 5, 10, 20 and 50ml |
| Feeding Area | |
| Number of Nozzles | 1pcs |
| Nozzle Material | Electrically conductive brass |
| Nozzle Inner Diameter | 0.8 mm (0.31”) |
| Minimum Required Solution for Single Nozzle Feeding | 1ml |
| Collecting Area | |
| Collection Type | Changeable plate collectors (Round plate D130, two parallel rods, two opposite rods, four cross rods, 3D aligned fiber apparatus, yarn apparatus collectors) |
| Flat Plate Material | Aluminium |
| Spinning Distance | |
| Distance Between Nozzle and Collector | 30mm(1.18”) - 230mm(9.06”) |
| Distance Adjustment Precision | 1mm |
| Distance Adjustment Method | Linear Actuator |
| Distance Adjustment Speed | Constant / 6.6mm/sec(0.26 inch/ sec) |
| Distance Indicator | Digital |
