Laboratory Essentials
Liquid Transfer Pump

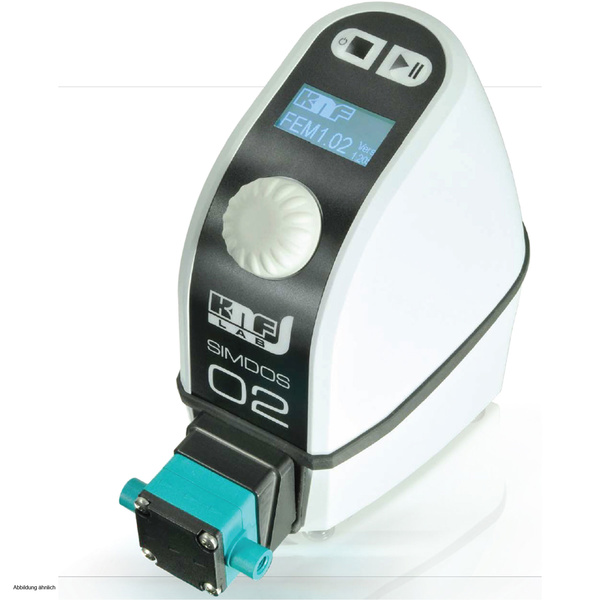

SIMDOS 02 Diaphragm Liquid Transferring Pump
The chemically-resistant diaphragm pumps are the ideal solution to transfer liquids accurately and reliably. With a repeatability of ±1%, this is true for small volumes, too. The pump head is available in PP, PVDF and PTFE. The valve material is FFKM, the diaphragm is PTFE covered.
Brand: KNF
Contact Us for better pricing.
Warranty Details
- Simple and intuitive operation
- Easy calibration
- Cycle mode
- Adaptable to fluid characteristics
- Self priming, can run dry
- Analog and impulse control (RC)
- Splashproof IP65, small footprint
Specification :
| Flow rate | 30 µl/min - 20 ml/min |
| Dosing volume | 30 µl - 999 ml |
| Suction height | 2 mWg |
| Max. pressure | 6 bar |
| Main supply | 100-240 V / 50-60 Hz |
| Ambient temperature allowed | +5 to +40 °C |
| Liquid temperature allowed | +5 to +80 °C |
| Maximum viscosity allowed | 150 cSt |
| Accuracy | +/-2% (nominal value) |
| Repeatability | +/-1% |
| Power consumption | 10 W |
| Protection class | IP65 |
| Dimensions | 140 x 87 x 130 mm |
| Weight | 0.9 kg |
| Hydraulic connection | UNF 1/4"-28 |
