Short Path Evaporation

Short Path Evaporator

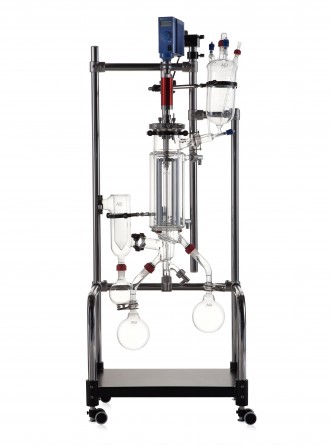

Short Path Evaporator

For heat sensitive, high boiling point products, and high molecular weight materials! This apparatus can provide uniform thin-film.
Pricing & Availability Download Catalogue Asahi
Brand: Asahi
Contact Us for better pricing. Warranty Details

Features:

  • Minimum Thermal Decomposition. Suitable for lab-scale processes in a variety of industries such as chemical, food, pharmaceuticals, cosmetics, and aromatics etc.This is because of:
  • Evaporator short residence time

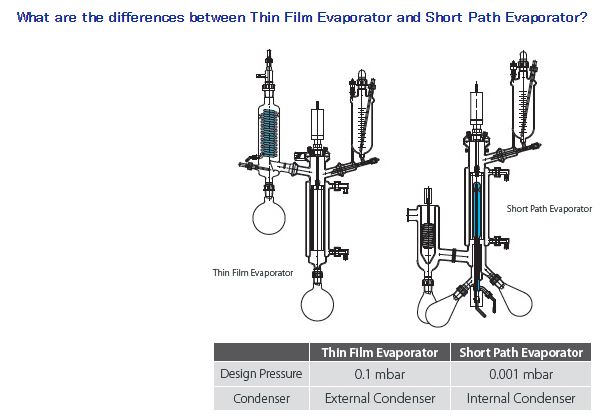

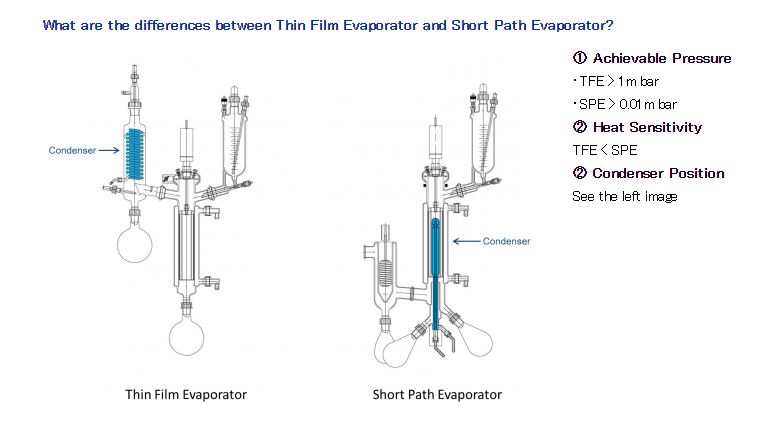

  • Minimum pressure drop due to closely positioned internal condenser
  • High vacuum distillation
  • High Evaporation Efficiency
  • Uniform Rotating Wiper System. Thin film formation through centrifugal force in combination with condenser location allows for a short residence time of the sample being processed.
  • Uniform Thin Film. A uniform liquid film is created on the heating surface thanks to the glass tube

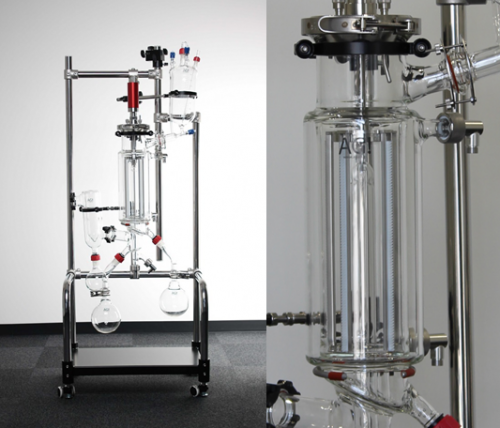

  • Monitor the Process Visually. The main body of the evaporator is made of Borosilicate glass 3.3.
  • Grease-less Valves and Joints. No contamination and easy installation.
  • Grease-less Magnetic Sealed Bearing. Consistent torque throughout entire temperature range. Easy cleaning and maintenance.
  • Maximum Jacket Temperature. Temperature range up to +230 Deg C and it is upgradable up to + 300 Deg C  with changed wiper, gasket and o-rings.
  • Easy connection to auxiliary equipments. The system can be easily connected to overhead stirrer, thermostat and vacuum pump.
Specification :
Evaporation Surface Area 0.05 m² (DN60), 0.1m² (DN100)
Max. Temperature +200 °C (Jacket), +300 °C (Jacket) is also available. [ PTFE Wiper : +200 °C, PBI* Wiper : +300 °C]
Operating Pressure Atm to +0.001 mbar
Operating Jacket Pressure Up to +0.5 bar G (+0.05 MPa)

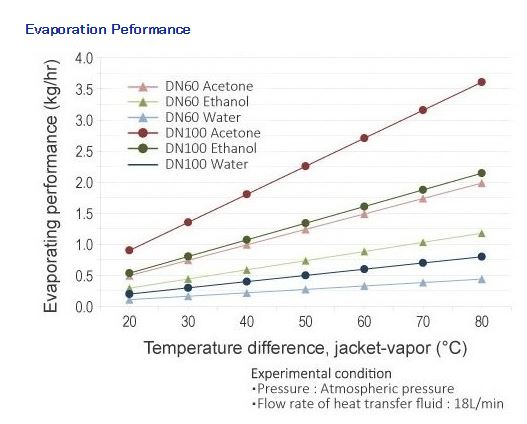

Feed rate 0.1 to 1.5 kg/h (DN60), 0.3 to 3.0 kg/h (DN100)
Max. viscosity at operating temperature 1,000 mPa•s (Custom-made)
Max. Rotation Speed 400 rpm
Stirrer Seal Magnetic Stirrer
Notes All parts that come into contact with fluid are either Borosilicate 3.3, glass, PTFE or SS316. * PBI = Polybenzimidazole. * This system does not include overhead stirrer, circulator and chiller.
