Analytical Science
Rheometer
RM 200 TOUCH CP4000 Cone-plate Rheometer with automated gap
Make your rheological measurement easily with automated gap control combined with Peltier temperature control or electric heating, the RM200 TOUCH CP4000 rheometer guarantees reproducibility and ergonomics for all your rheological measurements in cone-plan control, development or production.
Brand: Lamy Rheology
Contact Us for better pricing.
Warranty Details
RM 200 touch rheometer coupling with cp 4000 cone-plate help to optimize your rheological research.

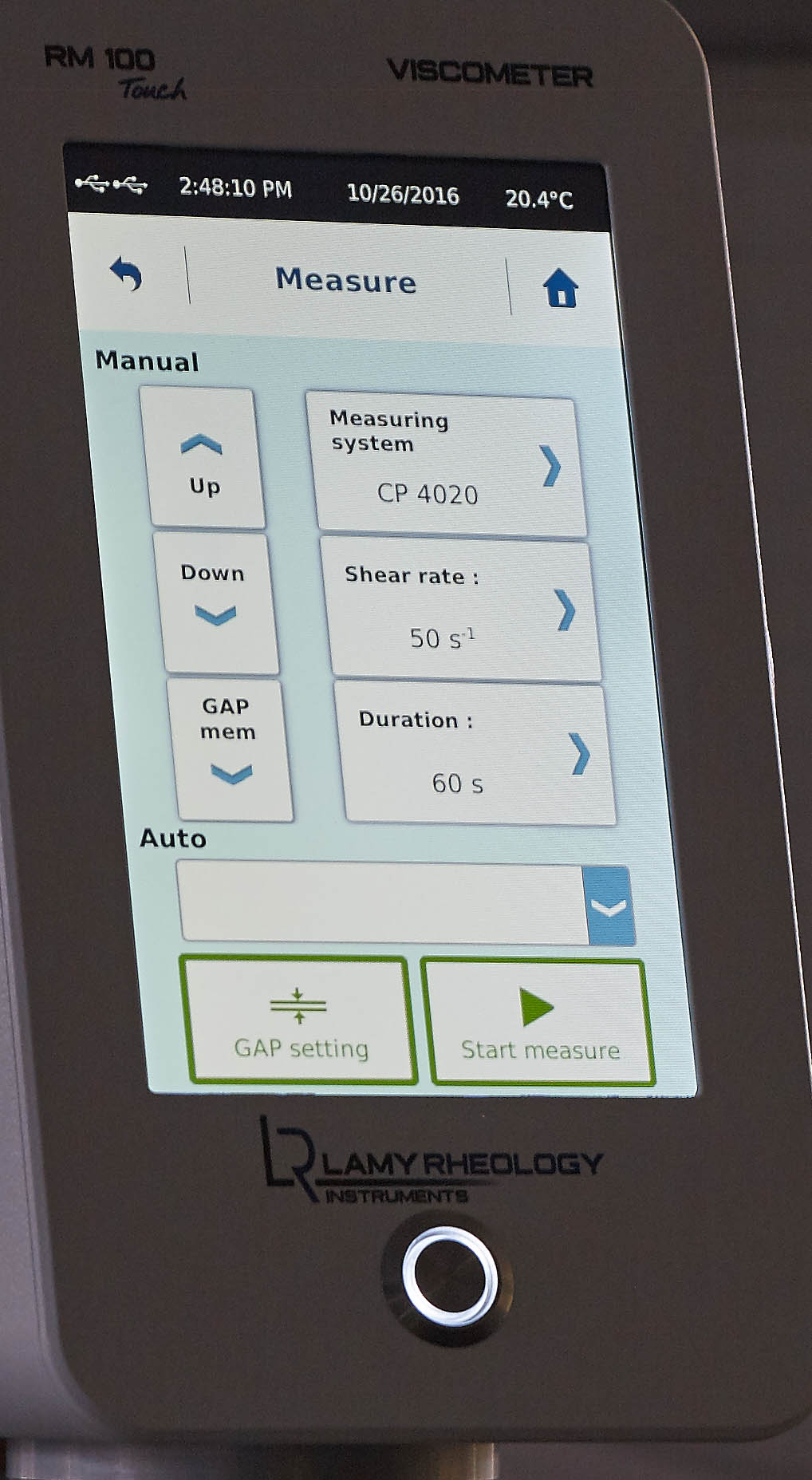

RM 200 TOUCH CP 4000 enables one automated gap adjustement for cones and plates you are using with.
Able to obtain one optimal accuracy due to the temperature adjustment at 0,1°C.
RM 200 touch cp 4000 owns one ac 265 coupling heavy duty and so precise.
Specification :
| Types of instrument | Rotating rheometer with imposed speeds |
| Speed range | unlimited number of speeds between 0.3 and 1500 rpm |
| Torque range | From 0.05 to 30 mnm |
| Temperature | 5 to 80 °C through Peltier effect (Cone Plate stand CP 4000) |
| Accuracy | ± 1 % of the full scale |
| Repeatability | ± 0.2 % |
| Viscosity range | 1 - 15 000 000 mPa.s depending on the measuring geometry used |
| Display | 7 |
| Security and confidentiality | An “operator” function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement conditions. |
| Supply voltage | 90-240 VAC 50/60 Hz |
| Analog output | 4 – 20 mA (Torque range to be defined by user) |
| PC connections | Port RS232 et USB |
| Carry case | Included only for the head of RM 200 TOUCH |
| Dimensions | Head: L180 x W135 x H250 mm / CP 4000 : L300 x W490 x H630 mm |
| weight | 22kg |
