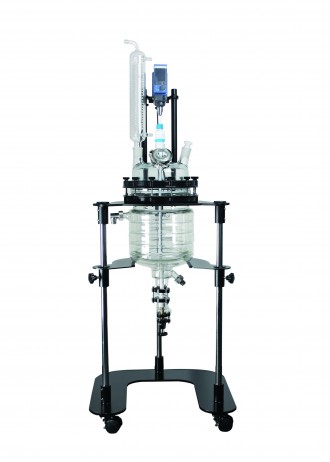

Reaction Unit Pilot-plant

Complete package for a whole fucntional unit. It is inclusive of condensor, head (glass cover), stirring shaft, support structure, vessel, flush valve and etc.

Ring Baffles for fast and precise temperature control. Our glass ring baffles distribute heat transfer fluid evenly throughout the jacket, promoting precise temperature control and allowing temperature control units to operate at maximum efficiency with fast heating / cooling response.

Advantages of vacuum jacket. The vacuum jacket virtually eliminates all heat exchange between the jacket outer surface and the atmosphere, and promotes thermal energy transfer for the process by reserving maximum available energy from temperature control units. Due to near perfect insulation, there is almost no frost formation or minimal condensation on the outer wall of the reaction vessel during low-temperature operations (i.e. below dew point or sub-zero operation). Faster temperature control with less energy loss will improve overall process performance.

High quality and Unique Engineering Design. All glass welded construction. Wall thickness and pressure is perfected by AG! (with ring baffles only). Proprietary Ring Baffle Technology.

Production Ratios in Line with Manufacturing Scale.All Triple Wall reactors are designed to keep the Height(H)/ID(W) ratio within 1 to 1.5 for structural security, performance and easy scale up.

No Dead Space

Leak-proof Flush Valve.Pressure-sensitive spring-loaded Flush Valve prevents leakage

Industrial Design Inlet/Outlet. Sturdy and adaptable, preventing leakage.
