Life Science
Microbial Cell & Colony Counters

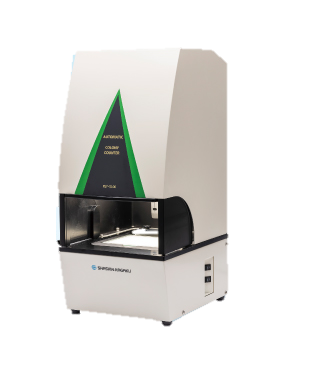

PSF-5100L Colony Counter
High-end model with a good balance of performance and cost. Ideal for counting small colonies.
Brand: Shashin Kagaku
Contact Us for better pricing.
Warranty Details
High-end model with a good balance of performance and cost.
Ideal for counting small colonies.
PSF-5100L Models able to support Φ150 mm and 144 x 104 mm dishes.
Specification :
| Dimensions of main unit | W280 × D351 × H630mm |
| Weight | 19Kg |
| Power Source | AC 1? 100-240V 50/60Hz |
| System configuration | Main Unit only. (PC and Monitor are sold separately) |
| Operating environment | 10-35 °C, 20-80 % humidity |
| Camera | Color CMOS camera |
| Number of pixels | 12MP |
| Calculated resolution | 50µm |
| Measurement object | Viable bacteria Colonies on petri dishes, Petri films, filters, compact dry, film media, Plaques and Inhibition zones *. |
| Maximum count area ** | 152×165mm |
| Round Petri Dishes | up to ?150mm |
| Multi-well plates | 6?12?24-wells. Optional software required. |
| Measurement time | 1 to 5 seconds per petri dish. Depends on PC performance and measurement conditions. |
| Maximum number of colonies | 20,000 colonies (settings can be changed) |
| Light shielding | Shading Sliding Door |
| Top lighting (refiective) | Height adjustable *** |
| Bottom lighting | Darkfield and brightfield |
| Notes | * Optional software is required to inhibition zone measurement. This software is standard only in PSF-7100W. ** For square petri dishes, use one that is smaller than the maximum count area. *** It is possible to change the height position of the top lighting. By this function, the outline of colonies can be clearly photographed. |
