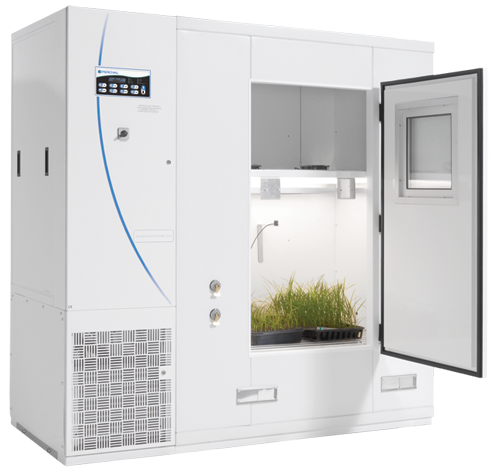

PGC-10 Reach In Plant Growth Chamber

Percival’s IntellusUltra controller

Percival Scientific has built a reputation of providing flexible, customized options for research scientists around the world. We’ve taken that philosophy to the next level with our improved IntellusUltra Controller. Now choose from the levels of functionality that meet your research needs.

Lighting system

• Single tier plant growth bench lit by patented lamp bank specifically designed to optimize energy efficiency by managing the heat inside the lamp bank

• Design produces a constant light irradiance throughout a chamber’s temperature range

• Intensity programmable up to 1000 µmoles/m2 /s measured @ 6" from barrier, utilizing a balanced spectrum for plant growth using fluorescent lamps and incandescent lamps 3 on/off light events

• Lamp bank is counter-balanced for adjustable light intensity

• Two levels of programming of fluorescent lighting and one level of programming of incandescent lighting done via IntellusUltra real time controller

Cabinet construction

• Interior and exterior constructed of 22-gauge electro-zinc plated steel

• Stainless steel floor • Perforated aluminum channel work bench

• Inner shell supported by thermal conducting insulator locking inner liner in place without a metal-to-metal bond to outer case

• Chamber floor equipped with floor drain with attached ¾" plastic tubing

• Chamber cabinet is attached to angle frame base containing heavy duty swivel caster assembly and adjustable leveling legs to compensate for floor uneveness in the lab

Airflow/circulation

• Conditioned air moves in uniform upward direction through entire work bench through perforations in aluminum channels

• Fresh air inlet and outlet are adjustable insulation

• Woodless construction using foam-in-place 2" [5.1 cm] thick CFC free urethane insulation foam (this is an environmentally friendly foam with global warming potential [GWP] of 0.0 and ozone depletion potential [ODP] of 0.0)

Door

• One door opening 25.8" x 48.3" (65.5 cm x 122.7 cm) (magnetic gasket provides a tight seal to door frame) • 12" x 12" (30.5 cm x 30.5 cm) observation window with a light tight cover

Interior space

• 63.1 ft3 (1.8 m3 ) with work area of 10.1 ft2 (0.9 m2 ) provided on one tier

Finish

• Interior and exterior painted with highly reflective, environmentally friendly, high temperature baked white powder coating

Refrigeration

• Self-contained air-cooled condensing unit with hot gas bypass system for continuous compressor operation, extended life and close temperature control (this continous running condensing unit ensures precise temperature control by alternately cycling refrigerant and hot gas to coil; this also prolongs life of compressor, and eliminates risk of ice build up in coil)

• Solenoid valves have extended stem for quiet and long life operation

• Heat rejection to the ambient (standard refrigeration system) with water-cooled self-contained condensing unit = 2000 BTU/hr.

• Heat rejection to the ambient (standard refrigeration system) with air-cooled self contained condensing unit = 9100 BTU/hr.

Temperature range

• 2°-44°C (±0.5°C) lights off and 10°-44°C (±0.5°C) lights on (full fresh air) within work area on horizontal plane with lights on

Temperature safety limit controls

• (Experiment Protection) Adjustable high and low temperature controls, audible alarms, and visual indicators provided

• Controls shut down all power to the chamber, activating alarms (when the temperature returns to the normal range the system will automatically reset)

Convenience receptacles

• Two convenience receptacles provided inside chamber
