PDH-521T9 Petri Dish Handler for Colony Counter

PDH-521T9 Petri Dish Handler for Colony Counter

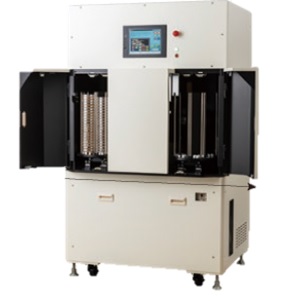

A device that can automatically transport the petri dishes to the PSF colony counter series.
Pricing & Availability Download Catalogue Shashin Kagaku
Brand: Shashin Kagaku
Contact Us for better pricing. Warranty Details

  • Workforce & Time saving

    Achieves high-speed measurement of 100 petri dishes / hour. You may leave machine untill operation complete.

  • Easy operation

    Simply set the petri dish and then push a button to achieve easy automatic colony counting. Automatic output of measurement reports is also possible.

  • Reliability and Consistency

    Reduced human error and realized stable and constant measurement.

  • Large number of samples

    In PDH-521T9, 105 petri dishes can be installed at the same time. Customization up to 600 petri dishes is possible.

  • Samples management

    Measurement conditions and sample information can be automatically entered using a QR code or barcode. It is also possible to mix samples with different types and measurement conditions.

Specification :

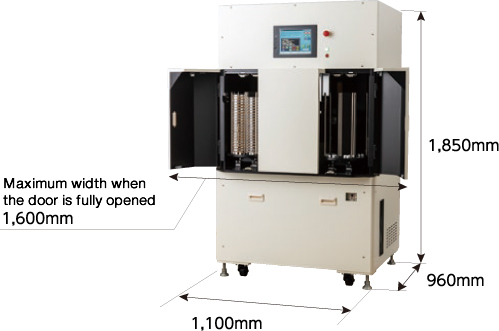

Dimensions of main unit W1,100 x D960 X H1,850 mm
Weight 410Kg
Power source AC ?3 200V, special class D grounding work required.
System configuration Main unit, colony counter, control PC, monitor
Front operation monitor 10-inch color touch panel
Rotation tables Each rotating table used to put and take out petri dishes has 5 racks, and each racks can hold up to 21 petri dishes.
Maximum samples 105 petri dishes
Measurement object Viable bacteria Colonies, Plaques, etc.
Measurement speed Up to 100 petri dish/hour
Petri dish identification Barcode /QR code reader, manual input is also available.
Colony counter Select from PSF-1100/2100/5100/7100
Camera Color CMOS
Number of camera pixels 3–20 mega pixels *
Calculated resolution 28?67?m *
PC specs for colony counter Depends on the type of colony counter.
Operating environment 10-35?, 20-80 % humidity Select a place there is no abnormal vibration, and small amount of dust and dirt.
