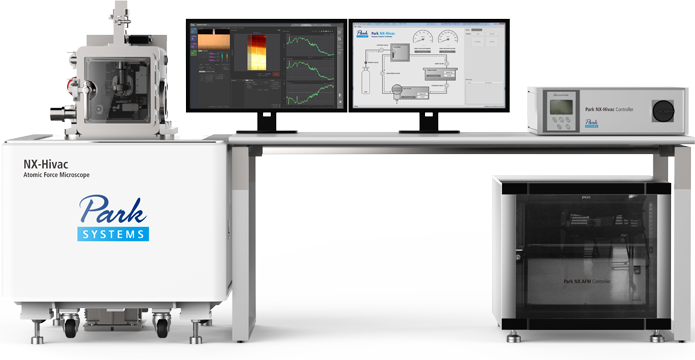

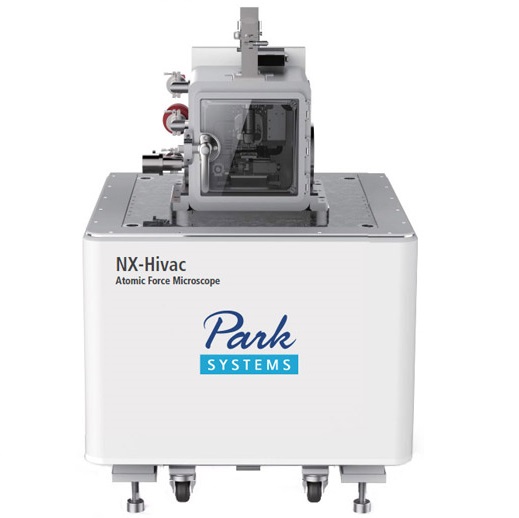

NX-Hivac Atomic Force Microscope
High vacuum atomic force microscope for failure analysis and atmosphere-sensitive materials research
Brand: Park Systems
Contact Us for better pricing.
Warranty Details

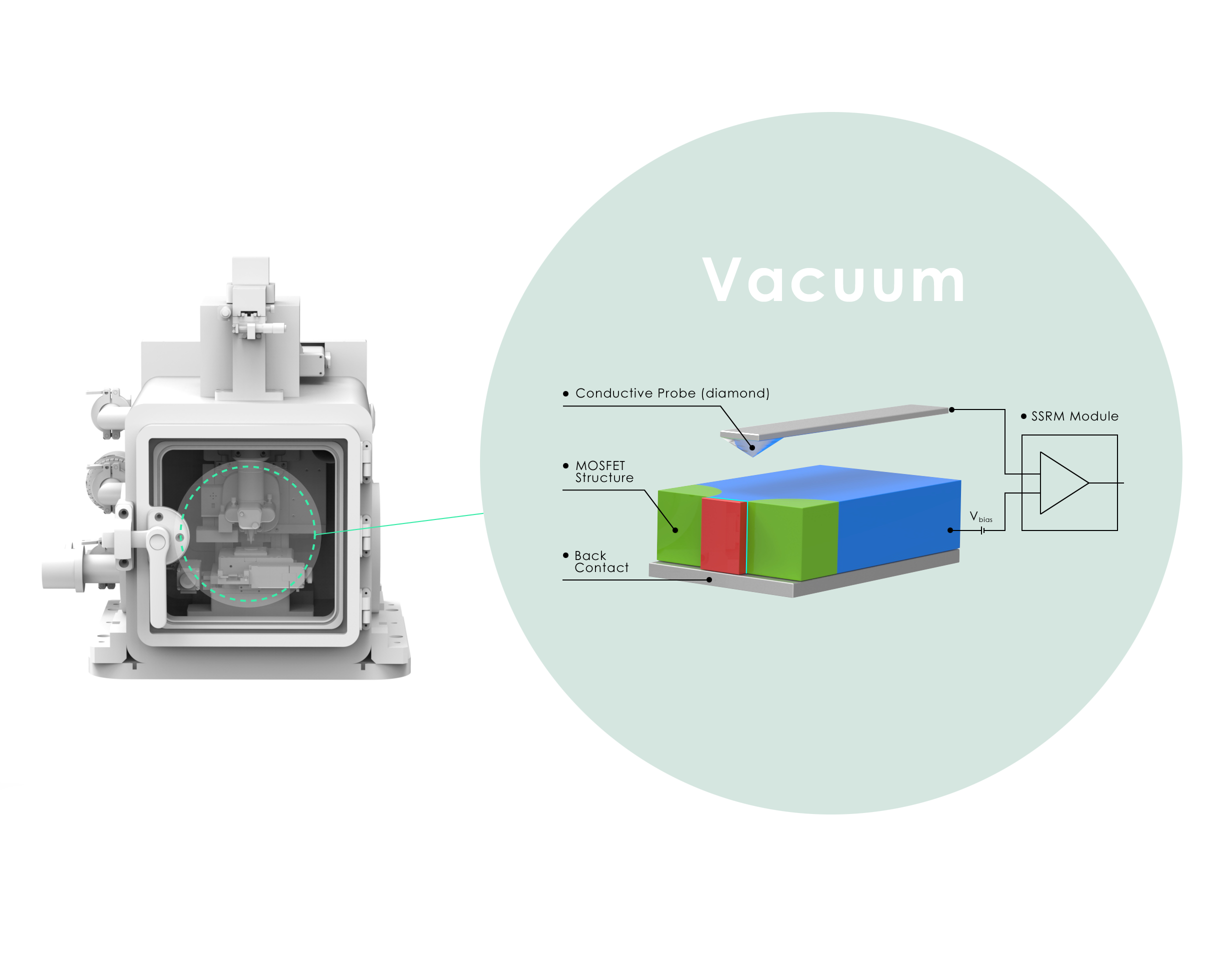

- NX-Hivac auto vacuum control
- StepScan Automation with Motorized stage
- Motorized laser alignment
- Closed-loop XY and Z Scanners
- Low Noise XYZ Position Sensors
Specification :
| Scanner | |
| XY scanner | 50 µm × 50 µm (100 µm x 100 µm optional) |
| Z scanner | 15 µm |
| Optics | |
| Objective lens | 10× 5M pixel CCD |
| Sample Stage | |
| XY stage travel | 22 mm x 22 mm |
| Sample size | 50 mm x 50 mm, up to 20 mm thickness |
| Physical Information | |
| Inner vacuum chamber | 300 mm x 420 mm x 320 mm |
| Outer vacuum (including granite & pump) | 800 mm x 950 mm x 730 mm |
