Atomic Force Microscope

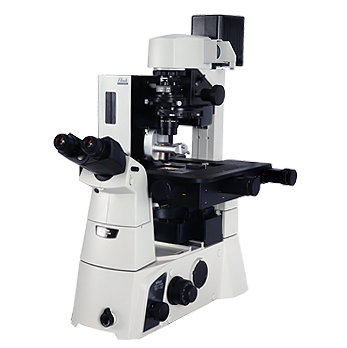

NX-Bio Atomic Force Microscope
The most powerful nanoscale microscopy for life science.
Brand: Park Systems
Contact Us for better pricing.
Warranty Details
- In-liquid imaging with ease
- Delicate membrane morphology imaging at cellular and sub-cellular level
- Biological tissue imaging in three-dimensional (3D) structure
- High resolution bio-imaging for single molecule with True Non-Contact™ Mode
- Force-distance (FD) spectroscopy for mechanical property characterization of various bio-materials
- Accurate height/depth analysis from 3D structure measurements
- Full Integration with Inverted Optical Microscope for high productivity
Specification :
| Scan range of XY-scanner | 100 µm x 100 µm |
| Working distance of Z-scanner | 25 µm |
| Resonance frequency of Z-scanner | 5 kHz |
| Working range of XY stage | Software-controlled motorized stage for SICM/AFM head positioning |
| Stage travel range | 14 mm |
| Stage travel step | 0.1 µm |
| Working range of Z stage | -14 mm, motorized movement |
| Sample size | 50 mm × 50 mm, 20 mm thick, and up to 500 gm, Petri dish (38 mm) |
