Analytical Science
Filter Reaction Unit
Nutsche Filter
Capacity
Non-Jacketed: Up to 300L
Double Wall; Jacketed: Up to 100L
Design Pressure
Less than 2bar G(Non-Jacketed : Up to 100L)
Effective Filtration
Maximized Filtering Efficiency
Leak-proof Mounting
Unique Filter Housing Prevents Leakage
Easy Adjustment
AG! Engineered Guided Mounting System for Ease of Use
Brand: Asahi
Contact Us for better pricing.
Warranty Details
Firter Housing
Leak-proof Mounting System
High sealing performance
?Filter: PEEK, PTFE, PP
?Mesh Size: 1-5,100μm
Easy Adjustment and Centering

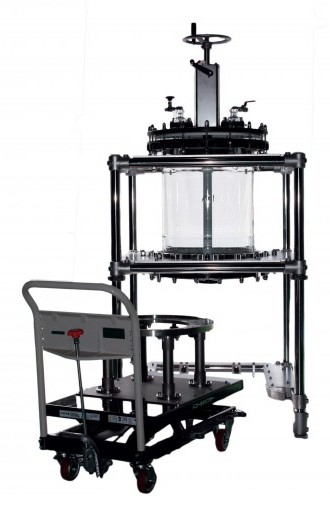

AG! Engineered Guided Mounting System & Convenient Handling Cart for Ease of Use.
Stirring Apparatus
Locking, multi-directional stirring devise maintains a uniform cake(up to 150mm)
Nozzle Orientation
You can arrange to suits your neeeds.
e.g.
?Stirrer handle
?Feed pipe
?Spray nozzle
Specification :
| Vessel Capacity | 1, 2, 3, 5, 10, 20, 30 L |
| Filtration Area | 78.5 ? (1, 2 L), 176.7 ? (3, 5 L), approx. 317.3 ? (10 L), approx. 514.7 ? (20 L), approx. 711.6 ? (30 L) |
| Vessel Type | Single Wall, Double Wall ; Full Jacket |
| Operating Pressure | 1, 2, 3, 5 L : Full Vacuum to +2 bar G (+0.2 Mpa) 10, 20, 30 L : Full Vacuum to +1.5 bar G (+0.15 Mpa) |
| Operating Jacket Pressure | Up to +0.5 bar G (+0.05 Mpa) (Double Wall) |
| Operating Temperature | -90°C to +200°C (?T : 110°C? |
