Material Science & Nanotechnology
Electrospinning System
Needle-Free Electrospinning System NS 1S500U
System

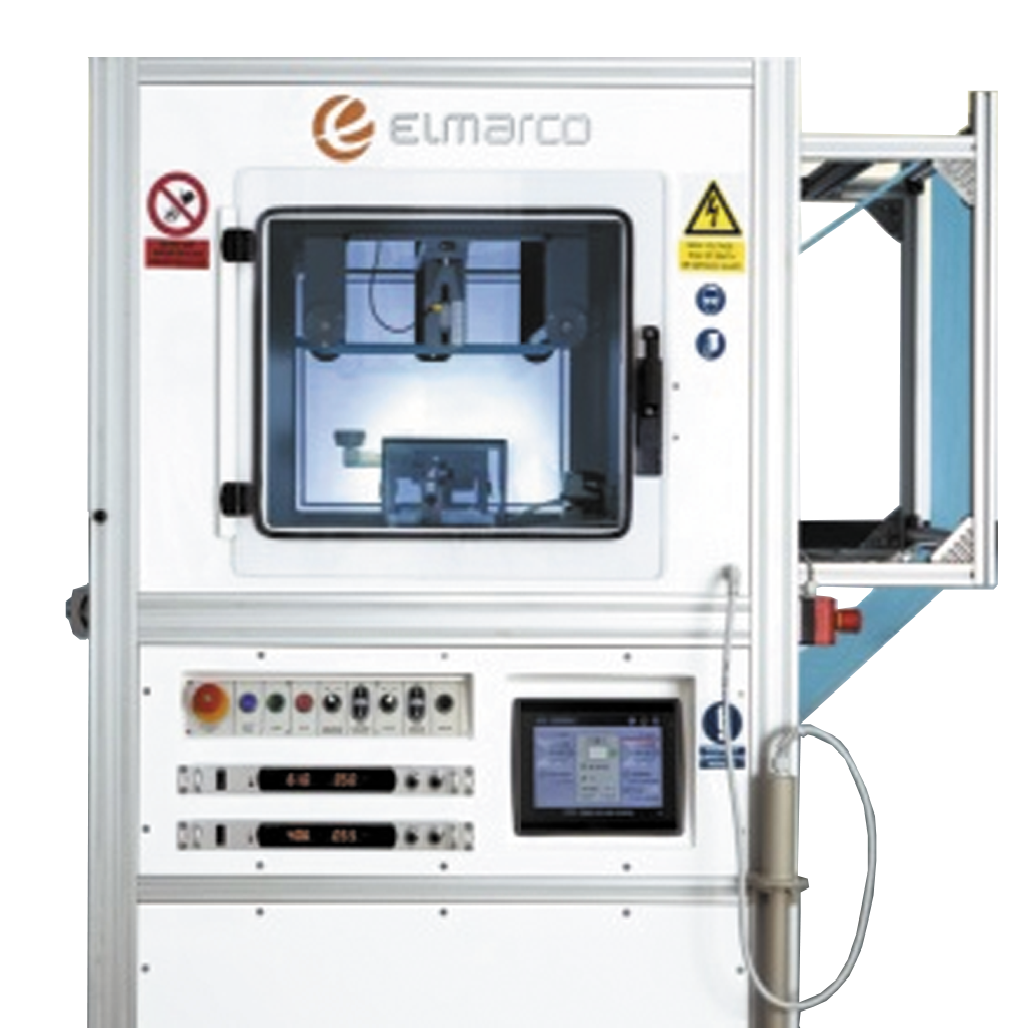

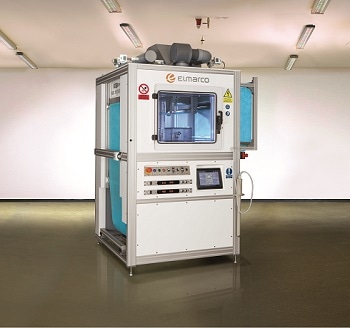

Elmarco′s NS 1S500U Production Line is the smallest nanofiber production equipment that delivers sufficient output for small volume manufacturing. Standalone electrospinning machine combines industrial production technology with features of high-end laboratory tool.
- Small volume manufacturing
- Sample production for applied research
NS 1S500U
The Production Line NS 1S500U is equipped with peristaltic pump for continuous feeding, enabling full time shift operation. Together with integrated unidirectional substrate
unwind / rewind, NS 1S500U provides a platform for efficient small volume manufacturing. Researchers benefit also from capability of processing high viscosity polymer solutions.
The NS 1S500U uses Nanospider™ needle-free technology, therefore the production can be easily upscaled to NS 4S1000U or NS 8S1600U, the high volume manufacturing equipment.
Wide range of polymer / substrate sets combined with enhanced setting capability make
the Production Line NS 1S500U a fully versatile electrospinning machine.
- Continuous feed or batch operating mode
- 500 mm effective width of nanofiber layer
- Integrated unidirectional substrate unwind / rewind
- Max. diameter of substrate roll: 400 mm
- Process data tracking and its additional PC analysis
| Number of spinning electrodes | 1 |
| Spinning electrode width | 500 mm |
| Effective nanofiber layer width | 300 - 500 mm |
| Spinning distance | 120 - 240 mm |
| Substrate speed | 5 - 5000 mm/min |
| Process air flow | 30 - 250 m3/h |
| Continuous feed mode cycle time | approx. 8 hours (depends on polymer / solvent solution) |
| Batch operating mode cycle time | approx. 60 min (depends on polymer / solvent solution) |
| Start-up time | up to 30 min |
