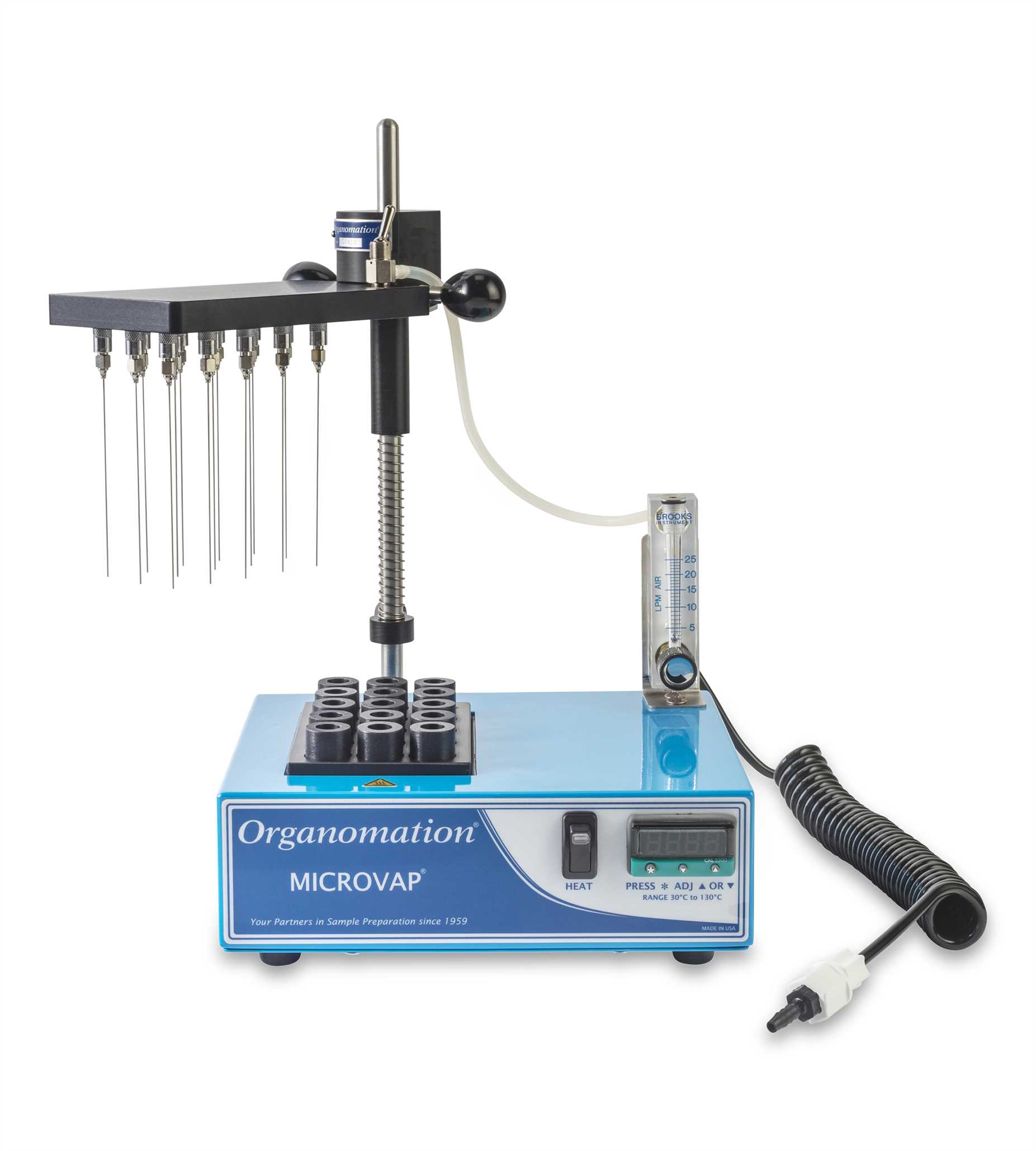

MICROVAP Small Batch Nitrogen Evaporator

Small Nitrogen concentrator for small batches of up to 24 small tubes. Also ideal for 1-2mL microcentrifuge tubes. Designed for controlled concentration of small samples.

Pricing & Availability Download Catalogue

Contact Us for better pricing. Warranty Details

Two models are available: 15-Positions, 24-Positions (small batch evaporator)
15 and 24 position MICROVAP laboratory evaporators are intended for small batch solvent evaporations, such as concentrations of sample batched in microcentrifuge tubes, GC/HPLC vials
Adjustable flow meter
Digital temperature control
High temperature limit switch
High pressure tubing
Stainless steel luer lock hubs and 4 inch x 19 gauge needles for easy removal
Nitrogen filter
Anodized aluminium dry block
With and without heating unit are available. For the version with heating unit, the digital temperature controls and solid aluminium heating unit provide uniform heat up to 130°C with temperature accuracy of ±0.5°C.

Specification :

No. of Sample Positions	15 / 24
Gas Manifold Layout	3x5 Array / 4x6 Array
Tube Diameter	10-22mm OD / 10-17mm OD
Gas Flow Control	Single Toggle Valve
Gas Flow Meter Range	0-10L/min
Stainless Steel Needles	4.0inch x 19 gauge
Standard Gas Input Range	20-30psig
Overall Dimensions (WxDxH)	254 x 279 x 356mm
