Analytical Science
Extraction Systems
MICROVAP Microplate Nitrogen Evaporator
Small Nitrogen concentrator for 96-well microplates and 96-well deep well plates. Designed for controlled concentration of small samples.
Brand: Organomation
Contact Us for better pricing.
Warranty Details

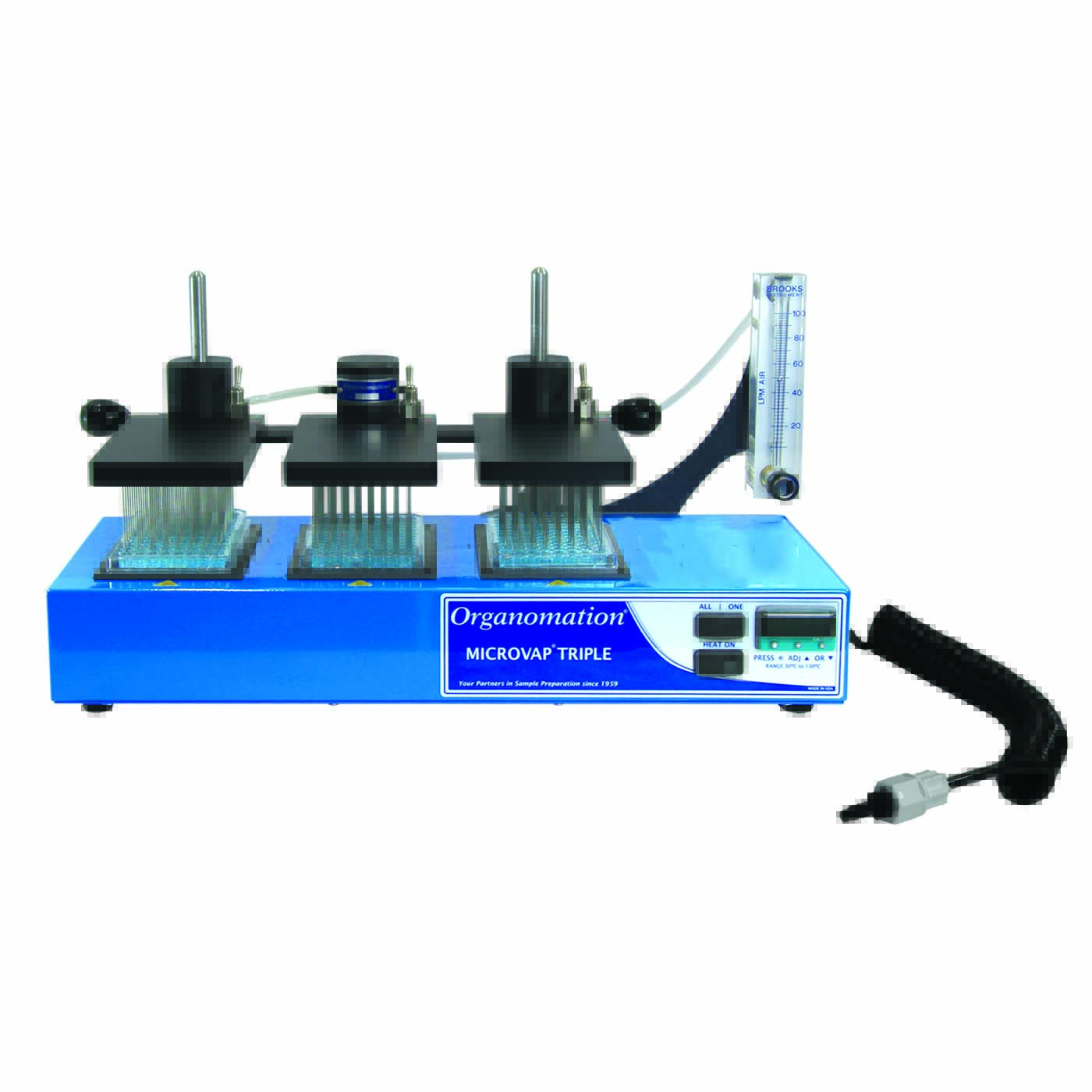

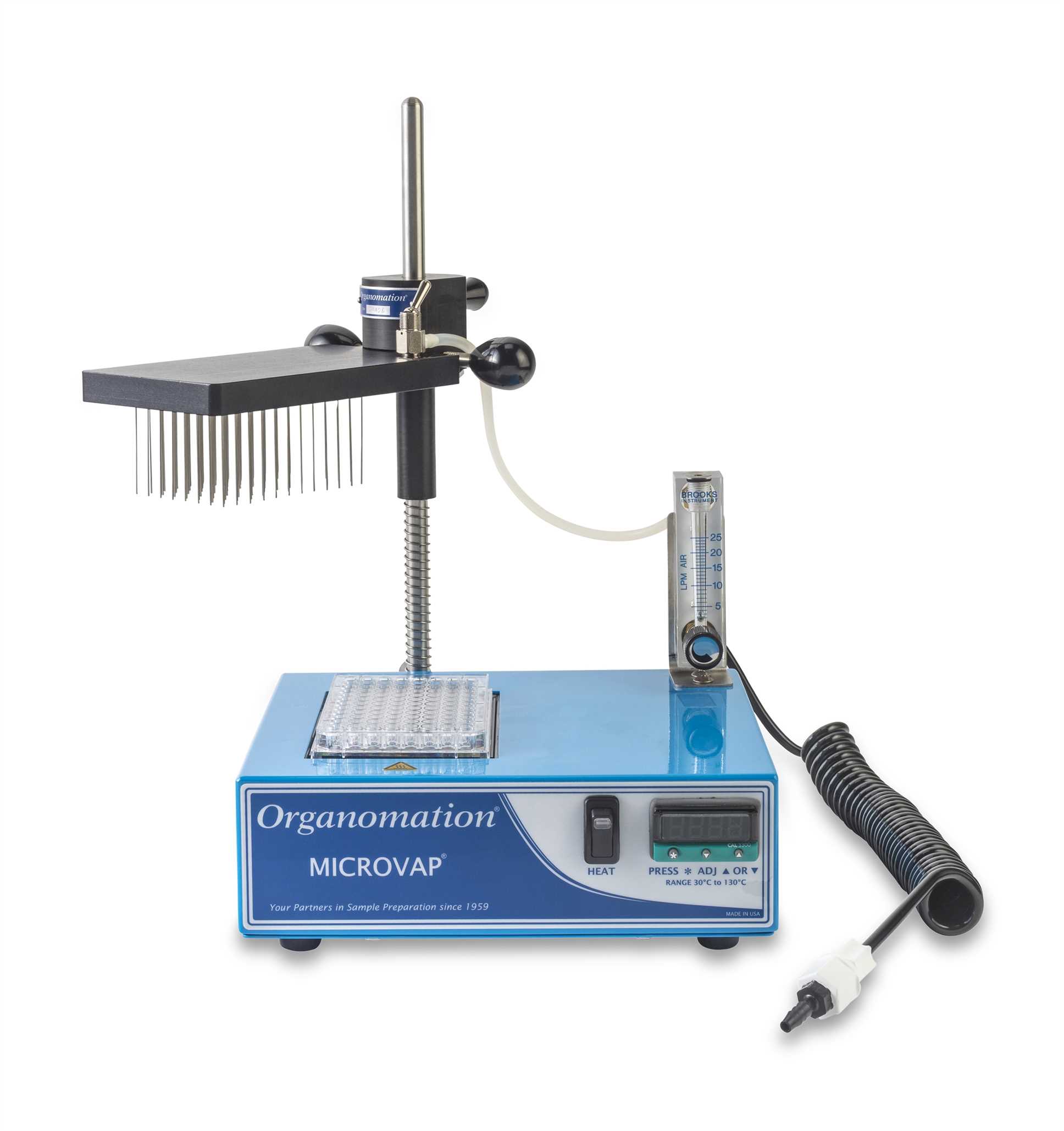

- Two models are available: Single Plate, Triple Plate
- Single and triple microplate MICROVAP nitrogen evaporators condense samples held within 96 well plates, and can accommodate both deep well and micro well plates.
- Adjustable flow meter
- Digital temperature control
- High temperature limit switch
- High pressure tubing
- 2 inch x 19 gauge stainless steel needles for continuous evaporation
- Nitrogen filter
- Anodized aluminium dry block
- With and without dry block heating unit are available. For the version with heating unit, the digital temperature controls and solid aluminium heating unit provide uniform heat up to 130°C with temperature accuracy of ±0.5°C.
Specification :
| No. of Sample Plates | 1 / 3 |
| Gas Manifold Layout | 8x12 Array / Triple 8x12 Array |
| Microplate Dimensions (WxD) | 85x130mm |
| Gas Flow Control | Single Toggle Valve |
| Gas Flow Meter Range | 0-30L/min / 0-100L/min |
| Stainless Steel Needles | 2.0inch x 19 gauge |
| Standard Gas Input Range | 20-30psig / 30psig |
| Overall Dimensions (WxDxH) | 254 x 279 x 356mm / 610x229x356mm |
