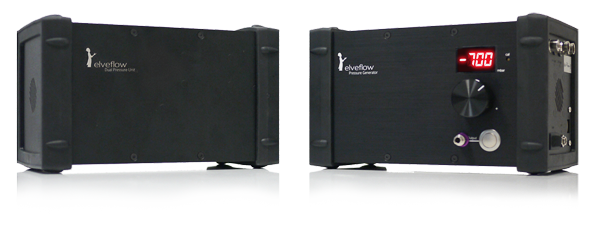

Microfluidic Pressure & Vacuum Pump AF1 Dual

An autonomous pump with the advantage of the most recent piezoelectric technology for microfluidics

The embedded micro-compressor makes unnecessary the typical air compressor or air line scheme. Only one thing is required to install your setup – an electrical plug!

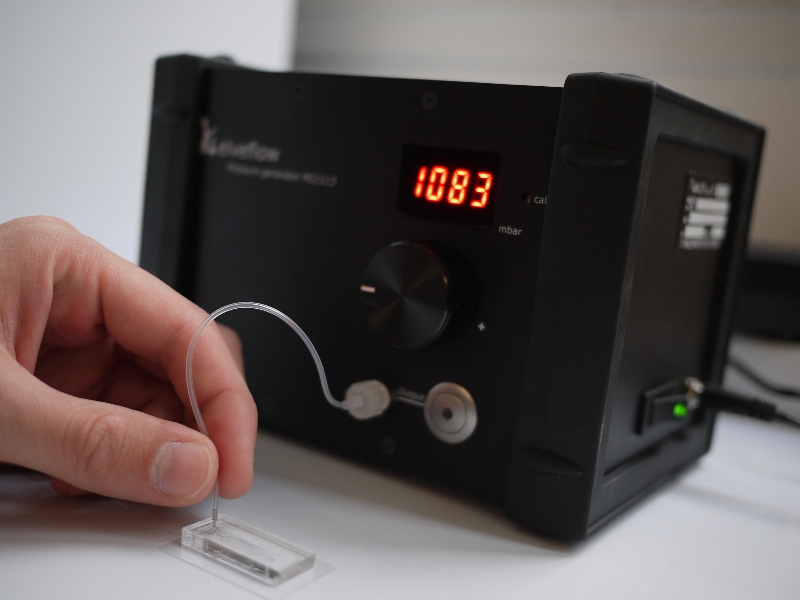

The Dual AF1 has a pressure range from -700 mbar to 1bar. It can be used both as a vacuum source or a pressure source and enables you to switch from vacuum to pressure on the same channel.

Wide range of applications

• Digital microfluidics: micro-droplets, anisotropic particles, double emulsion generation & handling
• Bead and particle manipulation
• Fast liquid sample switching
• Cell culture experiments

Performance

The piezoelectric technologies used in the AF1 provides the world’s most accurate flow control for your microfluidic experiment.

• Pressure stability: 0.05 %
• Sensor resolution: 0.006 %
• Settling time: 40 ms
• Response time: 50 ms

Configurations

Choose the pressure range fitted to your application

Range available :

• 200 mbar
• 1.6 bar
• -700 mbar/+1 bar

Fully customizable & OEM

The AF1 can be modified to fit almost all specific microfluidic requirements. An OEM version is available and the instrument is upgradable. Buy it today and add functions later.

High volume

Piezo technology enables fast pressurization of tanks up to 1 liter and enables to set up long term or high flow rate microfluidic experiments.
