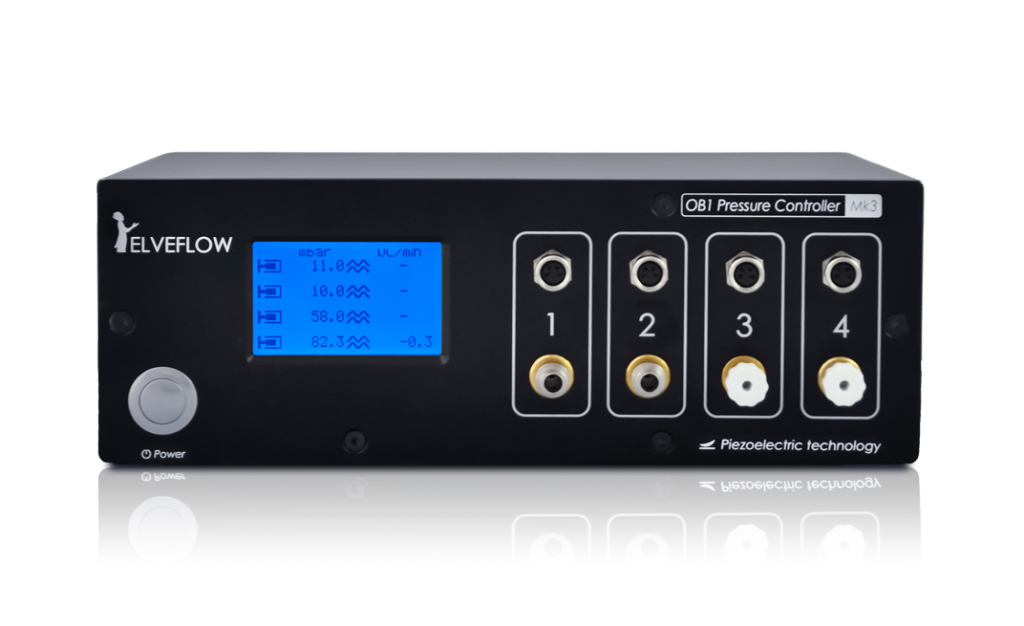

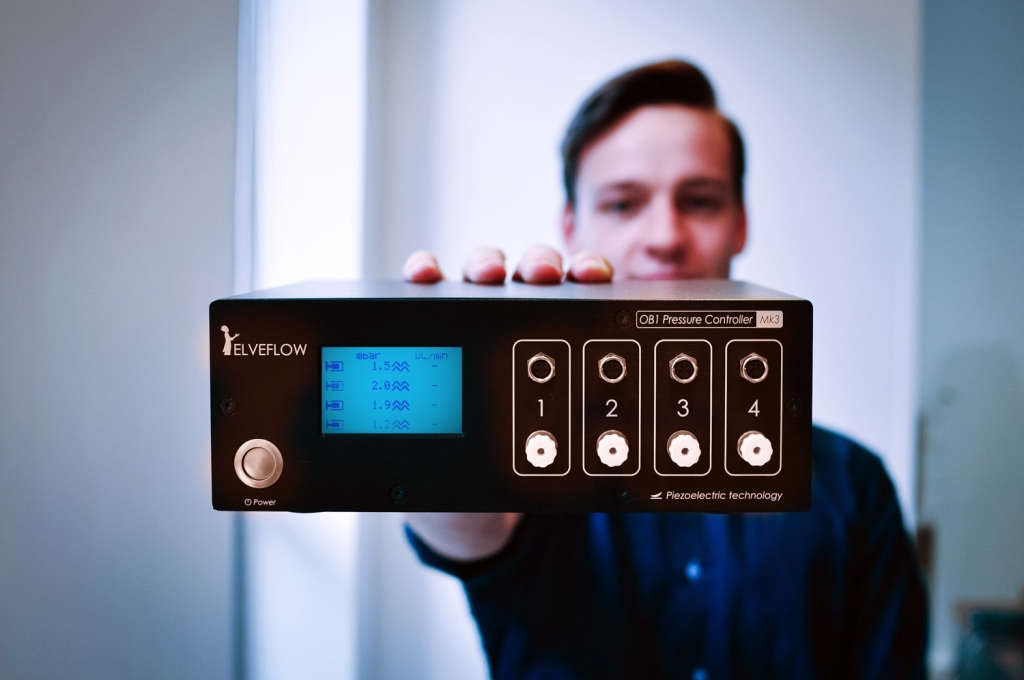

Microfluidic Flow Control System OB1 MK3

FAST & STABLE

The best performance of the market

PULSATION FREE

No pulsation with high and low flow rates

USER-FRIENDLY

Elveflow software: easy to use and powerful

RANGES & CONFIGURATIONS

Range Choose the number of independent channels from 1 to 4 and mix any combination of pressure range on the same OB1.

200 mbar |  2 bar | 8 bar | -900mb/+1bar |  -900mb/+6bar

Pressure & Vacuum The OB1 is the only flow control instrument that allows you to control pressure & vacuum on the same channel. For example, this feature enables you to precisely control the position of an object within a microfluidic channel.

Performance Pack In-house piezoelectric optimization & calibration and a challenging bench testing of technical features enabling such performances.

Fully customizable & OEM The OB1 Mk3 can be modified to fit almost all specific microfluidic requirements. An OEM version is available and can decide to upgrade your system at any time.

SOFTWARE & SDK

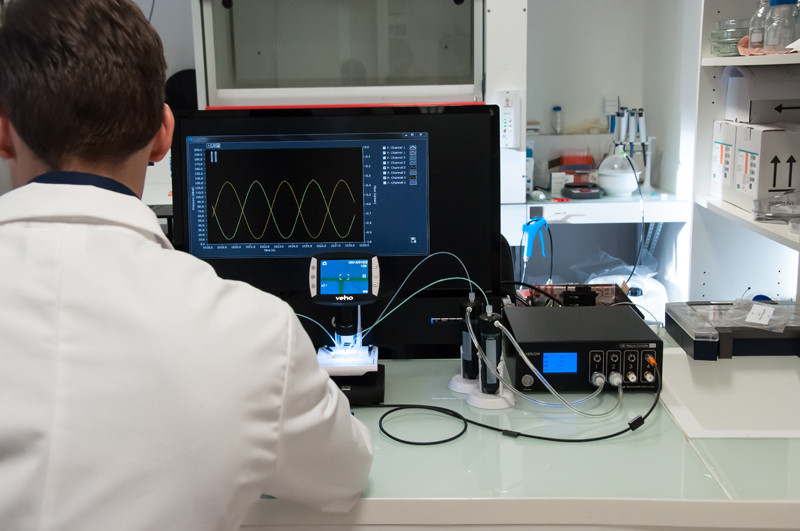

Easy to use & powerful Elveflow software full suite, which enables you to control your experiment in one click and to monitor reservoir levels, flow levels and injected volumes. Synchronize the Elveflow instruments in your system with a few simple clicks in order to fully automate your setup.

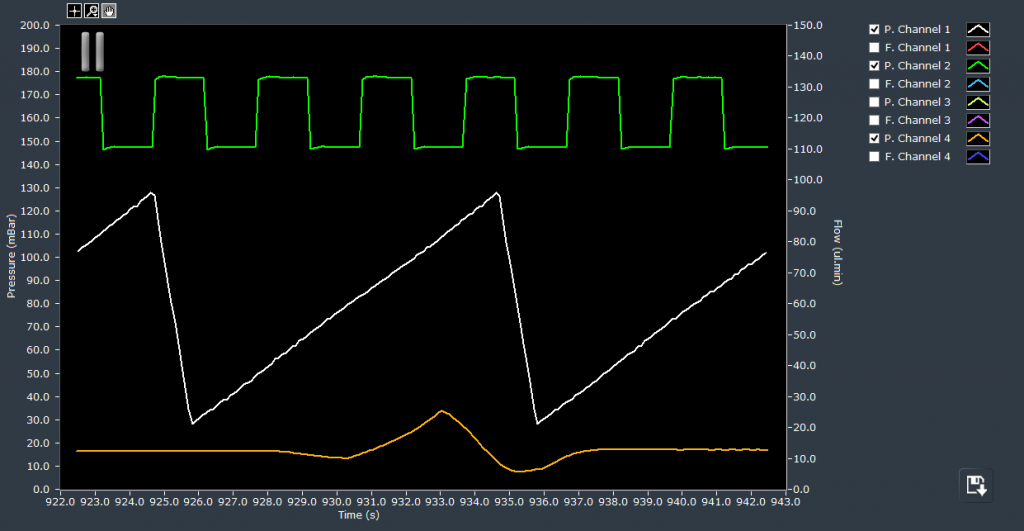

Complex fluidic profiles Create, monitor and modify in real-time complex pressure and flow rate profiles such as sine, square, triangle, ramp, pulse, or sawtooth…

Complete setup synchronisation The OB1 Mk3 is equipped with internal & external trigger connectors and can thus be synchronized with any other Elveflow® product, a microscope or any electrical instrument… and enables the synchronization of up to 16 instruments simultaneously.

FLOW RATE CONTROL & PID

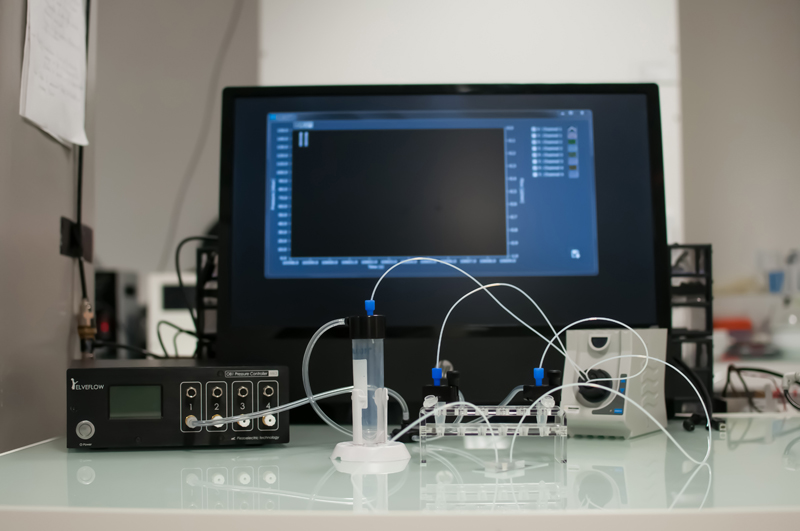

The flow control mode (OB1 + flow sensor) enables rapid and precise regulation of the flow rate. With the OB1, you only have to calibrate your flow sensors once and it will function with any chip and any setup. In addition, the consistent speed of our pressure controllers means you no longer have to choose between speed and precision, even when working with multiple dependent channels.
