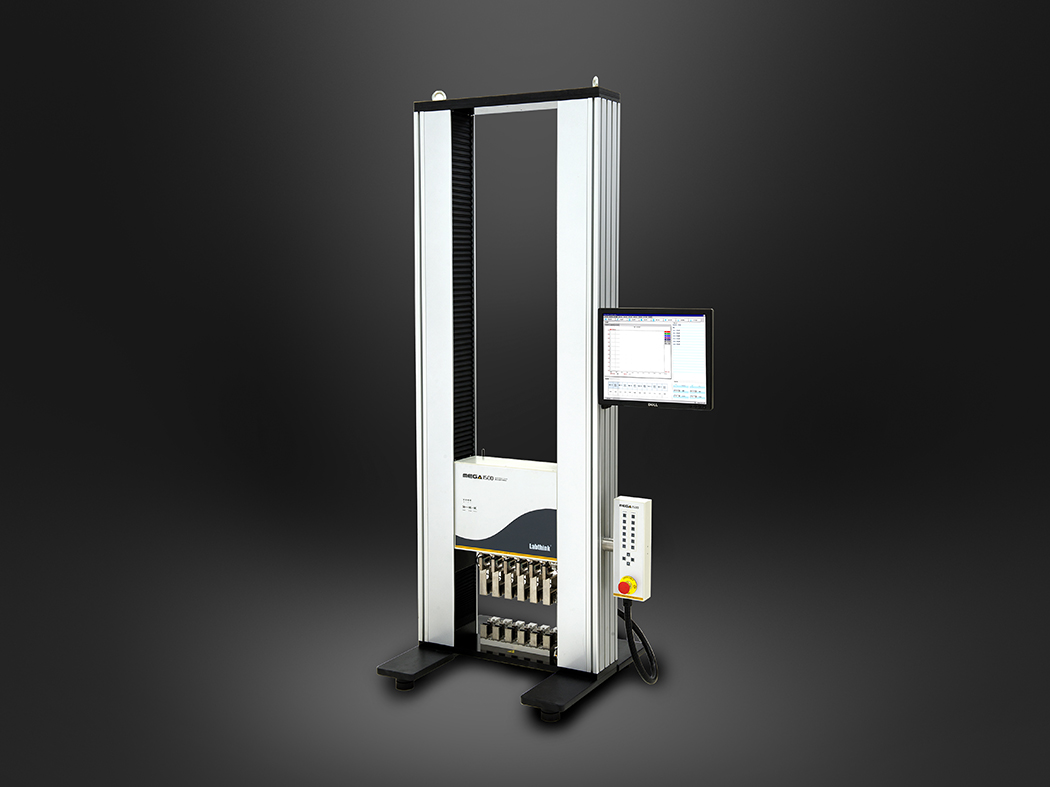

MEGA 1500 Auto Tensile Tester

Product Features

Professional Technology

• Double-column ball screw driving mechanism ensures high precision and steady working of the instrument
• Multiple testing modes are available including tensile strength, deformation, peeling and tearing, etc. which can meet the testing demands of the customers
• Stress at defined elongation, elastic modulus and stress and strain etc. can be analyzed
• 1200mm extra-long stroke satisfies the test needs of various materials with extreme deformation rate
• 6 working stations and pneumatic specimen clamping facilitate to test multiple specimens simultaneously
• Load cells with different test ranges and stepless speed change from 1 to 500mm/min can meet the requirements for various testing conditions
• The embedded computer controller system, with membrane switch is convenient for instrument operation
• Multi-level over-travel protection, overload protect, automatic position reset and intelligent error alerts for safe test operation
• Embedded computer controlled system effectively guarantees the system security and the reliability of data management as well as test operation
• The instrument can be operated with one monitor, one mouse and one keyboard, not requiring a computer
• The system is equipped with four USB ports and two net connection interfaces, which is convenient to data expansion
• Professional operating software supports superposition analysis of test curves of group specimens and statistical analysis of maximum, minimum, average and standard deviation of test results

Standards

This instrument conforms to multiple standards including:
ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, GB 8808, GB/T 1040.1-2006, GB/T 1040.2-2006, GB/T 1040.3-2006, GB/T 1040.4-2006, GB/T 1040.5-2008, GB/T 4850-2002, GB/T 12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, JIS P8113, QB/T 2358, QB/T 1130
