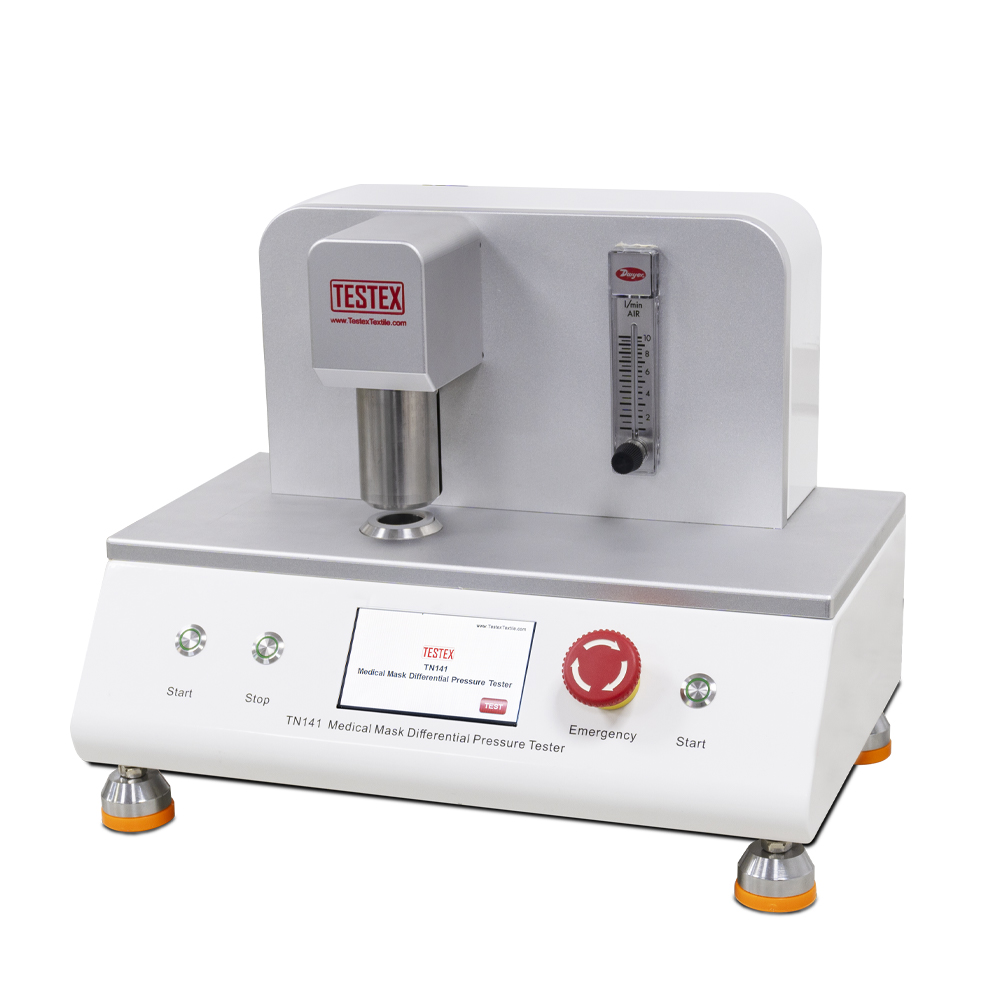

Medical mask differential pressure tester is for determination of breathability of medical face masks materials, tester complies with EN 14683-2019+AC-2019, ASTM F2100-2019, YY/T0469-2011, YY/T0969-2013 standards.
Features for Medical Mask Differential Pressure Tester
With calibration port, it can correct the intake flow.
International voltage universal.
Size in small, saving shipping cost, easy to use.
Equipped with precise flowmeter, differential pressure transducer ensures the accuracy of measuringairflow and the differential pressure
Application
Medical mask differential pressure tester, or medical face mask breathability tester is used for measuring the breathability of medical face masks (material).
Medical mask differential pressure tester can test the differential pressure required to draw air through a measured surface area at a constant air flow rate is used to measure the air exchange pressure of the medical face mask material.
Specification :
Flow meter
0-10 L/min
Sensor measuring range
0-0.5 kPa
Metallic ring of internal diameter
25 mm
Pressure pump
25 L/min, 85 kPa
Display screen
4.3 inch
External air support
0.4-0.6 kPa
Net weight
15.2 Kg
Voltage
0-240 V/50 Hz-60 Hz
Power
100 W
Net size
Length: 315mm Width: 415mm Height: 750 mm
Standards
EN 14683-2019+AC-2019 ASTM F2100-2019 YY 0469-2011 YY/T 0969-201
