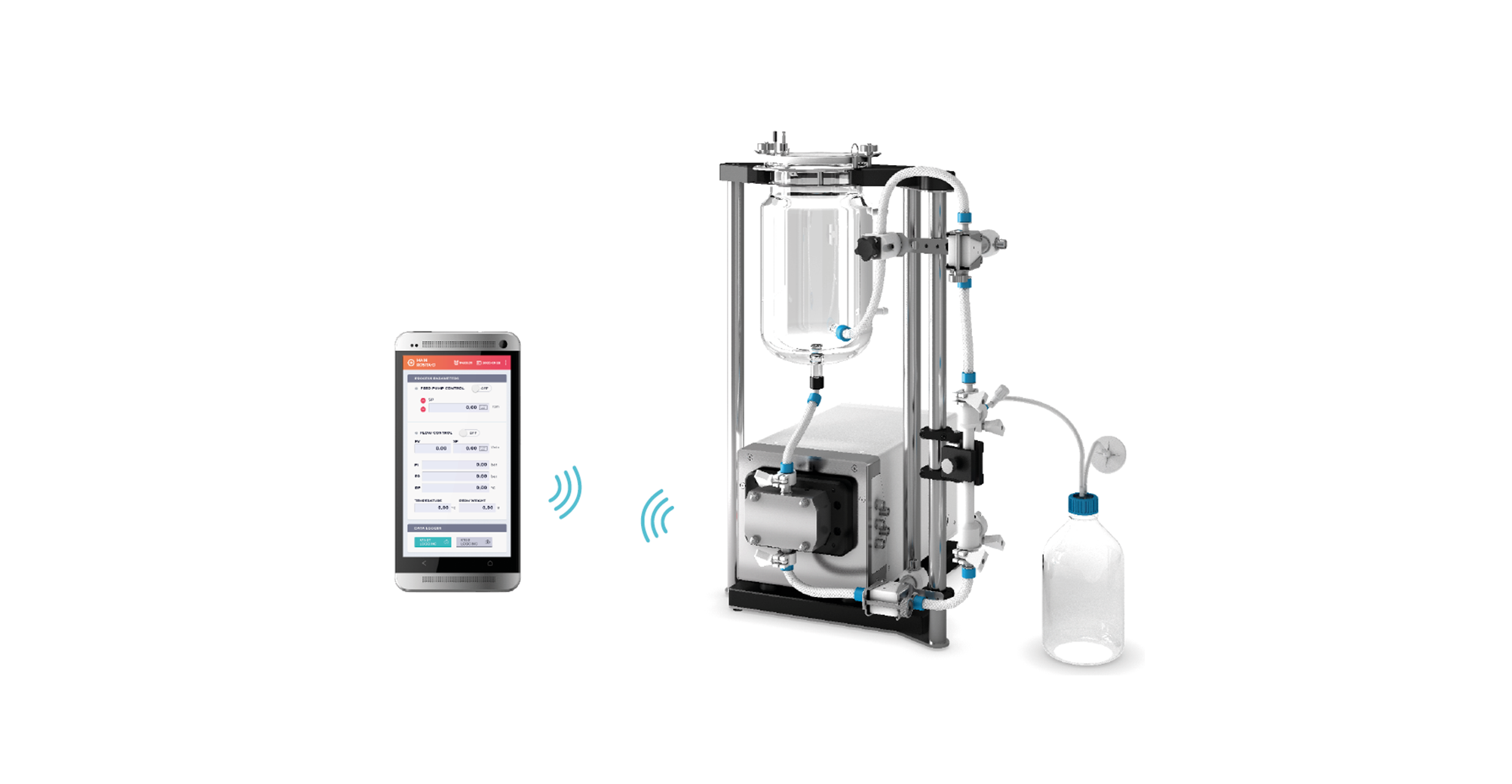

M1 Benchtop Tangential Flow Filtration system

M1 Benchtop Tangential Flow Filtration system

Flexible tangential flow filtration (TFF) system for the concentration/clarification of your bioprocess’s biomolecules and biomass at lab and pilot use and in small production.
Pricing & Availability Download Catalogue Bionet
Brand: Bionet
Contact Us for better pricing. Warranty Details

The M1 unit is a unique solution for all those seeking a compact system for concentration and/or clarification of the biomass and/or biomolecules from their microbial fermentation/culturing processes at lab scale.

Features:

  • The M1 offers the flexibility (in the form of modularity and membrane selection) required for creating the right configuration for your filtration system.
  • It provides you with the right technological components (e.g. recirculation pump) and process flow for your process scalability. Meaning you can be confident that your results can be transferred to a production scale.
  • The combination of a IOT-based architecture and our ROSITA software solutions renders your process consistent and reproducible, and provides the data for a complete test analysis.

M1 is the right tool for:

  • Technology selection (membrane technology and materials).
  • Selection of optimum pore size.
  • Calculation of achievable concentration factor.
  • Generation of filtrability curves.
  • Cleaning procedures.
  • Evaluation of the impact of the operative parameters (e.g. cross-flow velocity, pressyre and temperature) regarding yields, flows an dproduct quality.
  • Small productions.



Specification :
Applications Microfiltration, Ultrafiltration
Batch volume Up to 20L (assuming a good filtrability)
Operation footprint (H x W x D) 540 x 650 x 600 mm
Vessel working volume 3 L (other volumes available)
Vessel type Single wall (jacketed vessel available)
Vessel material Borosilicate Glass
Dead volume (ml) 200
Membrane vendor Neutral
Membrane type Reusable and single-use
Membrane types Ceramic, Hollow Fiber and Cassettes
Pore Size (for MF) Ceramic (?m) 0.05, 0.1, 0.14, 0.2, 0.4, 0.45, 0.5, 0.8, 1.2, 1.4
Pore Size (for MF) Hollow Fiber (?m) 0.1, 0.2, 0.45, 0.65
Pore Size (for MF) Cassette (?m) 0.1, 0.2, 0.45, 0.65
Pore Size (for UF) Ceramic 1, 5, 10, 20, 50, 100, 150, 300 kD 20, 50 nm
Pore Size (for UF) Hollow Fiber 1, 3, 5, 10, 30, 50, 70, 100, 300, 500, 750 kD
Pore Size (for UF) Cassette 1, 3, 5, 8, 10, 30, 50, 70, 100, 200, 300, 500, 1000 kD
bFlow (recirculation pump)
Material SS 316L Rotor and casing, EPDM Elastomers
Surface finishes Inner surfaces finished to Ra 0.6?m
Motor Servo-motor drive for maximized flow range with Integrated servo controller
Operation details Fully drainable CIP compatible design
Flow range 0.8-10 L/min
Pressure range 0 – 6 barg
