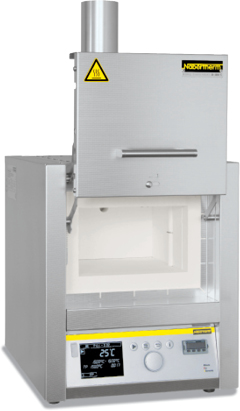

LVT 9/11 Ashing furnace
The ashing furnaces LVT 9/11 are especially designed for ashing in the laboratory. A special air intake and exhaust system allows air exchange of more than 6 times per minute. Incoming air is preheated to ensure a good temperature uniformity.
Brand: Nabertherm
Contact Us for better pricing.
Warranty Details
- Tmax 1100 °C
- Heating from two sides
- Ceramic heating plates with integral heating element which is safeguarded against fumes and splashing, and easy to replace
- Air exchange of more than 6 times per minute
- Good temperature uniformity due to preheating of incoming air
- Insulation made of non-classified fiber material
- Housing made of sheets of textured stainless steel
- Dual shell housing for low external temperatures and stability
- Optional flap door (LV) which can be used as work platform or lift door (LVT) with hot surface facing away from the operator
- Solid state relays provide for lownoise operation
- Defined application within the constraints of the operating instructions
- NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
Specification :
| Tmax °C | 1100 |
| Inner dimensions in mm | 230 x 240 x 170 |
| Outer dimensions in mm | 415 x 485 x 845 |
| Volume L | 9 |
| Connected load kW | 3.0 |
| Electrical connection* | 1-phase |
| Weight Kg | 45 |
| Minutes to Tmax2 | 120 |
