Laboratory Essentials
Syringe Pump

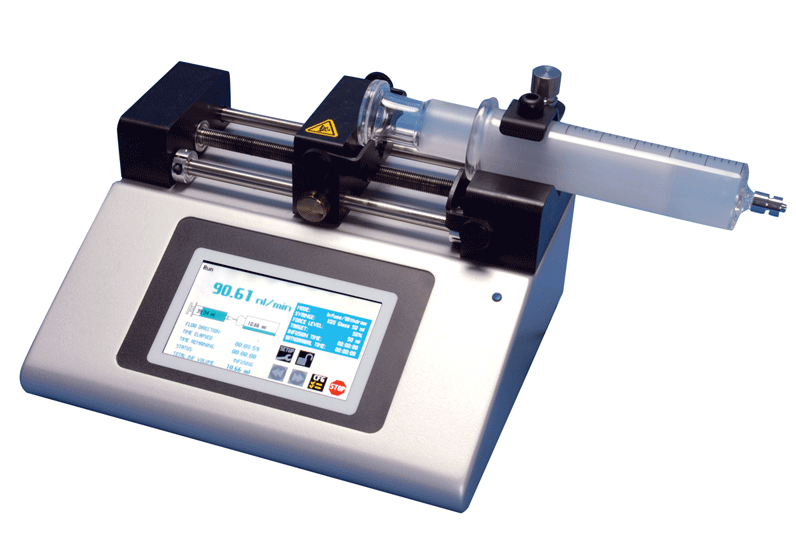

LEGATO® 110 SYRINGE PUMP
SINGLE SYRINGE INFUSION PUMP
Infuse only single syringe pump. Accommodates syringes from 0.5 µl to 60 ml. User definable flow rates with selectable target volume or time values to control the total infusion volume.
Brand: KdScientific
Contact Us for better pricing.
Warranty Details
- Holds one syringe from 0.5 µl to 60 ml
- High resolution color touch screen
- Unparalleled ease of use
- Touch pad "lock" feature
- LED light on front panel
- Full metal chassis
- Built in syringe table
- Up to 30 lb/13 kg linear force
- Advanced microstepping techniques
- Built in RS485 interface
- USB port
- I/O & TTL interface
- Continuous mode of operation
- Spill dam
- Programmable
Specification :
| Accuracy | ±0.5% |
| Reproducibility | ±0.05% |
| Syringes (Min/Max) | 0.5 µl to 60 ml |
| Flow Rate | Minimum (0.5 µl syringe): 1.28 pl/min Maximum (10 ml syringe): 25.99 ml/min Maximum (60 ml syringe): 88.28 ml/min |
| Display | 4.3 WQVGA TFT Color Display with Touchpad |
| Non-Volatile Memory | Stores all Settings |
| Connectors | RS485 - IEEE-1394 6 pos USB - Type B I/O & TTL - 15 pin D-Sub Connector |
| Linear Force (Max) | 13.6 kg (30 lb) @ 100% Force Selection |
| Drive Motor | 0.9 Stepper Motor |
| Motor Drive Control | Microprocessor with 1/16 microstepping |
| Number of Microsteps per one rev.of Lead Screw | 15,360 |
| Step Revolution | 0.069 µm/step |
| Step Rate - Minimum | 27.5 sec/µstep |
| Step Rate - Maximum | 26 usec/µstep |
| Pusher Travel Rate - Minimum | 0.15 µm/min |
| Pusher Travel Rate - Maximum | 159 mm/min |
| Power | 100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse |
| Dimensions | 22.6 x 19.05 x 15 cm (9 x 7.5 x 5 in) |
| Weight | 2.66 kg (5.9 lb) |
