Solar Simulator

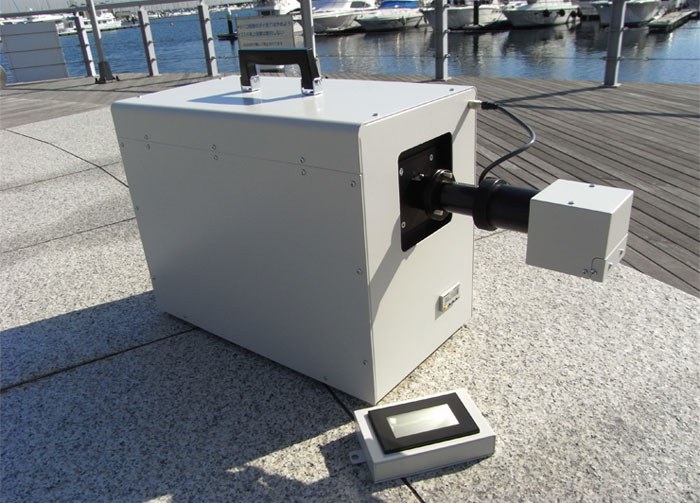

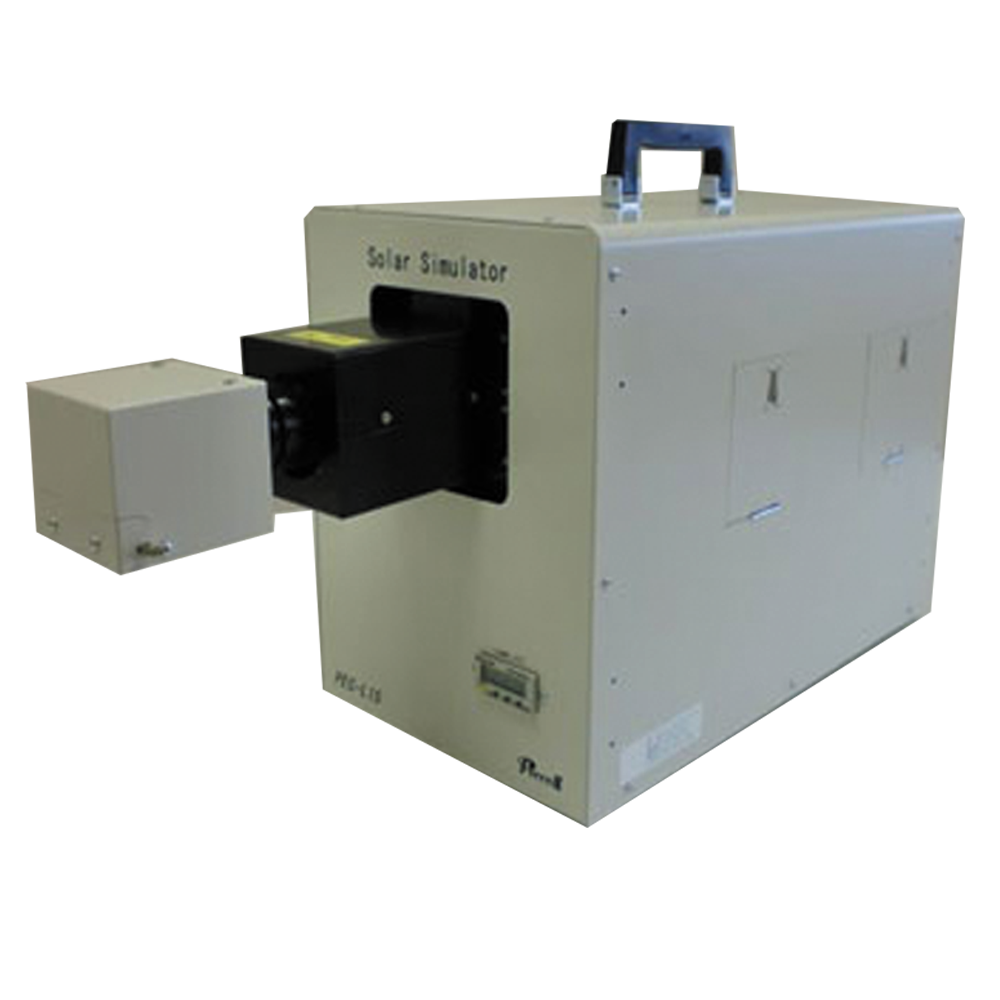

Large Area Illumination Solar Simulator PEC-L15

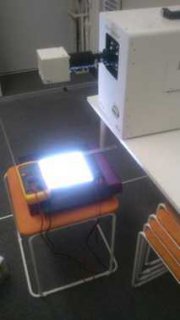

15 cm square illumination area on your Desktop
Brand: Peccell
Contact Us for better pricing.
Warranty Details
Features:
|
- |
Lamp House, Power Supply, Unit Body |
|
- |
Illumination head rotatable (Down, Up, Side) |
|
- |
5cm square Optical filter available |
|
- |
Fast Response Shutter (100 ms) |
|
- |
Weight just 16 kg |
|
- |
I/O port available |
Specification :
| Input power | AC200V~240V, Single Phase 50/60Hz |
| Power Consumption | 720W Max |
| Output current | DC18A ~ 33A |
| Xe lamp | 700W Short-arc Xe lamp |
| Average Lamp life | 1500 hours *1 |
| Illumination Area | 160 mm square (Effective Illumination area) |
| Irradiance | 800~1300W/m2 (AM 1.5G, in effective area) |
| Spectral Coincidence | 400~1100 nm (JIS C 8912), 350~750 nm (JIS C8933) |
| Uniformity | ±3% (Within Effective Area) |
| Long-term stability | 1%/h Max. (after 30 min turn of the lamp) |
| Incident light angle | < 15o (within Effective Area) |
| Spread angle | < 15o (within Effective Area) |
| Illumination distance | 390 ± 10 mm |
| Controller | Touch panel controller |
| Illumination shielding | Motor or air movement (air movement is option) |
| Stabilizing irradiance | High-speed analog feedback circuit |
| Lamp alignment | XYZ table |
| Temperature in use | 5~35° C (RT) |
| Humidity in use | 20~85% (RH, no condensation) |
| Dimensions | 250(W)×356(H)×690(D) mm |
| Weight | ca. 15 kg |
