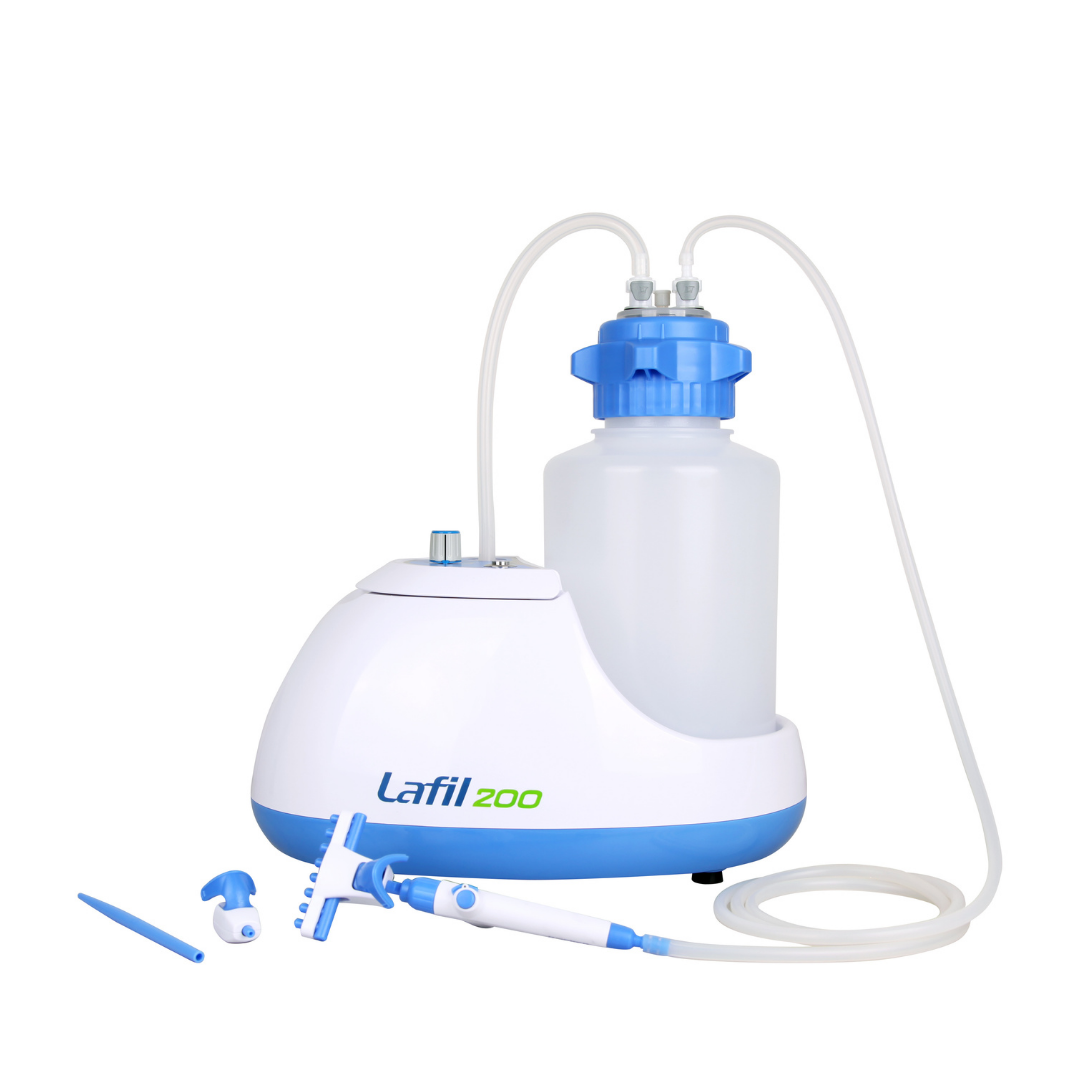

Lafil 200 - Vacuum Aspirator ( Waste Suction System )

Features

All in One, space-saving

Lafil 200 series suction system integrates vacuum source, waste bottle and suction kit into single one system. Saves 50% bench space.

Large volume, time-saving

4L PP vacuum bottle is ideal for cell culture aspiration and reducing the number of times of emptying the waste bottle. (3.5L laboratory glass bottle is optional.)

Safe operation

(1) Quick-coupling connector helps remove vacuum bottle quickly and easily.

(2) Fence-like platform design prevents negligence from tipping over the waste bottle.

(3) Overflow protection prevents the liquid from overflowing when bottle is full.

No air pollution, maintenance free

Built-in oil free vacuum pump, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.

Specification

Vacuum range:

Lafil 200 - Plus / BioDolphin: 105 mbar

Lafil 200eco - Plus / BioDolphin: 880 ~ 370 mbar

Max. flow rate: 10 L/min

Aspiration rate: 17 mL/sec

Waste bottle: 4L PP vacuum bottle / 3.5L laboratory glass bottle (optional)

Comes with:

Plus

• Handle

• 1-channel tip adaptor (150 mm)

• 1-channel tip adaptor with ejector

• 8-channel tip adaptor with ejector

BioDolphin

• Handle

• 1-channel tip adaptor (50 mm)

• 1-channel tip adaptor (150 mm)

• 1-channel SS adaptor (40 mm)

• 1-channel SS adaptor (80 mm)

• 8-channel SS adaptor (40 mm)

• 1-channel tip adaptor with ejector

• 8-channel tip adaptor with ejector

• Rack
