Seed Germination Efficacy Testing

GRD-1 Temperature Gradient Plate

GRD-1 is a highly efficient bi-directional temperature gradient system for investigating responses to temperature shifts of seeds, small plants, insects, micro-organisms or any small component or material.

Pricing & Availability Download Catalogue

Contact Us for better pricing. Warranty Details

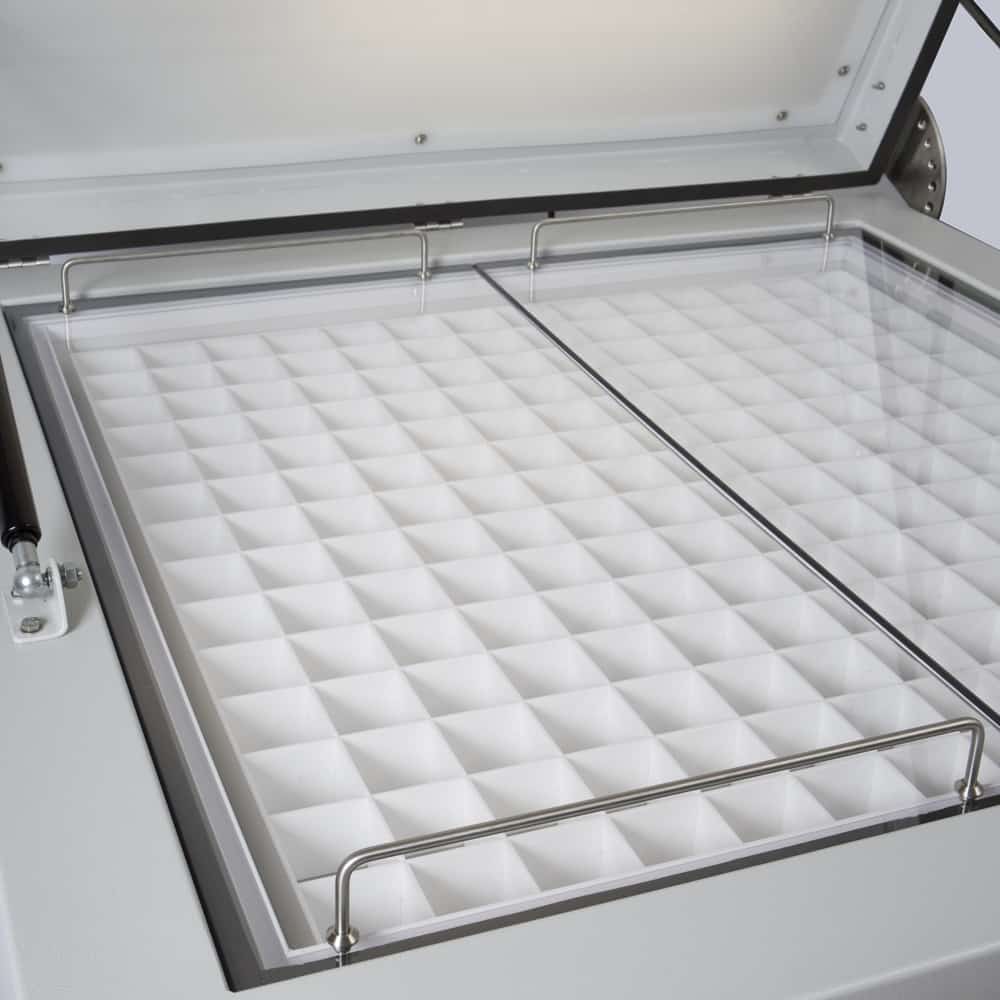

Removable Perspex grid effectively divides the working area into 196 miniature incubators, each with a different temperature regime.
An adjustable timer controls the length of the two phases within the 24 hour cycle which automatically switches the gradient direction as programmed.
Multi-channel Squirrel data logger for recording time and temperature is included as standard.
Over temperature protection is provided on each edge by fixed temperature cut-outs
Fitted with wheels for easy manoeuvrability.
Bespoke light hoods including full spectrum LED’s are available on request
Built in Britain
1 year warranty

Specification :

Dimensions (WxDxH)	1020 x 1020 x 1030 mm
Weight	300 kg
Temperature Range (Cold Edges)	+5 to 30 °C
Temperature Range (Hot Edges)	+5 to 45 °C
Temperature Stability	0.5 °C
Digital Setting & Display Resolution	1.0 °C
Working Area	760 x 760 mm
