Filter Reaction Unit

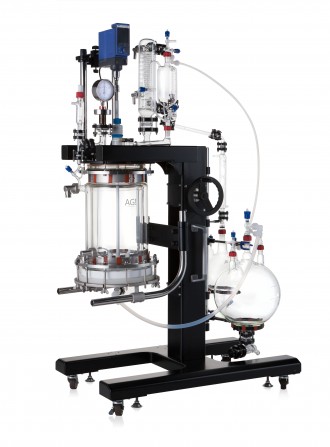

Filter Reactor Pilot-plant Fully Functional Stand

Reaction + Filtration = Filter Reactor. Volume available from 10L, 20L, 30L. It achieves Filtration and Reaction with the one apparatus. The best choice for the customer who needs efficient recovery. You can choose the standardized (Blue Label) or custom-made (Gold Label) product depending upon your needs.

Pricing & Availability

Contact Us for better pricing. Warranty Details

Integrated Built-in Hand Lift. Easy up-and-down operation thanks to the hand lift helps with cleaning of the vessel.

Easily Removable Filter House. Convenient for delivering filtrated material.

Full Jacket Design. Excellent in temperature control.

Includes Receiver, Piping, Pressure Gauge, Safety Valve and Reflux Divider.

Minimized Dead Space.

Specification :

Vessel Capacity	10, 20, 30 L
Filtration Area	317.3 ? (10 L), 514.7 ? (20 L), 711.6 ? (30 L)
Vessel Type	Double Wall ; Full Jacket
Operating Pressure	Full Vacuum to Atm
Operating Jacket Pressure	Up to +0.5 bar G (+0.05 Mpa)
Operating Temperature	-90°C to +200 °C (?T : 110°C)
