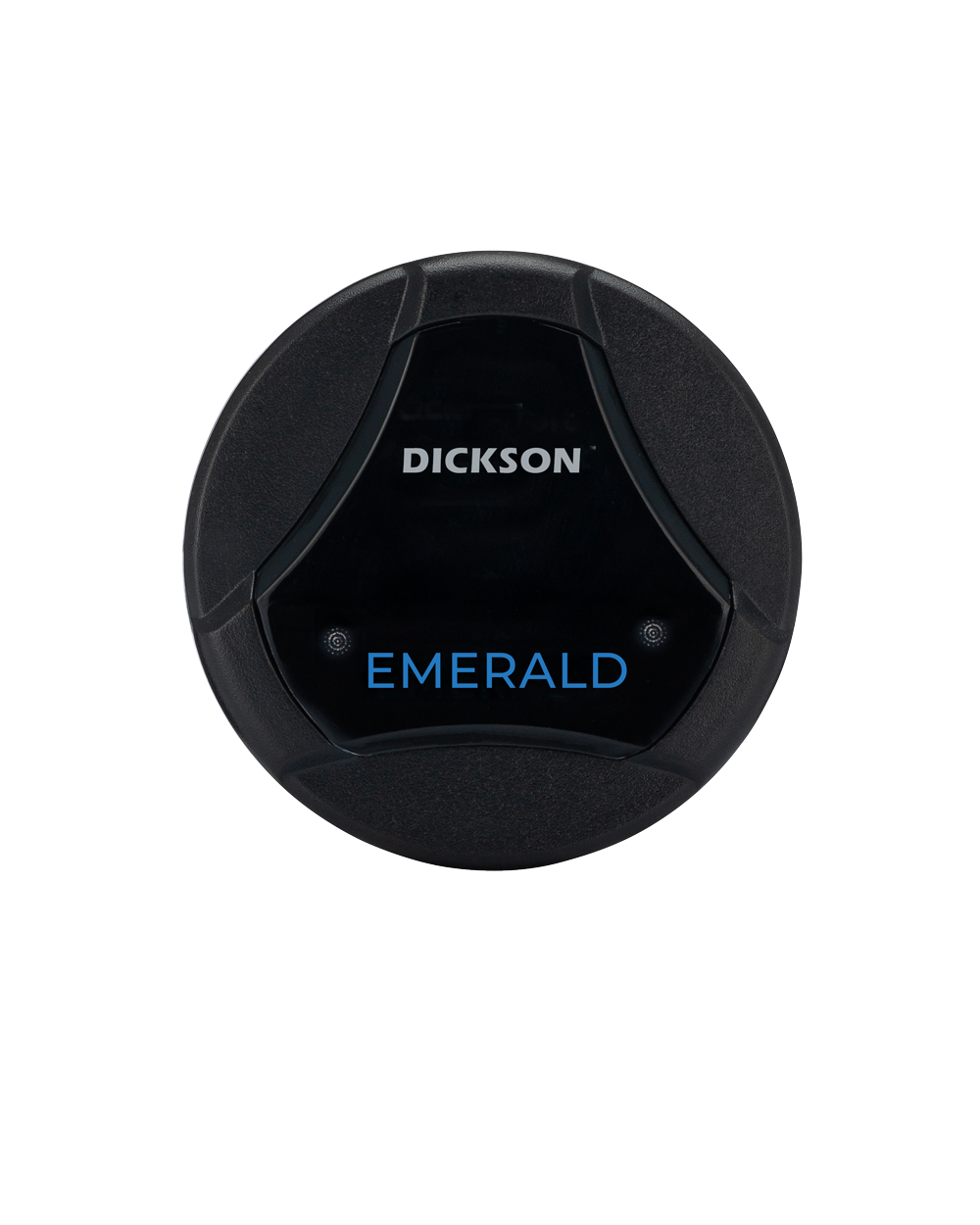

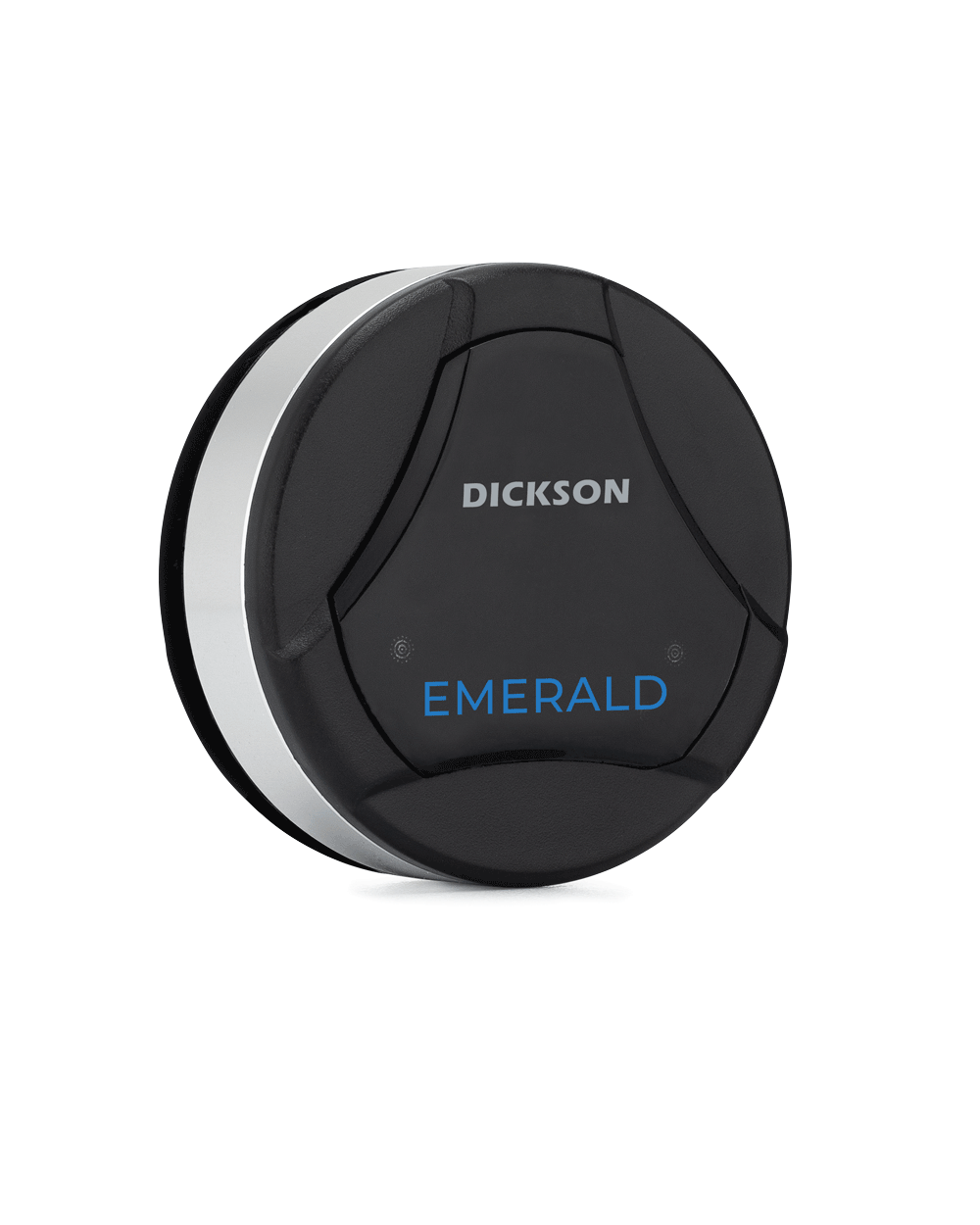

Emerald can be used as mobile data logger with programmable alarm limits and on-board memory for up to 16,000 readings, or as a wireless sensor paired with a Cobalt X data logger. For monitoring on the move, you can collect data at any time with the OCEAView™ Mobile app and forward it to the OCEAView web platform. As a wireless sensor for Cobalt X, Emerald enables cable-free placement in hard-to-reach areas.
Mobile data logger or wireless sensor for Cobalt X
Shock-resistance ideal for cold chain tracking on the go
Data access via smartphone, tablet, or OCEAView solution
Blueooth Low Energy for optimal battery life
Robust construction for use in harsh transport scenarios
Fits neatly inside nearly any type of container, compartment, or enclosure
Data access, monitoring, and alerts with OCEAView mobile or web application
Key Features
Monitoring applications: data logger for cold chain and transport; Cobalt X wireless sensor
Physical parameter: temperature
Supported sensors: internal temperature sensor, Pt100 standard sensors
Calibration options: ISO/IEC 17025 accredited (COFRAC); certified (non-accredited); or NIST-traceable
1 measurement point
Immediate or programmed data logging start options
1 high and 1 low alarm limit with programmable delay and on-board alarm management; visual alarm/status indicator; alerts via OCEAView; flexible start options
Data logging configuration and integration with OCEAView platform (Cloud or on-premises) via OCEAView Mobile; adjustable sensor reading interval
Specification :
.
END.EMR.P005 (Internal Sensor)
Temperature Range
-40°F to 185°F (-40°C to +85°C)
Operating Conditions
-40°F to 185°F (-40°C to +85°C); 0 to 90% relative humidity (non-condensing)
Accuracy
+/- 0.5°C
Sample Interval
15 seconds to 4 hours
Data Capacity
16,000
Connectivity
Bluetooth, NFC
Wireless Range
50 meters Line of Sight

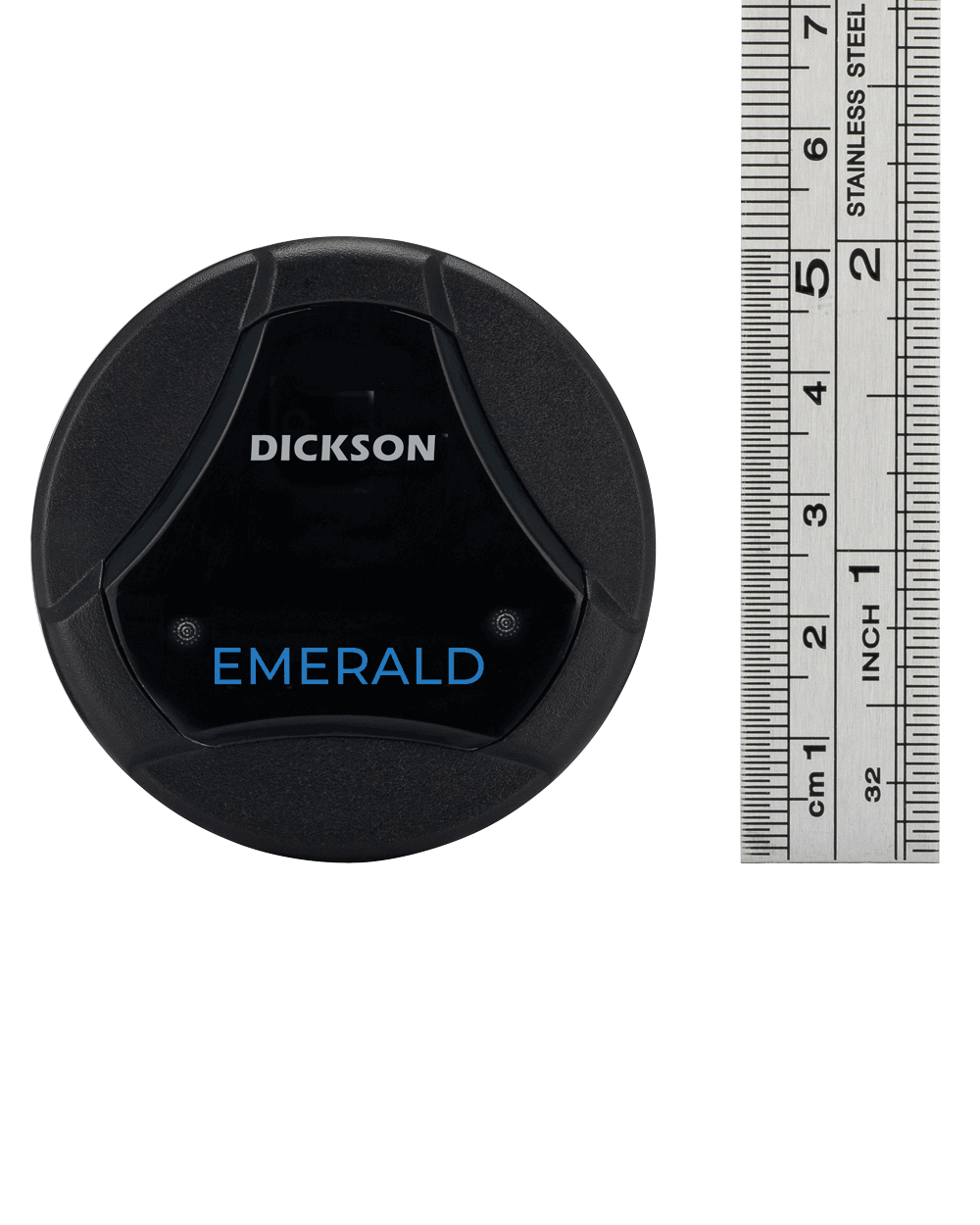

Dimensions
50 mm x 20 mm (Ø 1.9 x 0.8 in.)
Weight
48 g (11.5 oz.)
IP Rating
IP67
.
END.EMR.P006 (External Sensor)
Temperature Range
-58°F to 392°F (-50°C to +200°C) or -328°F to 122°F (-200°C to +50°C)
Operating Conditions
-40°F to 185°F (-40°C to +85°C); 0 to 90%, relative humidity (non-condensing)
