EDGE Automated Solvent Extraction System

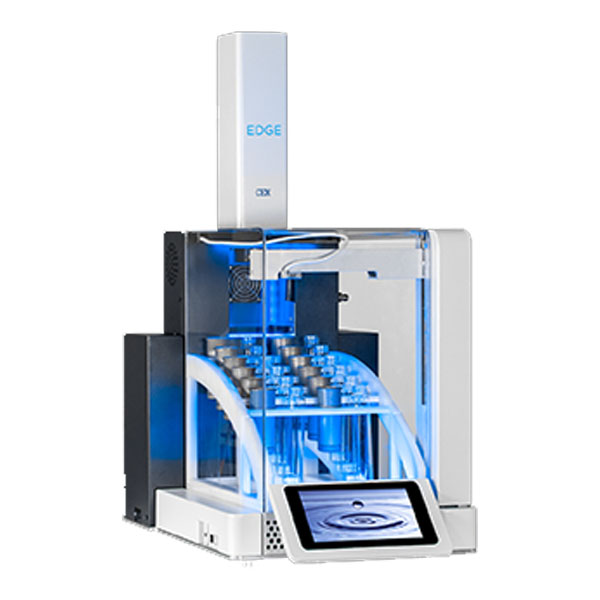

The EDGE® is an automated extraction system that’s faster than Soxhlet, more automated than QuEChERS, and simpler than other solvent extraction systems. Extract a wide range of samples and sizes at least 3 times faster than other pressurized fluid extractors. This includes filtering, cooling, and washing. The EDGE has revolutionized the extraction process for sample preparation.

Pricing & Availability Download Catalogue

Contact Us for better pricing. Warranty Details

Touch “start” to begin the automated process.

1. Select a Method

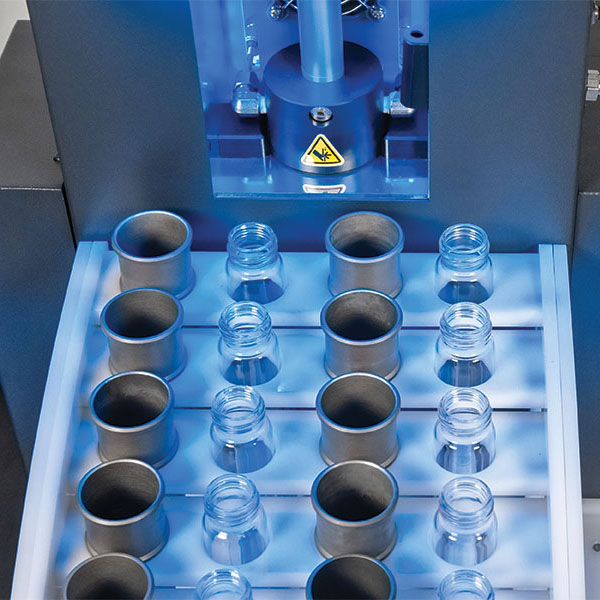

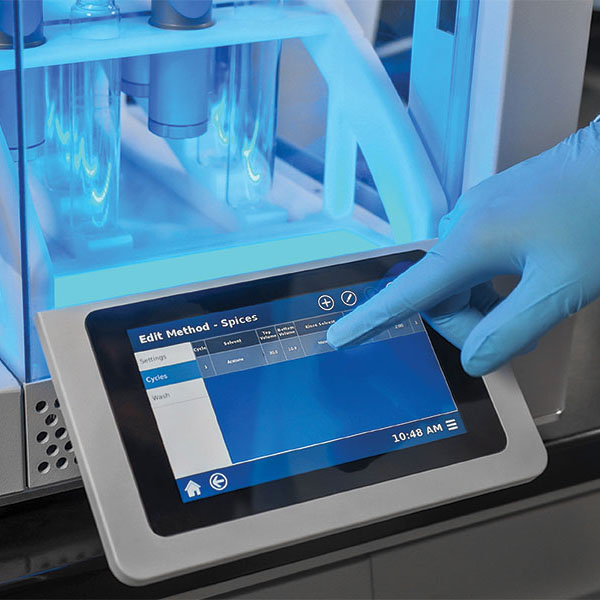

After a rack of Q-Cups containing samples are loaded into the EDGE, simply select the proper method, program the number of samples, and hit “Start”.

2. Autosampler Loads Sample

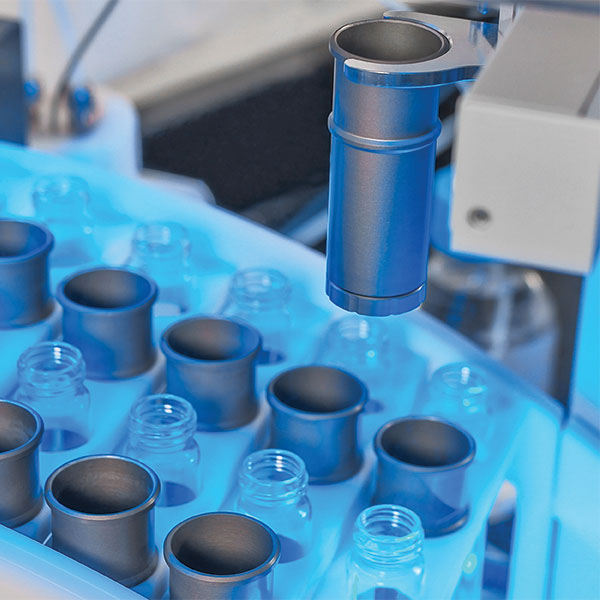

The Q-Cup is automatically loaded into the chamber by the autosampler. The pressure cap then creates a pressurized seal on the top of the Q-Cup.

3. Matrix is Extracted
Solvent is first added through the bottom to fill the gap between the chamber and Q-Cup, this aids in heat transfer. Then, the solvent is added through the top of the Q-Cup to wet the sample. As the chamber walls are heated, the pressure in the gap increases. This overcomes the pressure inside the Q-Cup, forcing the solvent to disperse into the sample.

4. Extract is Collected

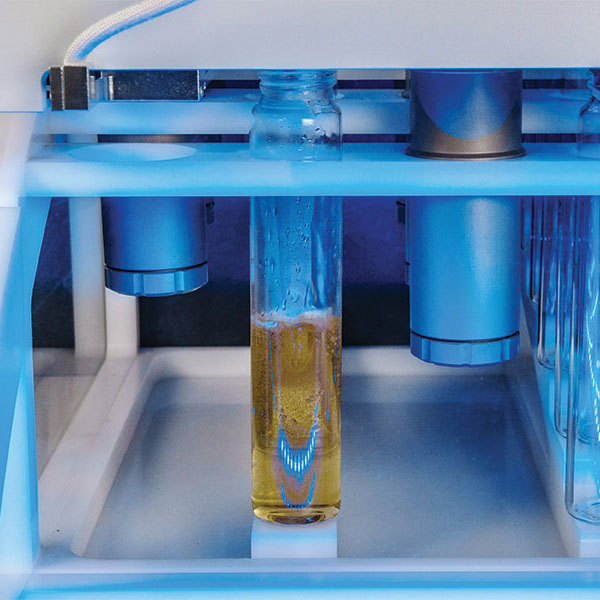

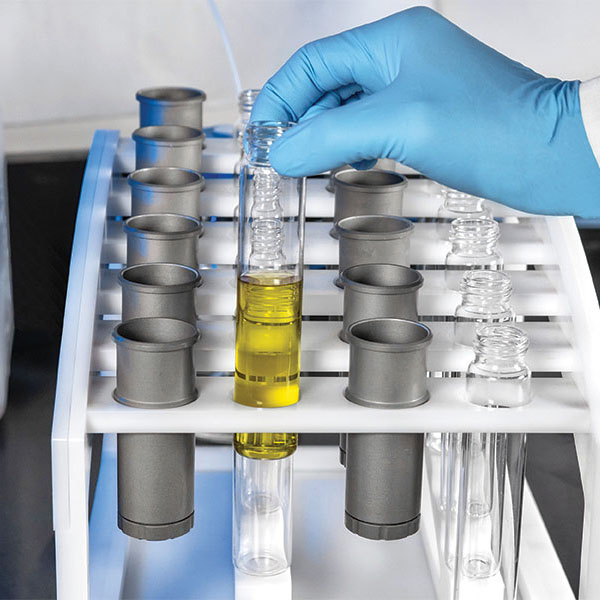

Once the sample reaches temperature, the solvent is dispended through the Q-Disc, the cooling coil, and into a collection vial.

A simple solution to a complicated problem.

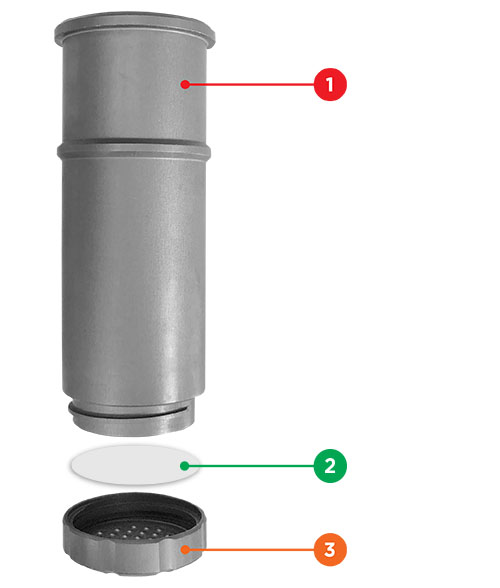

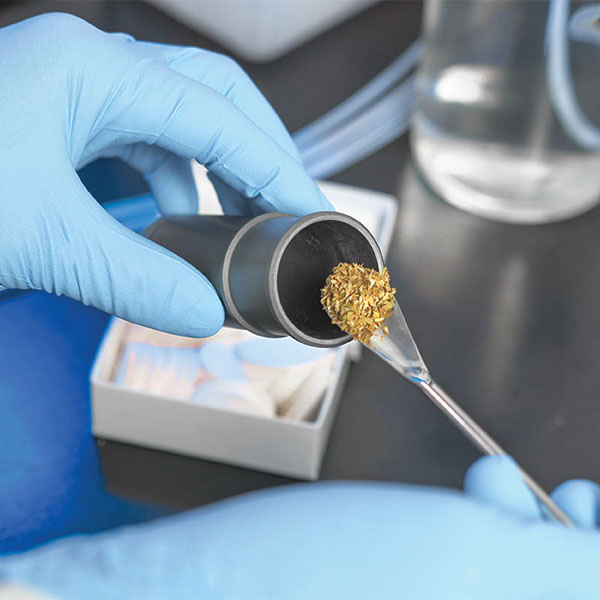

The aluminium Q-Cup sample holder consists of three easy-to-assemble pieces.
1. Q-Cup Cylinder
2. Q-Disc®
3. Threaded Bottom

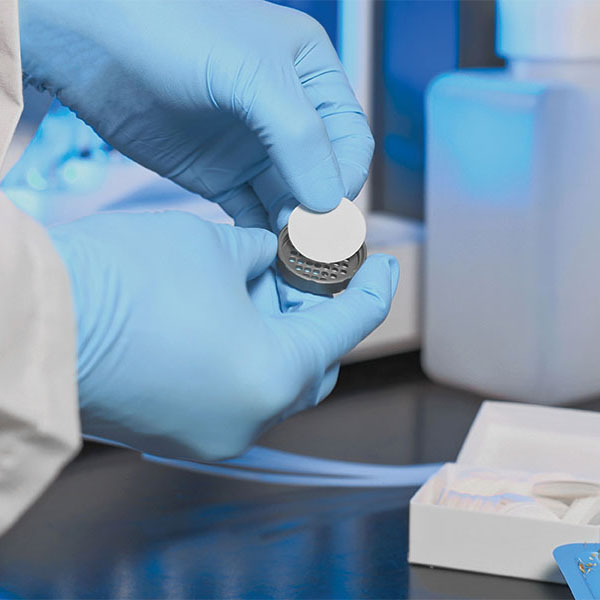

The open-top creates a dispersive effect which promotes rapid extraction and filtration. The disposable Q-Discs completely filters your sample prior to analysis. No additional steps are required. The simple design lends itself to easy cleaning.
