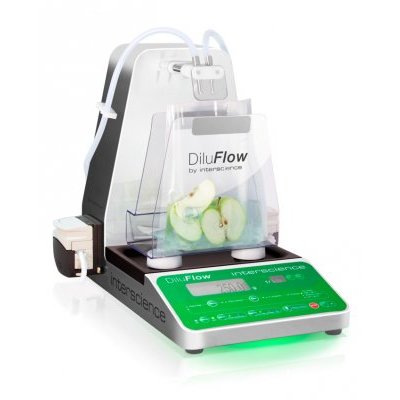

DiluFlow® Pro Gravimetric Dilutor 5 kg

DiluFlow® Pro Gravimetric Dilutor 5 kg

DiluFlow® Pro automatically dilutes in seconds a solid sample with the appropriate weight of diluent with traceability. With its robotic arm and high-speed process, it offers you the best solution for your dilutions! In compliance with ISO 7218, ISO 6887-1
Pricing & Availability Download Catalogue Interscience
Brand: Interscience
Contact Us for better pricing. Warranty Details

UNIQUE FEATURES
- Ultra low profile: Only 30 cm ! Perfect for a laminar flow.
- GeckoGrip System (Patented): holds the bag in all conditions
- Light Code: intuitive indicator of the status
- Removable DripTray (Patented)

FAST
- World’s fastest: only 9 s* to dispense 225 mL
- Distribution and weighing functions in 1
- Superior quality Watson Marlow® pumps

GREAT ERGONOMICS
- Robotic arm: drop the sample safely and easily
- Removable DripTray (Patented)
- Magnetic BagOpen® (Patented shape)

TRACEABILITY
- Traceability: Printer / Monitoring software (data export to ExcelTM, Open OfficeTM, CSV file, printer)

HIGH STANDARDS
- In compliance with ISO 7218, ISO 6887-1 and FDA BAM standards
- Made in France: ISO 9001 2008 standards

5. AVAILABLE IN:
- DiluFlow® Pro 5 kg, single pump (ref. 502 105)
- DiluFlow® Pro 5 kg, double pump, (ref. 502 205)

Specification :
Resolution up to 200 g 0.01 g
Weighing range 5000 g
Weighing accuracy 0 g to 100 g: ± 0.05 g / 100 g to 5000 g: ± 0.1%
Dilution factor 1/2 to 1/99
Dilution accuracy >98%
Dilution time for a 25 g sample diluted at 1/10 < 9 s**
Dilution time for a 375 g sample diluted at 1/10 < 80 s**
Distribution time for 90 mL < 7 s**
Distribution time for 225 mL < 10 s**
Max number of pumps 2 integrated
Dilution / Distribution mode Fast / Standard / Accurate
Traceability Printer / Monitoring software (data export to ExcelTM, Open OfficeTM, CSV file, printer)
Exported data Sample weight / Total weight / Dilution factor / Dilution accuracy / Right or left pump + with monitoring software: sample number / Name of operator / Date / Time
Connection RS232 output for printer / USB output for computer / Jack output for foot pedal
Power 100-240 V 50/60 Hz
Patents GeckoGrip system, Removable Driptray, Magnetic BagOpen® (patented shape)
