Rapid Nano-Patterning
Desktop Nanoimprint Tool CNI v2.0
Thermal and UV nanoimprint and imprinting in vacuum.
Brand: NIL Technology
Contact Us for better pricing.
Warranty Details

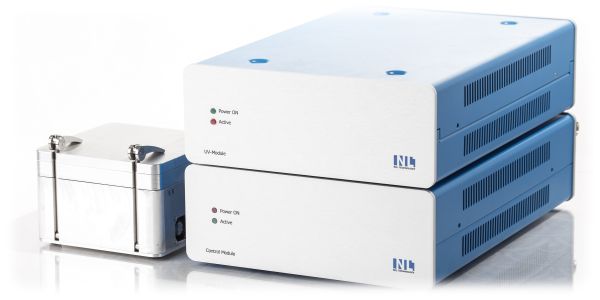

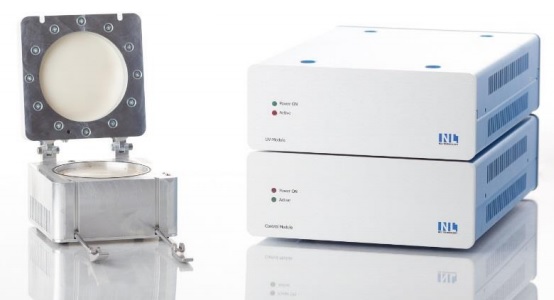

The CNI v2.0 is a very flexible nanoimprint tool. It offers thermal and UV nanoimprint and imprinting in vacuum if needed. The system is build from modules that makes it very flexible to configure for specific needs and to store away when not in use. It handles all shapes and formats of stamps and substrates up to Ø100 mm (4-inch). The system has manual loading and unloading of stamp and substrate but all processing are fully automatic and the dedicated software gives the user full control of the imprint process.
Specification :
| Featuring | Desktop nanoimprint tool |
| Easy replication of micro and nanoscale structures | |
| Thermal imprint up to 200C | |
| UV NIL with 365 nm exposure | |
| Imprint in vacuum (evacuation of imprint chamber down to 0.1 mbar) | |
| Imprint pressure up to 10 bar | |
| Very uniform temperature distribution and highly accurate read-out | |
| Full automatic control from laptop, easy process recipe editor with full flexibility and control, automatic data logging | |
| Up to 100 mm (round) formats | |
| Imprint chamber height of 20 mm | |
| Compact tool | |
| Plug-and-play | |
| Easy and intuitive to use | |
| Designed for R&D |
