CZY-8SA Lasting Adhesive Tester

Product Features

Multiple Test Mode & Customization for Controlled Temperature Test

• Time method and displacement method
• Standard test plates and weights ensure the accuracy of test data
• Automatic timing, inductance type large area sensor and fast locking functions guarantee the accuracy of test data
• Automatic statistics of maximum value, minimum value, average value and logarithmic reduction value
• Testing environment temperature and humidity curves are displayed and recorded automatically in real time for data comparison under the same conditions
• Unit conversions between °C and °F
• Customization is available for precise temperature controlled function for monitoring of test temperature and humidity
• Labthink’s unique automatic cooling technique can help minimize the environmental impact on the test temperature so that the standard test temperature, 23? and 38? can be controlled precisely

New Patented Intelligent Touch Operating System

• Industrial grade touch screen, one-button operation, user-friendly interface, remote upgrade and maintenance
• Chinese and English languages can be selected
• Automatic data storage and power failure memory functions to prevent data loss
• Storage up to 1200 test records
• Multi-level user privilege management, log in with password
• Micro-printer and USB data ports for data exporting and data transfer (optional)
• The instrument conforms to the requirements of GMP (optional)
• Labthink’s unique DataShiled^TM System for data management and connecting with information system (optional)

Test Principle

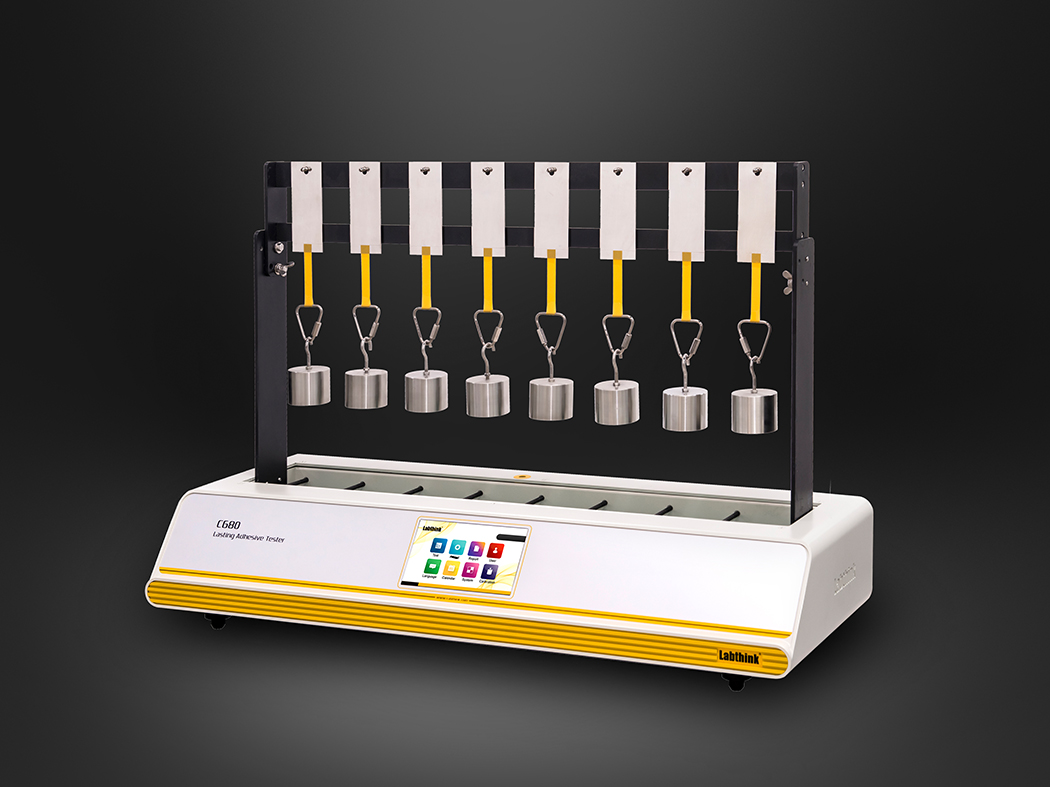

The test plate with adhesive specimen is vertically hanged on the stand and its bottom is attached with a standard weight. The lasting adhesive property can be obtained by measuring the displacement of specimen on vertical test plate or the time to failure at such load.

Test Standard

GB/T 4851-2014, ASTM D3654, JIS Z0237
