Plasma Cleaner
CUTE Plasma System

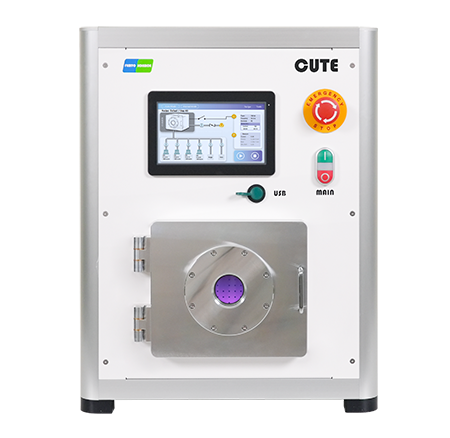

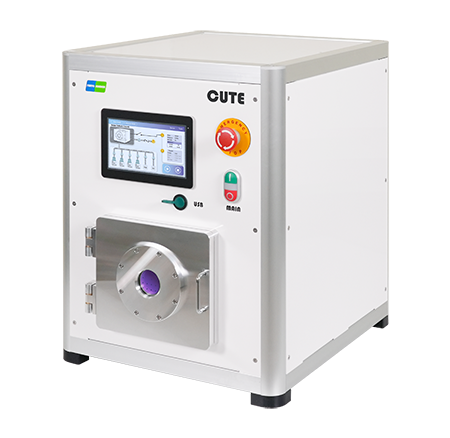

Plasma Surface Treatment System CUTE
Brand: Femto Science
Contact Us for better pricing.
Warranty Details

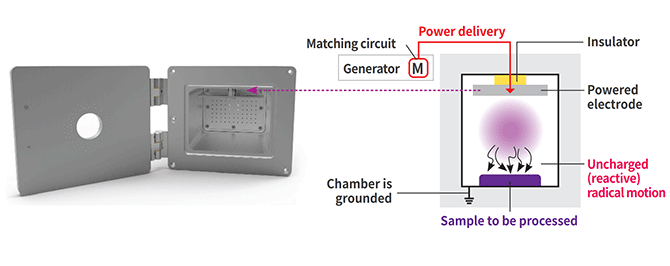

Process Chamber
- Plasma Mode : PE (Plasma Etching) Mode with single electrode
- Size : 140×200×110 (W×D×H, mm)
- Single Block Aluminum (Not welded, Minimized gas leak)
- Uniform gas flow design (Patent No. 10-1697205)
Generator
- Frequency : 20~100kHz (10kHz increment)
- Power: Max. 100W (Adjustable in 1W increment)
- Automatic Impedance Matching
- Process Monitoring and Control

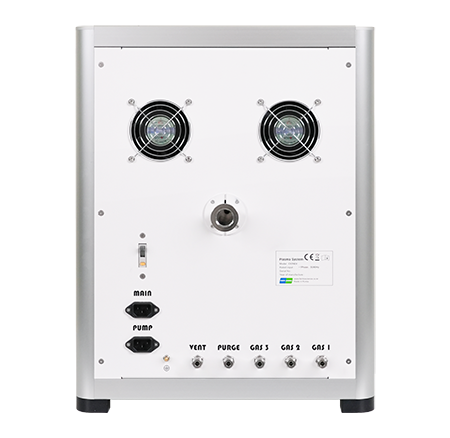

Gas flow module
- Maximum Number of gas channels : ×3 lines
- Gas flow control : High repeatability MFC
- Purge line : ×1 ea
- Vent line : ×1 ea
- MFC Flow rate : Max.100 sccm (1 sccm increment)
Controller
- DSP on board signal controller
- Automatic / Manual operation
- Interactive integrated software
- 7” Touchscreen PC & USB data transfer
- Saving and loading of process recipes
- Process graphs and alarm log loading
Specification :
| Process Mode | PE |
| Chamber | W.140 x D.200 x H.110 (mm) |
| Generator | 20~100kHz Max. 100W |
| MFC | Max. 100 sccm |
| Gauge Pressure | Atm ~ 5 x 10-4 Torr |
| Operation | Manual & Automatic |
| Geometry | W.440 x D.500 x H.560 (mm) |
