Controlled Rate Freezer

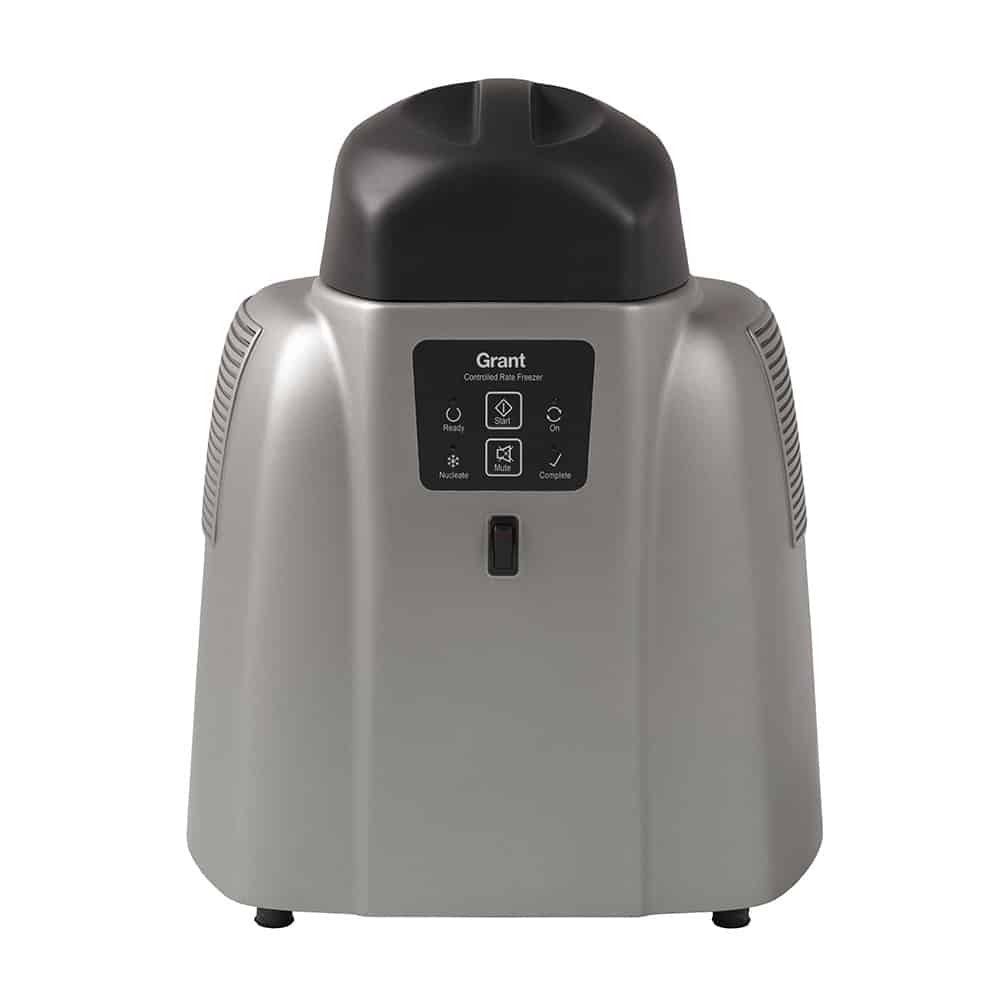

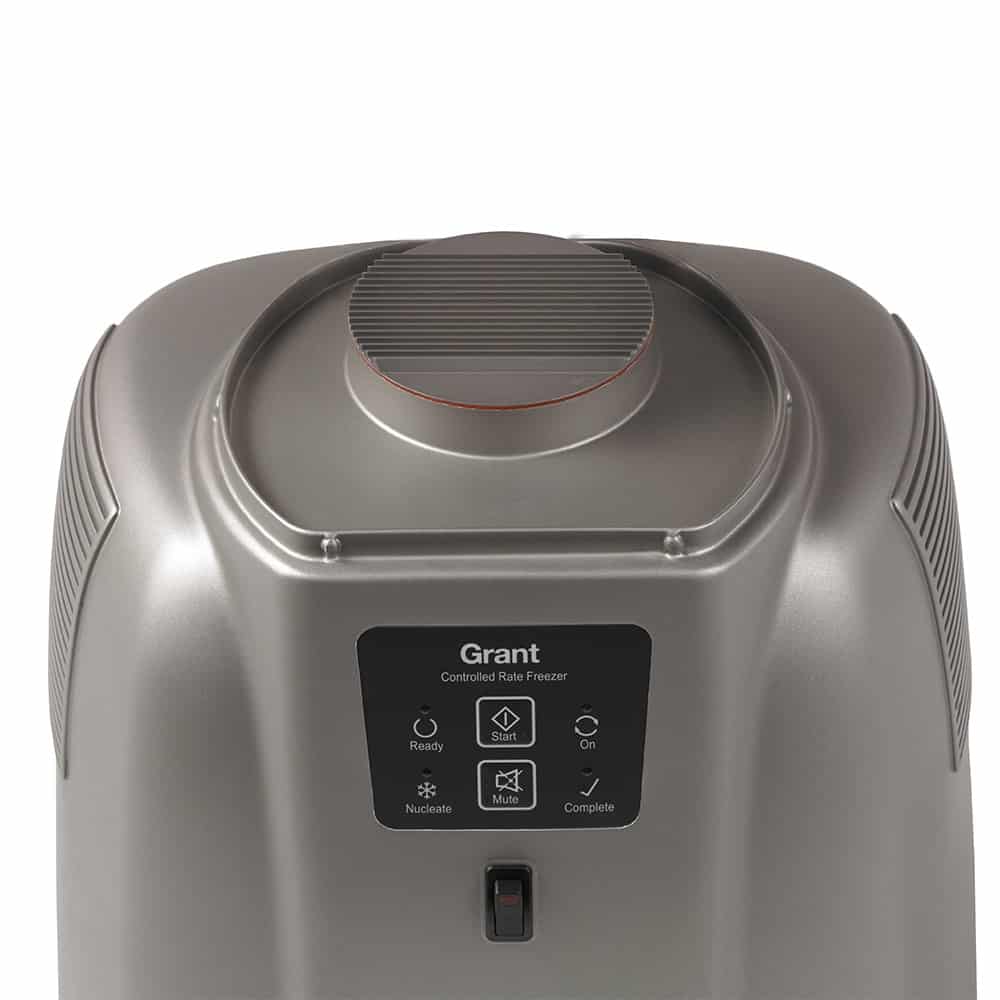

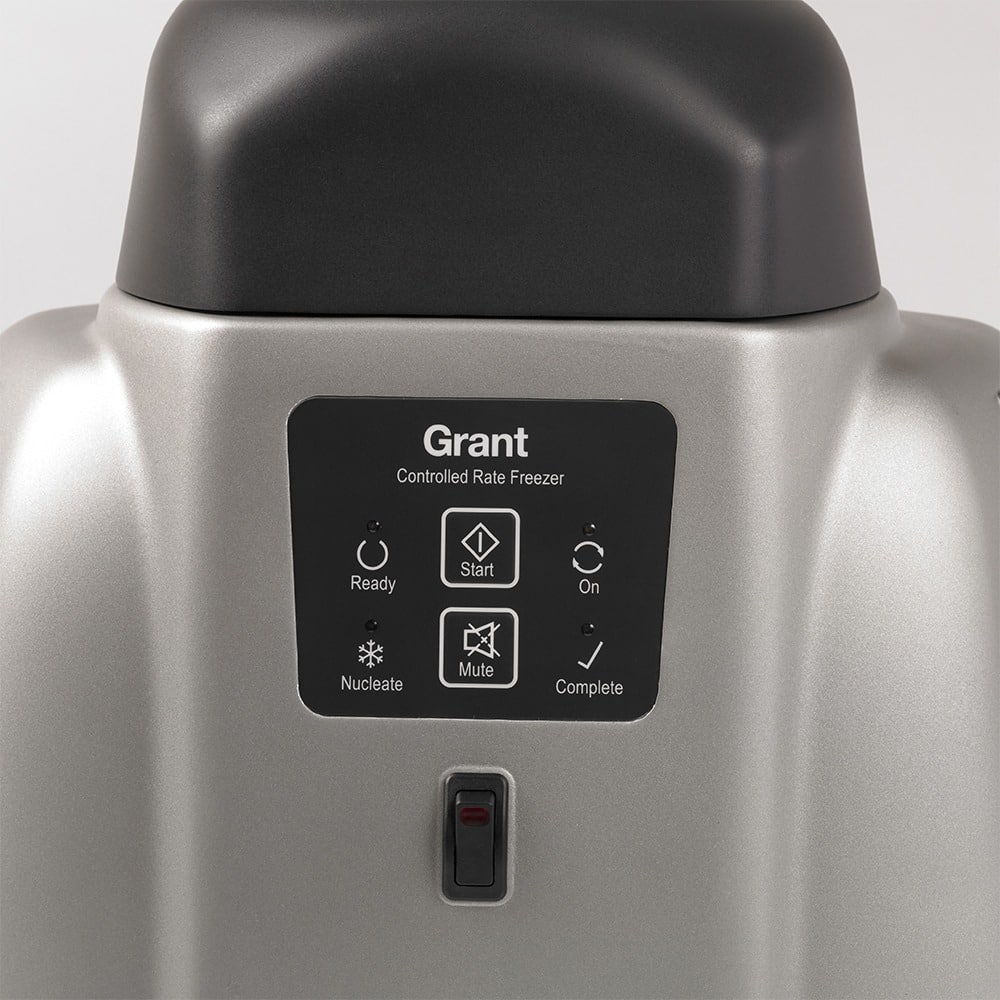

CRF-1 Liquid Nitrogen and Cryogen Rate Controlled Rate Freezer

CRF-1 brings accuracy, precision and reproducibility to biological cryopreservation where the cell viability is in concern. Suitable for human and animal IVF applications for cryopreservation of embryos, stem cells and spermatozoa.

Pricing & Availability Download Catalogue

Contact Us for better pricing. Warranty Details

Accurate and reproducible control of cooling rates and sample temperatures.
Easy to use and samples can be nucleated/seeded in-situ.
Linear and non-linear cooling profiles.
Low running costs: estimated at 1% of liquid nitrogen controlled rate freezing.
Temperature remains at -100°C at the end of cycle for straw applications until freezer is switched off.
Uninterruptible Power Supply (UPS): complete cycle run if power fails (supplied as an optional accessory)
CE marked (laboratory use)
Servicing and calibration available
A number of fixed plates available (standard straws, high security straws, cryovials, cryocyte bags & microplates)
Built in Britain
3 years warranty

Specification :

Dimensions (WxDxH)	264 x 367 x 445 mm
Weight	9.8 kg
Max. Plate Temperature	30 °C
Min. Plate Temperature	-80 or -100 °C (dependant on model)
Temperature Accuracy	0.5 °C
Temperature Stability	0.1 °C
Temperature Uniformity	1.0 °C
Max. Cooling Rate	10 °C/min
Max. Temperature Stabilisation Time	5 minutes
