Data Loggers & Sensors

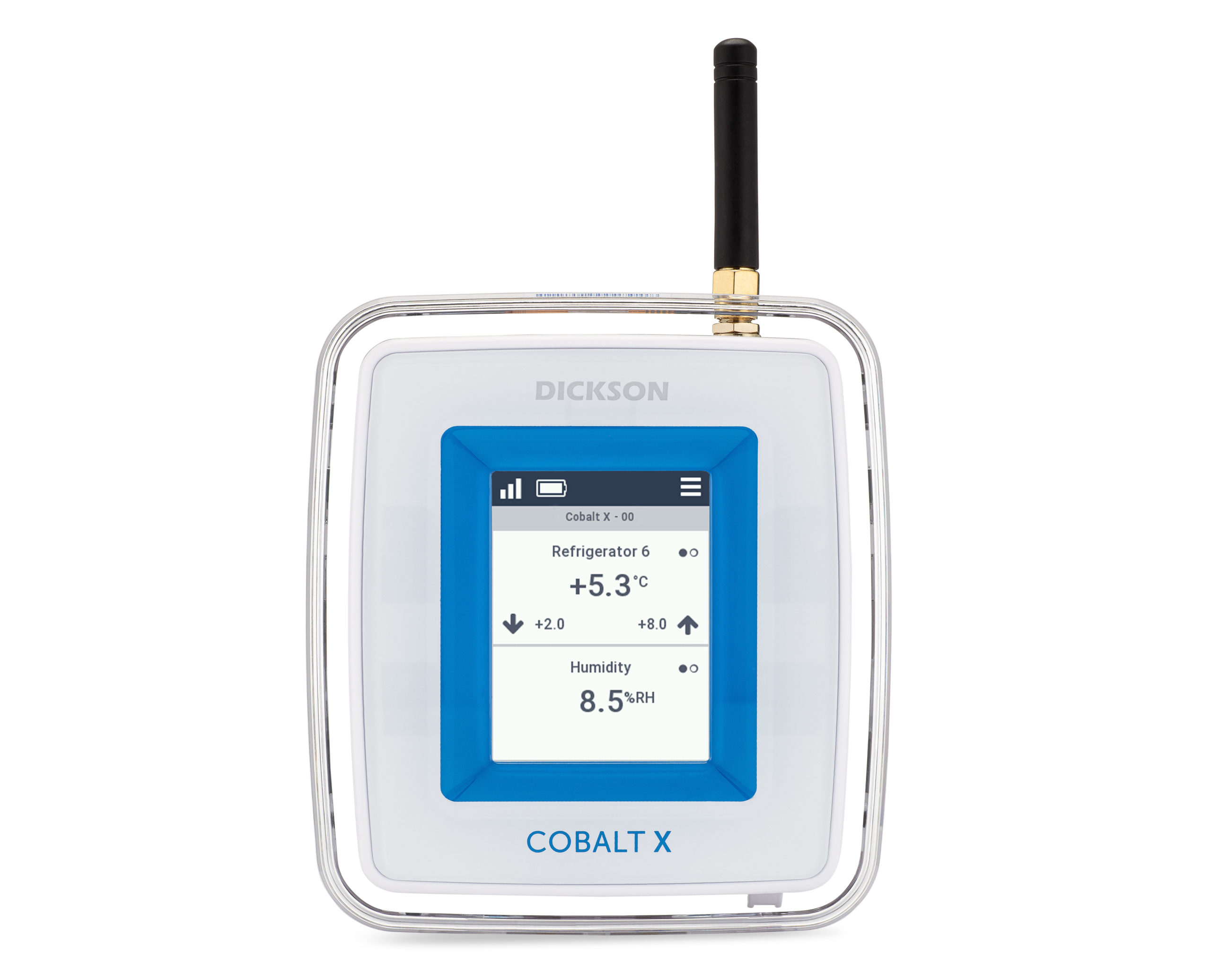

Cobalt X Data Logger

Cobalt X Data Logger

Full-featured touchscreen data logger with LoRaWAN and Bluetooth® connectivity, with support for up to four simultaneous wired and/or wireless sensors.
Pricing & Availability Download Catalogue Dickson
Brand: Dickson
Contact Us for better pricing. Warranty Details

Cobalt X data loggers are the flagship devices in the Dickson product line. Cobalt X1 supports data logging on up to two wired or wireless sensors simultaneously.

Readings are recorded in on-board memory, then transmitted to the OCEAView remote monitoring solution via LoRaWAN or Bluetooth Low Energy connectivity. Cobalt X offers interactive touch screen controls and highly visible alert indicators, with support for a wide variety of environmental sensors, including our Bluetooth enabled remote sensors.

  • Numerous wired and wireless sensors for monitoring critical environmental parameters (up to 4 at a time)
  • Ideal for the life sciences sector, including labs, hospitals, storage facilities, and manufacturing
  • Interactive touch-screen for fast access to setup, information, and alarm acknowledgement
  • Fully integrated with OCEAView Cloud or on-premises monitoring solution with LoRaWAN or Bluetooth wireless connectivity

Key Features

  • Monitoring applications: refrigerators, freezers, ULT freezers, nitrogen tanks, water baths, ovens, CO2 incubators, autoclaves, cold rooms, cleanrooms, warehouses
  • Physical parameters: temperature, humidity, CO2, differential pressure, 4-20 mA, 0-5 V, 0-10 V, dry contact input, light
  • Supported sensors: all Smart-Sensors™, digital temperature sensors, Atlas/Emerald Bluetooth wireless sensors
  • Calibration options: ISO/IEC 17025 accredited (COFRAC); certified (non-accredited); or NIST-traceable; recalibration via sensor exchange
  • Cobalt X1: up to 2 measurement points, includes 1 x 1.5 m (4 ft) flat cable
  • 2.4” (6.1 cm) glove-compatible, color touch-screen for setup, synchronization with server, latest readings, alarm status, alarm acknowledgment with PIN code
  • Alarms indicated by flashing lights and buzzer (sound only when on AC power), and transmitted to OCEAView platform for fast user notification
  • 3 high & 3 low alarm limits with programmable delay for each limit and on-board alarm management
  • Temperature displayed in °C or °F
  • Full integration with OCEAView monitoring platform (Cloud or on-premises); data logging configuration handled via OCEAView; sensor reading interval adjustable for each measurement point



Specification :
Physical parameters Temperature • Humidity • CO2 • Di¦erential pressure • 4-20 mA • 0-5 V, 0-10 V • Dry contact input • Light
Supported sensors Digital temperature sensors, Pt100 Smart-Sensors, Temperature and humidity Smart-Sensor, Temperature, humidity, and CO2 Smart-Sensor, Di¦erential pressure Smart-Sensors, Universal Smart-Sensor, Dry contact cable, Emerald, Emerald + external Pt100 sensors, Atlas
Calibration options ISO/IEC 17025 (COFRAC) accredited • Certified (non-accredited) • NIST-traceable • Recalibration via sensor exchange
Measurement points Cobalt X1: up to 2 measurement points • Includes 1 x 1.5 m (4 ft) flat cable, Cobalt X2: up to 4 measurement points • Includes 2 x 1.5 m (4 ft) flat cables
Display & interface 2.4” (6.1 cm) glove-compatible, color touch-screen for setup, synchronization with server, latest readings, alarm status, alarm acknowledgment with PIN code • Temperature in °C or °F
Alarms Alarms indicated by flashing lights and buzzer (sound only when on AC power), and transmitted to OCEAView platform for fast user notification • 3 high & 3 low alarm limits (with programmable delay for each alarm limit)
Software Full integration with OCEAView monitoring platform (Cloud or on-premises) • Data logging setup handled via OCEAView • Sensor reading interval adjustable for each measurement point
Connectivity LoRaWAN long-range wireless technology, range up to about 15 km/10 miles L.O.S.(1) • LoRaWAN regional channel plans in ISM radio spectrum: EU868, US915, AS923-1, AS923-2, AS923-3, AS923-4, AU915, IN865, KR920 • Bluetooth Low Energy • Omnidirectional antenna
Data management 4,000 readings per measurement point (about 4 weeks of data with reading interval of 10 minutes) • Unlimited storage of uploaded data in OCEAView
Power 2 x Li-SOCl2 (LS17500) 3.6 V user-replaceable lithium batteries(2) • At least 1 year battery life (standard usage) • 5V power adapter (optional)
Operating conditions Standard data logger: 0 °C to +50 °C (+32 °F to +122 °F); 0 to 90% RH (non-condensing) • With optional IP67 casing: -10 °C to +50 °C (+14 °F to +122 °F); 0 to 99.9% RH (non-condensing)
Storage conditions -10 °C to +60 °C (+14 °F to +140 °F) • 0 to 90% RH (non-condensing) • Optimal storage around 25 °C (77 °F)
Casing & dimensions ABS / ABC-PC casing • 100.8 x 110.8 x 29.6 mm (4.0 x 4.4 x 1.2 in.) • Weight with batteries: 180 g (6.4 oz.)
Protection index IP30 standard • Optional IP67 external case for protection against shocks, vibrations, cleaning operations
Mounting & installation Wall-mount kit for use with screws, magnet, or Velcro® • Optional locking with padlock
Certifications CE, FCC, IC, ACMA, ICASA
