Packaging Testing Instrument

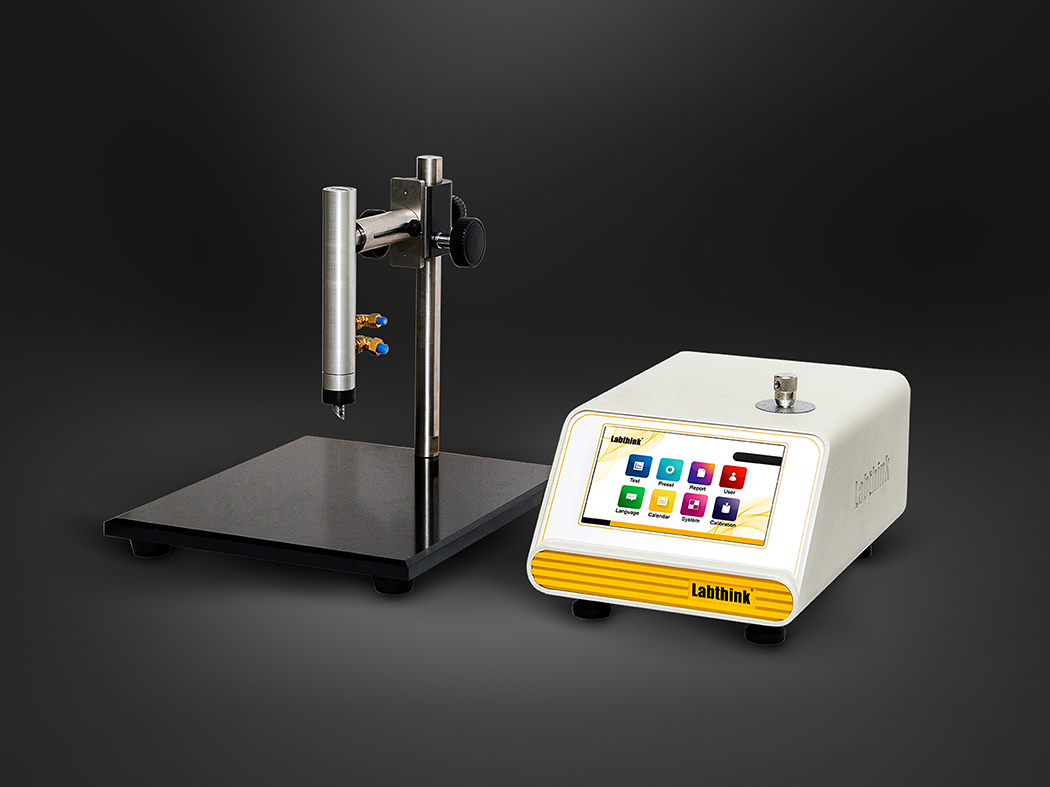

C660M Leak and Seal Strength Tester

C660M Leak and Seal Strength Tester

C660M Leak and Seal Strength Tester is professionally applicable to quantitative determination of seal strength, seal quality, burst pressure, seal integrity, compression resistance, torsion force and joint/disengaging force of various flexible packages, aseptic packages, plastic tamper-evident closures, flexible tubes, caps and other materials.
Pricing & Availability Download Catalogue Labthink
Brand: Labthink
Contact Us for better pricing. Warranty Details

Product Features

Multiple Test Modes & Automatic Testing Process

  • Positive pressure method
  • Multiple test modes including burst test, creep test, creep-to-failure test and pressure retaining test
  • Dual test methods of restraint distension and unrestraint distension at customer's choice
  • Real-time display of test curves and automatic statistics of test data
  • Test range can be selected for non-standard tests
  • Main components and parts are supplied by well-known global manufacturers, with guaranteed performance

Innovative Real-time Monitoring of Gas Inlet Flow

  • Real-time monitoring of gas inlet flow under high pressure ensures the uniform testing condition during testing process
  • High repeatability of test data

Brand New Patented Intelligent Touch Operating System

  • Industrial grade touch screen, one-button operation, simplified operating interface, remote upgrade and maintenance
  • Chinese and English operating interface
  • Automatic data storage and power failure memory to prevent data loss
  • Storage up to 1200 test records
  • Multiple-level user management and login with password
  • Micro-printer and USB ports for data transmission (optional)
  • The instrument conforms to the requirements of GMP (optional)
  • Labthink’s unique DataShiledTM System for data management and connecting with information system (optional)

Test Standard

ISO 11607-1, ISO 11607-2, GB/T 10440, GB 18454, GB 19741, GB 17447, ASTM F1140, ASTM F2054, GB/T 17876, GB/T 10004, BB/T 0025, QB/T 1871, YBB 00252005, YBB 00162002

Specification :
Test Range 0 ~ 600 KPa; 0 ~ 87.0 psi (standard), 0 ~ 1.6 MPa; 0 ~ 232.1 psi (optional)
Resolution 0.1 KPa / 0.01 psi
Pressure Accuracy ±0.25%FS
Gas Injection Head ?10 mm (standard) ?4 mm, ?1.6 mm (optional)
Gas Flow Rate 0.01~10L/min
Pressure Retaining Time 0.1s ~ 999999.9 s
Gas Supply Air
Gas Supply Pressure 0.6MPa ~ 0.7MPa (87psi ~ 101psi)
Port Size ?8 mm PU Tubing
Instrument Dimension 334 mm (L) x 230 mm (W) x 200 mm (H)
Test Frame Size 305 mm (L) x 356 mm (W) x 338 mm(H)
Power Supply 220VAC±10% 50Hz / 120VAC±10% 60Hz
Net Weight 8Kg (Instrument) 16Kg (Pedestal)
