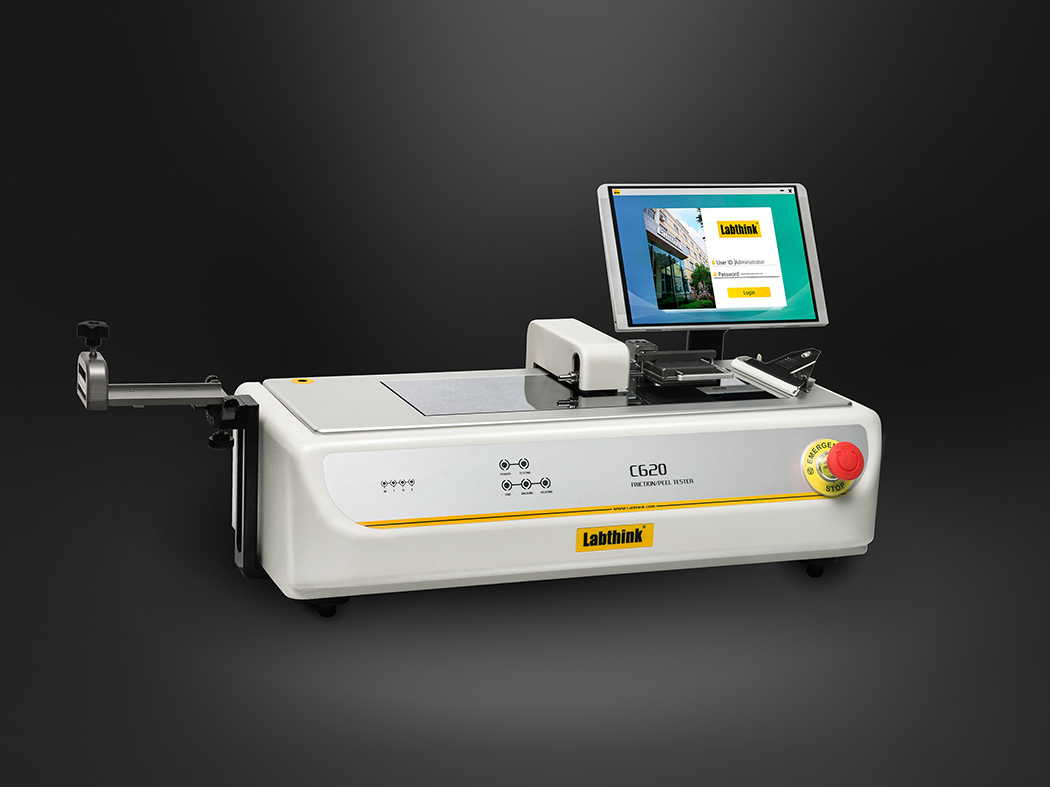

C620H Friction / Peel Tester

C620H Friction / Peel Tester

C620H Friction / Peel Tester can be used to test coefficient of static and kinetic friction of plastic films, sheets, foils, paper, cardboard, woven bags, fabric (fabric style test), metal-plastic composite strip/belt for communication cable, convey belt and textile, as well as peel strength test of adhesive laminated products, medical adhesive bandage, release paper and protection films.
Pricing & Availability Download Catalogue Labthink
Brand: Labthink
Contact Us for better pricing. Warranty Details

Product Features

Innovative Design of Automatic Lifting of Sled & Upgraded Testing Accuracy and Repeatability

  • Two test modes are available i.e. coefficient of friction and peel test
  • Innovative automatic lifting of sled ensures accurate still time of the sled and guarantees the high repeatability of coefficient of friction test results
  • The sliding plane and the sled are treated by degaussing and remanence detection which effectively reduce the system errors
  • Wide range and high-precision of automatic temperature control system to support tests at different temperatures
  • Force measuring system is supplied by global well-known supplier, the testing accuracy is higher than 0.5%FS, with better repeatability, multiple test ranges for choice
  • Intelligent designs including position restriction, overload protection and auto reset guarantee the safe operation
  • The instrument conforms to multiple ISO, ASTM and GB standards

High-end Easy-to-Use Embedded Computer Controlled System

  • Large touch screen tablet is easy to view and operate
  • Brand new software which is easy to use simplifies the testing operations
  • The instrument supports comparative analysis of group of test data, with unit conversion features
  • USB ports and net port for data transmission and external connection
  • The instrument conforms to the requirements of GMP (optional)
  • Labthink’s unique data security system,separates the test data from the computer to avoid the risks caused by computer virus
  • Labthink’s unique DataShiledTM System for data management and connecting with information system (optional)

Test Standard

ISO 8295, ISO 8510-2, ASTM D1894, ASTM D4917, ASTM D3330, TAPPI T816, TAPPI T549, GB 10006,GB/T 2790,GB/T 2791,GB/T 2792
