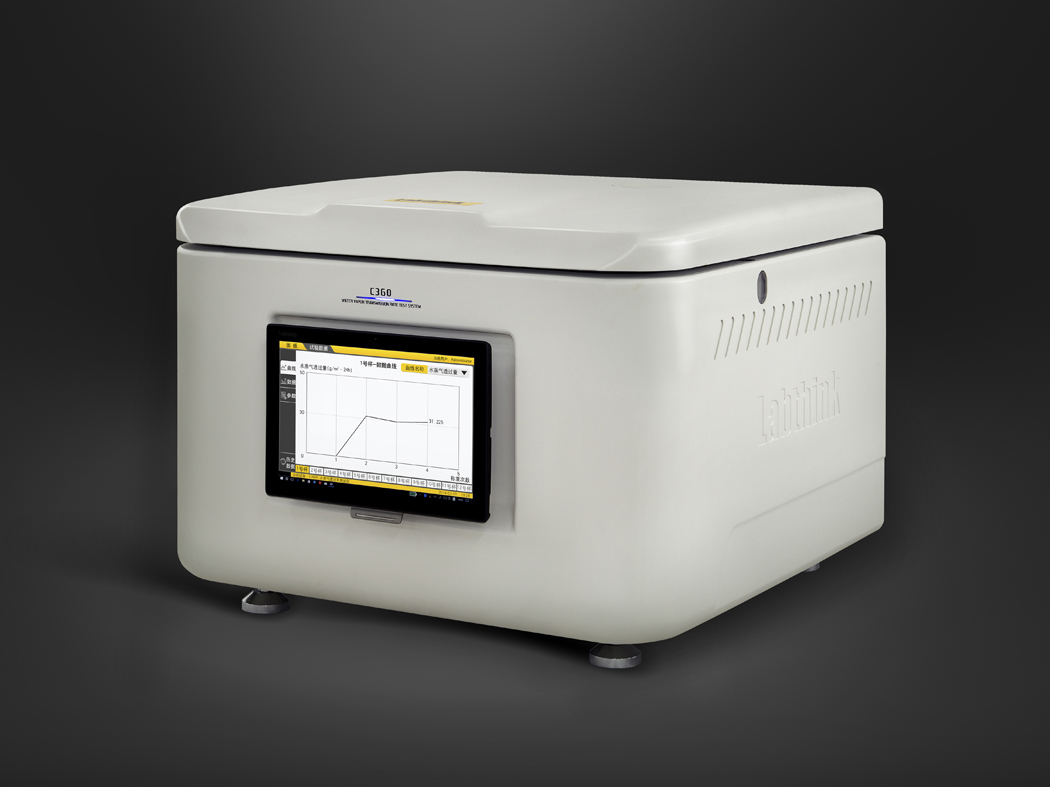

C360H Water Vapor Transmission Rate Test System

The instrument features Labthink’s patented test chamber design with multiple test dishes. C360H is equipped with precision made test dishes, highly accurate balance, embedded professional software which supports automatic controlling of temperature, humidity and flow rate precisely and guarantees the testing sensitivity and repeatability of the test results. C360H is applicable to determination of water vapor permeability of plastic films, sheeting, paper, packages and other packaging materials in food, pharmaceutical, medical apparatus, building materials and consumer goods, etc.

High Precision

• Patented test chamber and test dishes with advanced fluid dynamics and thermodynamic designs.
• Labthink’s proprietary thermostat technology ensures that the test chamber is precisely temperature controlled and remains stable throughout the test.
• Precise and scientific regulation and calculation of testing conditions.

High Efficiency

• 12 test stations
• Supports test modes of desiccant method and water method

Labor Saving

• Automatic humidity and flow rate controlling.
• Desiccator requires no replacement of inner core.
• High-efficiency water vapor generator.

Simplified Operation

• 12’’ touch-screen pad powered by Windows^TM 10 operating system
• Fast automatic testing process
• Optional DataShield^TM software and accessories for automatic data management

Product Features

New Generation Test Chamber and Test Dishes
Patented test chamber and test dishes with advanced hydrodynamic and thermodynamic designs ensure the uniform flow rate over the specimen surface, stable temperature and humidity, creating a uniform and stable testing environment. As a result, the test duration is shortened and the test results will be more accurate.

Excellent Testing Abilities of High and Low Barrier Materials
The testing conditions will be regulated precisely in real time, which ensures the high testing accuracy and repeatability of high and low barrier materials.

Automatic Controlling of Temperature, Humidity and Air Velocity
Labthink’s proprietary thermostat technology ensures that the test chamber is precisely temperature controlled and remains stable throughout the test.
Air velocity is monitored and regulated in real time.
High-efficiency and mist-free automatic humidity regulator meets the requirements for long-term continuous tests.
It is unnecessary to replace the inner core of the desiccator, which can continuously work for 20,000 hours.

Easy-to-use and High-efficiency System
The automatic test mode, combined with the instrument features, eliminates the need for manual adjustments to quickly obtain accurate results, saving training costs and releasing staff from manual monitoring so that they are available for other tasks.

The professional test mode provides flexible and rich instrument control functions to meet individual scientific research needs.
Unique, optional DataShield^TM system facilitates centralized management of user data. It supports a variety of formats of exported data. Reliable security algorithms are used to prevent data leakage. It supports universal wired and wireless LAN, optional private wireless network and third-party software.

User-oriented Service Concept
Adhering to our user-oriented service concept, Labthink has created a customization system that provides flexible and comprehensive customization services for the accommodation of non-standard specimens and packages.

Test Principle

The test specimen is mounted in the test dish which contains water or desiccant inside. The test dish is placed in the test chamber with stable temperature, humidity and air flow. The water vapor permeates through the specimen and into the dry side. By measuring the weight changes of the test dish periodically, water vapor transmission rate and other parameters can be obtained.

Test Standards

ASTM E96, ASTM D1653, ISO 2528, TAPPI T464, DIN 53122-1, GB/T 1037, GB/T 16928, YBB 00092003-2015
