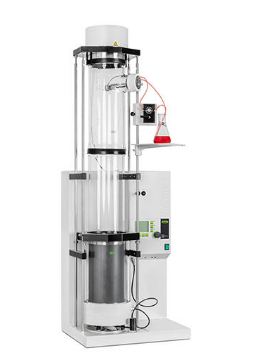

B-90 HP Nano Spray Dryer

Enabling

• Controlled and safe production of small particles (0.2-5 µm)
• Increase of surface contact area by reducing particle size
• Preservation of molecular activity due to gentle process conditions

Innovative

• 2^nd generation spray head for optimized productivity and handling
• Patented airflow system for gentle solvent evaporation and high recoveries
• Auto-Stop mode avoids the machine to run empty

 Economic

• Process very small volumes (< 2 mL) of sample quickly
• Low product loss due to efficient particle recovery
• Easily accessible application database and support

Patented heater module

The Heater Module produce a laminar stream of drying gas and provides an even heat distribution.

 User-friendly spray head

The spray head was designed to spray dry small samples (< 2 mL) and to be easy to assemble and to clean.

Efficient collecting electrode

The 17‘000 V tension applied to the collecting electrode allows the efficient recovery (up to 90%) of smallest particles.

Innovative nebulizers

Nebulizers in the sizes small, medium and large allow the finding of the perfect balance between small particles and high throughput (up to 200 mL/h).

Inert Loop B-295

Condenses organic solvents out of the stream of drying gas. For safe and clean handling of organic solvent based samples in closed loop.

Dehumidifier B-296 Nano

For the removal of humidity from the drying gas in open and closed loop mode.
