Peristaltic Pump

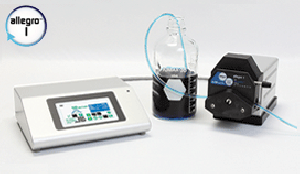

ALLEGRO™ I PERISTALTIC PUMP SYSTEM
SINGLE CHANNEL, MASTERFLEX® PUMP HEAD, DRIVE, AND CONTROLLER
The KD Scientific Allegro™ I Peristaltic Pump System allows maintenance free, continuous flow pumping of various liquids. The fluid contacts only the inside surface of the tubing negating concern for valves, O-rings or seals that might be incompatible with fluid being pumped.
Brand: KdScientific
Contact Us for better pricing.
Warranty Details
- One channel pump head
- Flow rates up to 1500 ml/min
- Accepts tubing ID sizes 0.8 mm (0.03 in) - 8.0 mm (0.32 in)
- Compatible with Masterflex® L/S® 13, L/S® 14, L/S® 16, L/S® 25, L/S® 17 and L/S® 18 tubing
- Clearly displays flow rate and total dispensed volume
- User configurable multi-step operation
- Dispenses in forward or reverse direction
- Adjustable flow rate while pump is running
- Stackable sealed remote pump drive with IP32 rating
- Selectable tubing table
- Automatic tubing break-in
- Automatic calibration procedures
- External connectivity with USB interface and I/O port
- Easy to maintain
Specification :
| Tubing Size (inner diameter min/max) | 0.8-8.0 mm |
| Tubing Durometer Range (min/max) | 55A-62A (Consult KD Scientific if using a higher durometer)* |
| Accuracy | ±1.0 % |
| Display | 4.3 in WQVGA TFT color display with touch screen |
| Non-Volatile Memory | Stores all settings |
| RS-485 | IEEE-1394, 6 pos |
| USB | Type B |
| Input/Output (I/O) | 15 pin D-Sub connector |
| Footswitch Connection | Mini phono jack |
| Pressure (max) | 30 psi |
| Drive Motor | 1.8° stepper motor |
| Motor Drive Control | Microprocessor with 1/16 microstepping |
| Step Rate Min | 27.5 sec/µstep |
| Step Rate Max | 50 µsec/µstep |
| Maximum RPM: | 375 RPM |
| Input Power | 30 VDC, 1.67 A using approved Allegro? power supply (included) |
| Input Power Connection | 2.5 ID x 5.5 mm OD male plug |
| Power Supply | 100-240 VAC, 50-60 Hz/30 VDC, 8 watts universal |
| Dimensions (Control Box) (W x D x H) | 22.9 x 19.7 x 7.6 cm |
| Dimensions (Pump Motor/Head) (W x D x H) | 11.5 x 24.1 x 11.8 cm |
| Weight | 2.66 Kg |
| Operating Temperature | 4°C to 40°C (40°F to 104°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Ingress Protection | IP32 (pump head & drive) |
| Storage Humidity | 20% to 80% RH, non condensing |
| Method of Operation | Continuous forward/continuous reverse |
| Regulatory Certifications | CE, ETL (UL & CSA), CB scheme, EU RoHS, WEEE |
