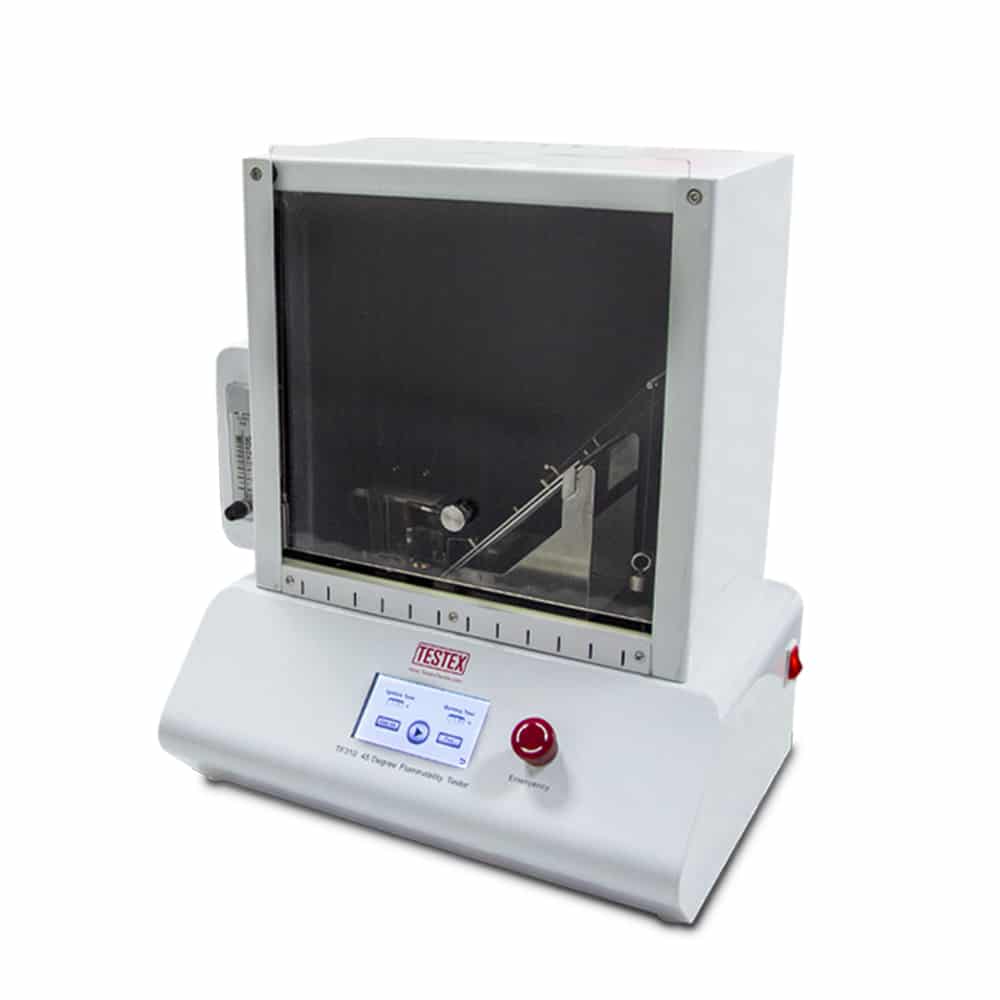

45 Degree Flammability Tester TF310
45 Degree Flammability Tester, is to determine the fabric flammability (fabric burning test) under controlled conditions, complies with standards like 16 CFR Part 1610, ASTM D1230, ASTM F2100.
Brand: Testex Instrument
Contact Us for better pricing.
Warranty Details
Features
- Automatic igniter is equipped to ensure the 45 degree fabric flammability tester safe and easy to operate.

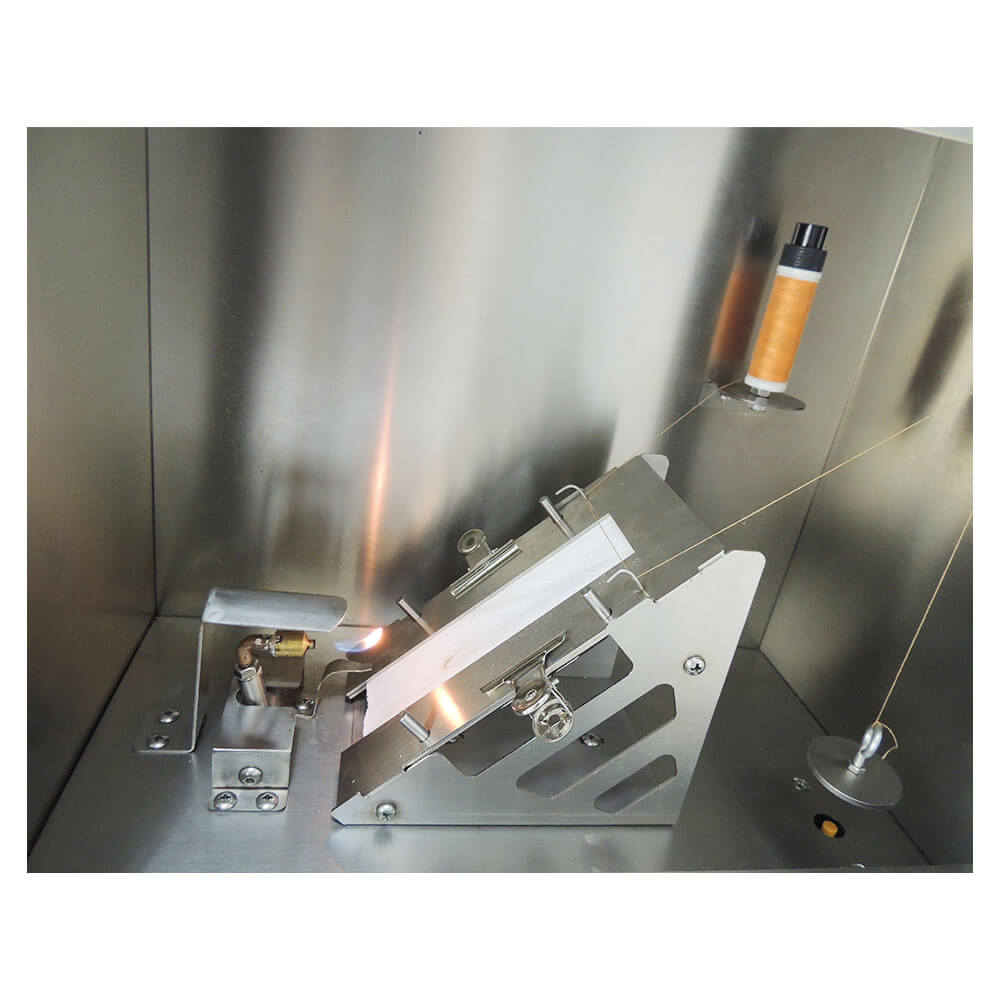

- Stainless steel test cabinet with glass observation panel provided with automatic timing of flame spread in 0.1-second increments from ignition.
Accesorries Included
- 1 Brushing device
- 5 sets of sample holder
Specification :
| Time display and accuracy | 0 ~ 999.9 s, 0.1 s |
| Ignition time | (1 ± 05) s |
| Dimension of holder | outside 205 *76 mm, interior 152 * 38 mm |
| Testing chamber size | 368 * 216 * 356 mm |
| Specimen size | 150 * 50 mm |
| Flame height | 16 mm (adjustable) |
| Angle of sample placement | 45° |
| Distance from nozzle to specimen | 8mm (adjustable) |
| Loading weight | 30 g |
| Power | 220/110 V, 50/60 Hz, 120 W |
| Weight | 36 Kg |
| Dimensions | 490 * 330 * 550 mm (L x W x H) |
| Packaging info. | 600 * 470 * 690 mm, 47 Kg |
| Standard | 16 CFR Part 1610, ASTM D1230, ASTM F2100 |
