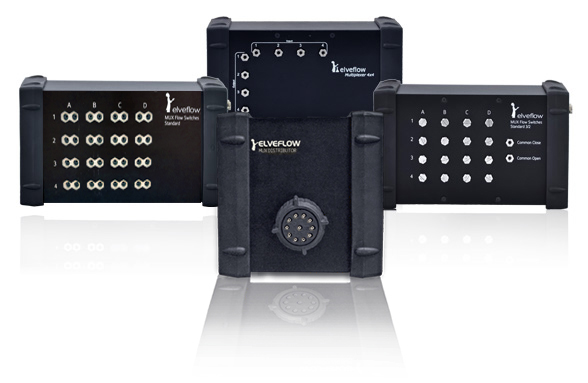

Microfluidic Flow Switch Matrices MUX

SKILLFUL INSTRUMENTS… WITH EXTENDED CAPABILITIES

Fast flow switch (25 ms) – 2400 switches/minute

ROCKER® valve technology (flow displacement < 10nL)

PEEK valve & Manifold

Clean fluids injection: no backflow

Low volume injection, sample volume as low as 50μL

>New possibilities The technology used in the Elveflow® MUX makes possible to achieve a 25 ms flow switch into your microfluidic system. This level of performance pushes the conventional experimental limits and offers you new possibilities.

>Complex Flow Patterns Our profile editor will allow you to easily program subtle valves patterns and to repeat a set of steps in a loop to automate the most sophisticated protocols.

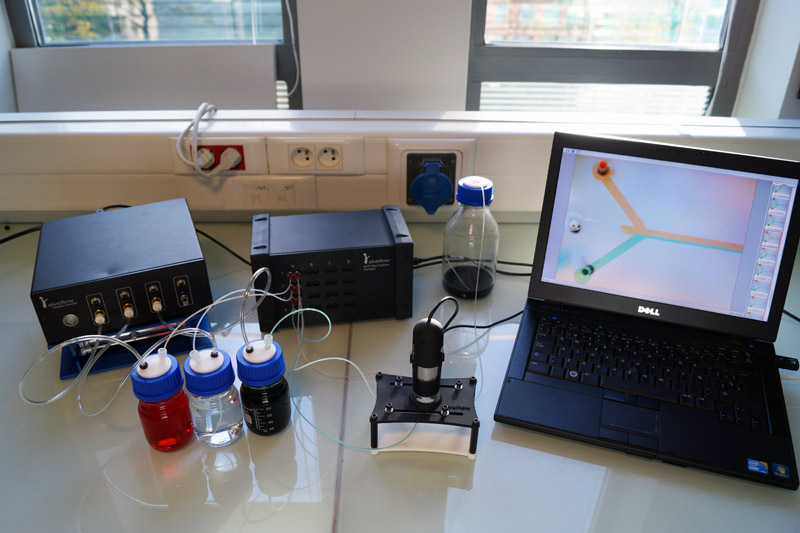

>Setup Synchronization The MUX offers a TTL triggers set to easily synchronize your instrument with any Elveflow® device, microscopes or mechanical shutter. Thus, you can have a full control of all the devices involved in your microfluidic experiment.

OPTION & CUSTOMIZATION

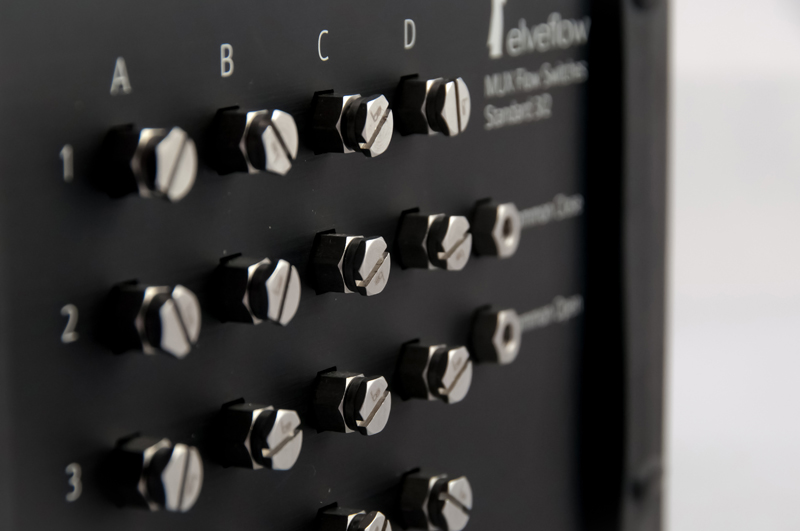

Choose the number of valves you need from 4 to 16 (up to 256 on special request) and the type of valves, unidirectional valves (2/2) for fast sample injection or bi-directional valves (3/2) for quake valves control.

• 2-way or 3-way valves
• From 4 To 256 Valves
• Upgrade your system at any time
• Fully customizable*
• OEM version available

SOFTWARE

Elveflow® instruments are built around a common application which facilitates navigation from one instrument to another. Our Smart Interface enables you to control your setup after a few minutes of training.

Synchronized valve closing

Contrary to other valve systems on the market, our communication protocols allow you to open and close your valves in a perfectly synchronized manner.
